EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A
DISASSEMBLY/ASSEMBLY Scanner Section 98
 When installing the Scanner FFC to the Lower Scanner
Housing, secure it and the ferrite core with double-sided tapes
at the specified positions. (refer to Figure 4-99)
 When installing the CIS Carrier Assy., put the Scanner
Timing Belt through the slit of the CIS Carrier Assy. (refer to
Figure 4-98)
 When installing the CIS Assy. to the CIS Carrier Assy.,
connect the Scanner FFC and route the FFC under the tab of
the CIS Assy. (refer to Figure 4-97)

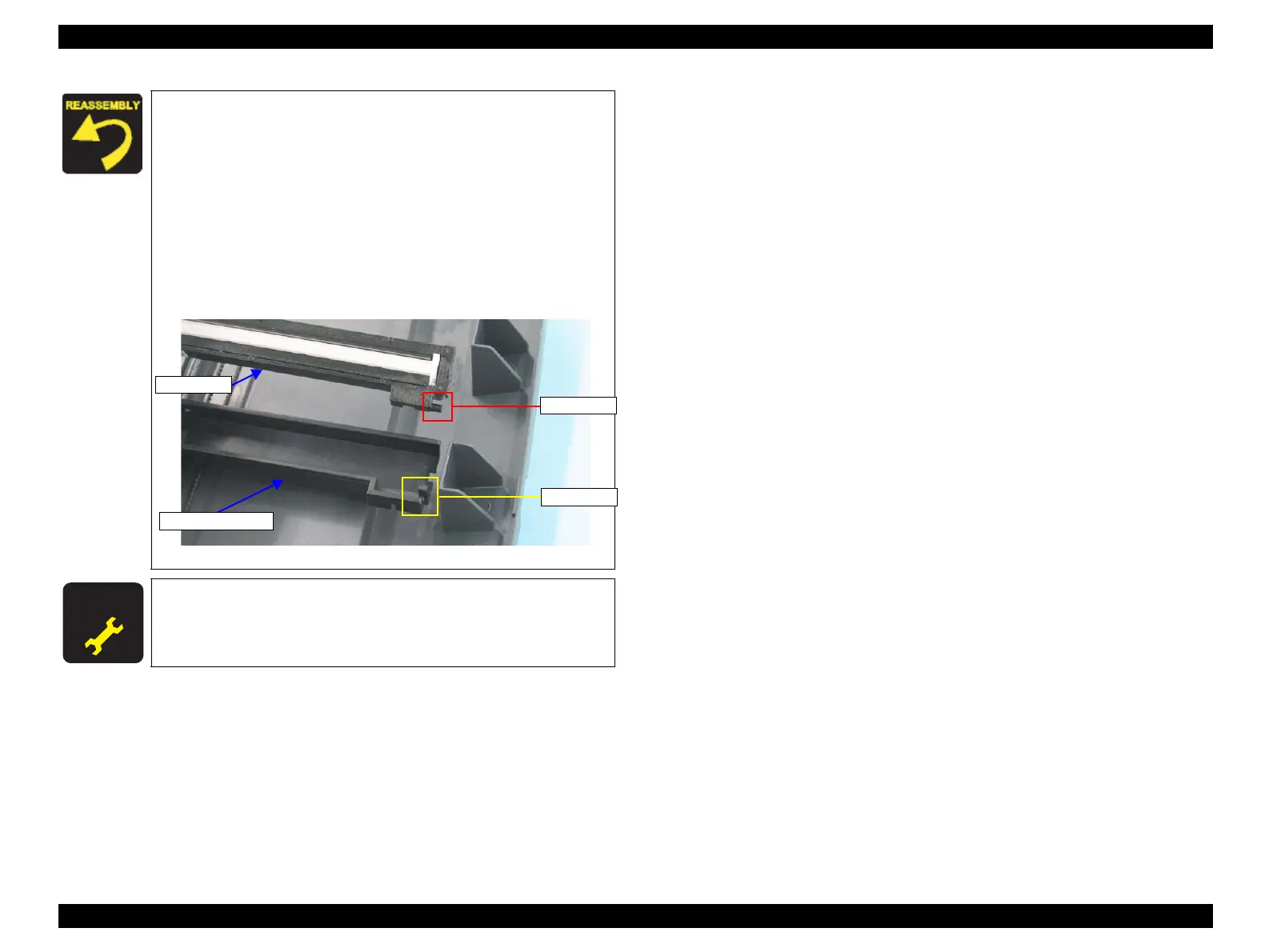

 When installing the CIS Assy. to the CIS Carrier Assy., match
the tab and the notch as shown below.
Figure 4-100. Installing CIS Assy. to CIS Carrier Assy.
A D J U S T M E N T
R E Q U I R E D
When the CIS Carrier Assy. is reassembled, perform the required
lubrication to the Guide Rail of the Lower Scanner Housing.
(Refer to Chapter 6 “ MAINTENANCE (p108)”)
Tab
Notch
CIS Carrier Assy.
CIS Assy.

Epson Stylus CX4300 Specifications

General

Technology	Inkjet
Functions	Print, Scan, Copy
Print Resolution (Black)	5760 x 1440 dpi
Print Resolution (Color)	5760 x 1440 dpi
Scanner Type	Flatbed
Scan Resolution	600 x 1200 dpi
Copy Speed (Color)	9 cpm
Connectivity	USB
Operating Systems	Windows, Mac
Printer Type	All-in-One
Paper Sizes	A4, A5, B5, Letter, Legal, Envelopes
Ink Cartridges	4 (Black, Cyan, Magenta, Yellow)
