4.4.8.19 Paper Pressing Unit
1. Remove the Color Measurement Device. (p325)
2. Remove the Mounter. (p327)
3. Remove the three screws that secure the shield plate, and remove the shield plate.
A) Silver, Phillips, Bind machine screw M3x6: three pieces

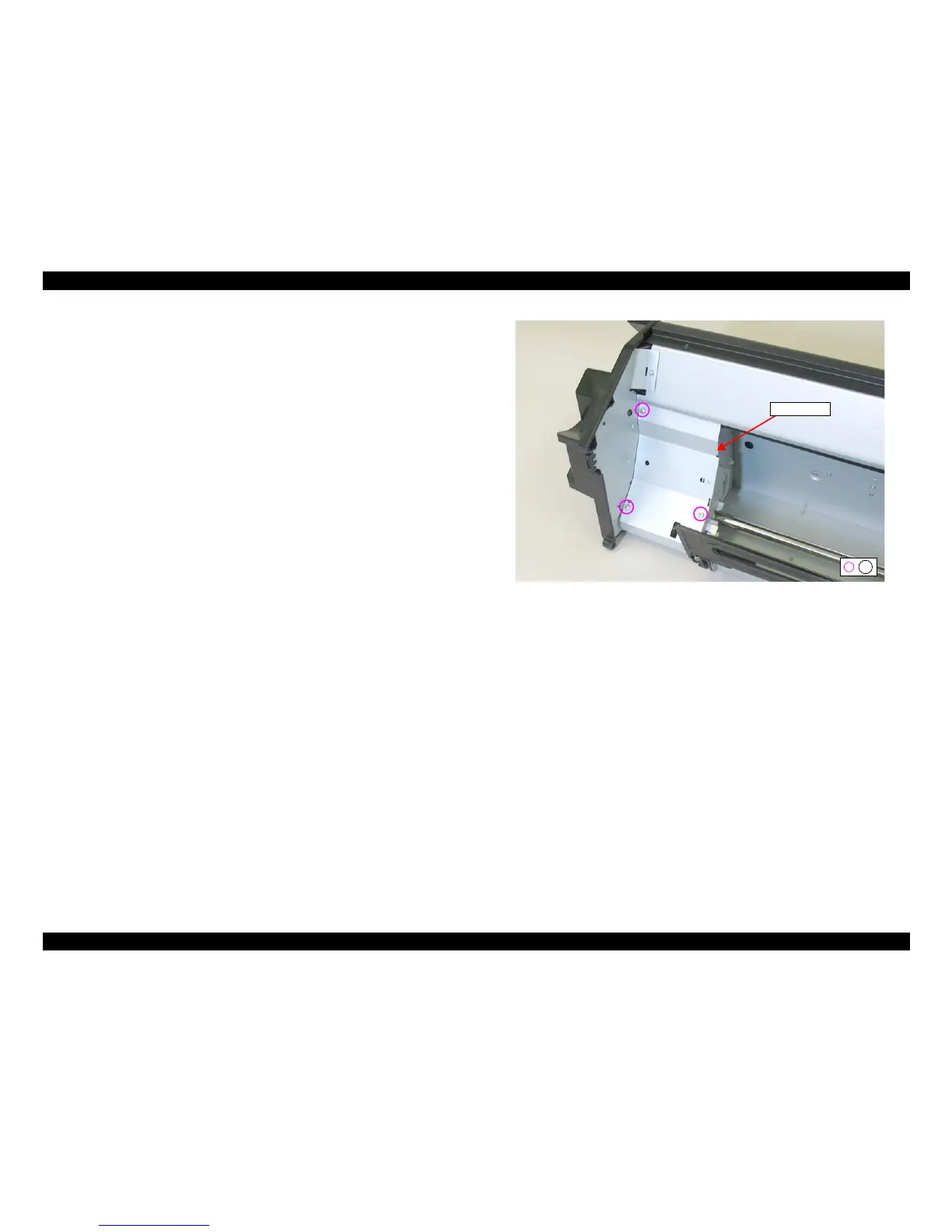

Figure 4-230. Removing the shield Plate
A
Shield Plate
