Interfaces
Name Description
Drawer kick connector Connects a cash drawer or the optional buzzer unit.
LAN connector
Connect the LAN cable here to connect to the network.
USB connector
(for optional products)
Connects optional products.
Micro-USB connector
(for optional products)
Connects a computer when setting the product with using TM-T88V
Utility.
Power supply connector for
DC 5V
Connects a AC adapter,RA.
Power supply connector for
DC 24V
Connects a AC adapter,RA.
microSD card slot When using the PHP function with the firmware version 2.0 or later.
Analog RGB connector Currently not available.
CAUTION
 When connecting USB interface devices, make sure to check the devices or manuals,
etc. for current consumption. The total value should be 2.0 A or less. Never use
devices that provide no information on current consumption.
 Make sure that the protective cover is securely fit into place while the product is oper-
ating.
 For LAN connector, make sure that the outdoor aerial LAN cables are connected
through a surge protector. Failure to do so may lead to device error resulting from
indirect lightning.
For the Micro-USB connector, use a Micro-USB (Type Micro-AB) cable.

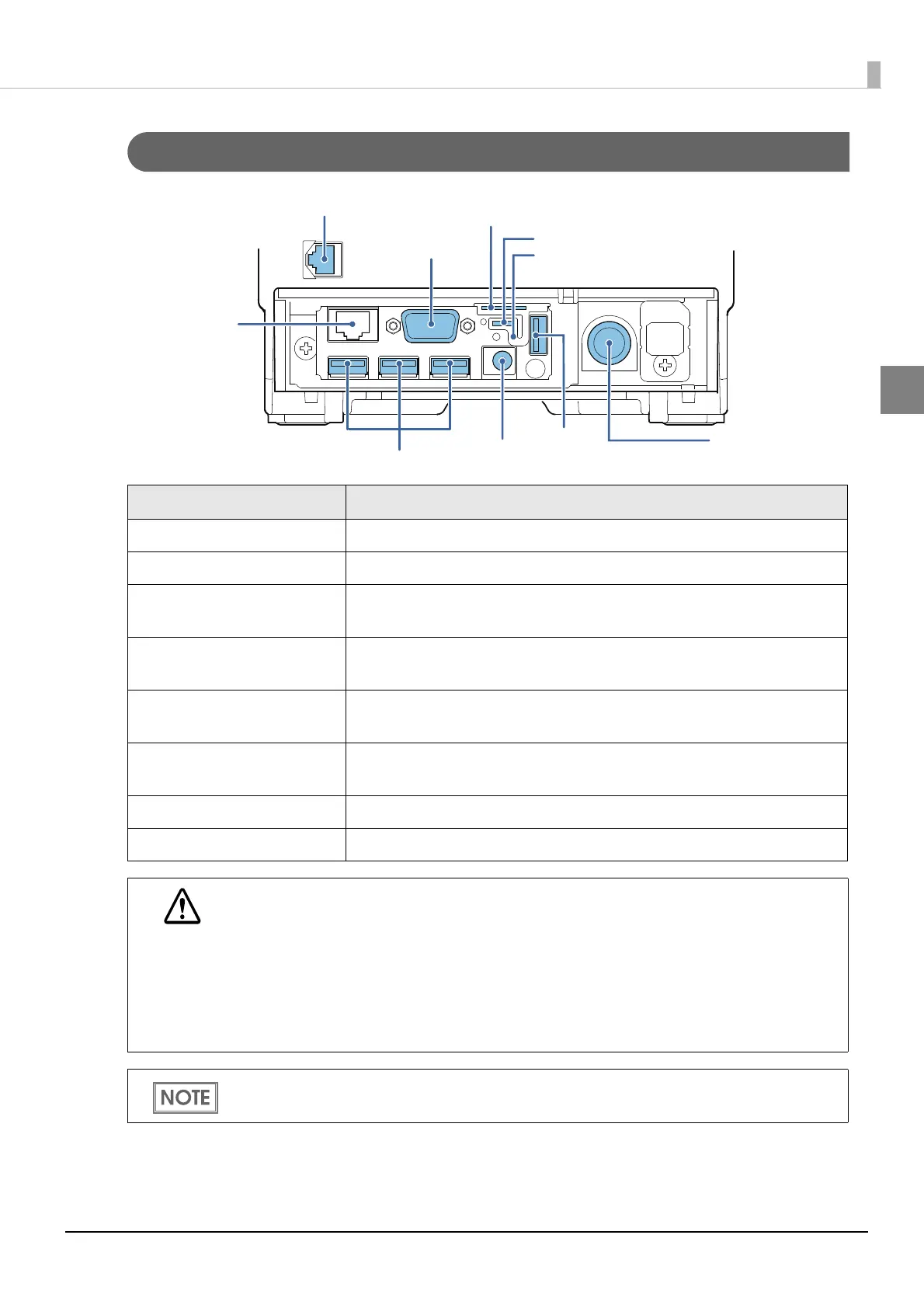

Drawer kick
connector
Analog RGB
connector
microSD card slot
LAN connector
USB connector
USB connector
Power supply
connector for DC 24V
Micro-USB connector
Power supply
connector for DC 5V
Protective cover
