Setting the DIP Switches
Follow the steps below to change the DIP switch settings.
Setting Procedure
Follow the steps below to change the DIP switch settings.
1
Make sure the power supply for the product is turned off.
2

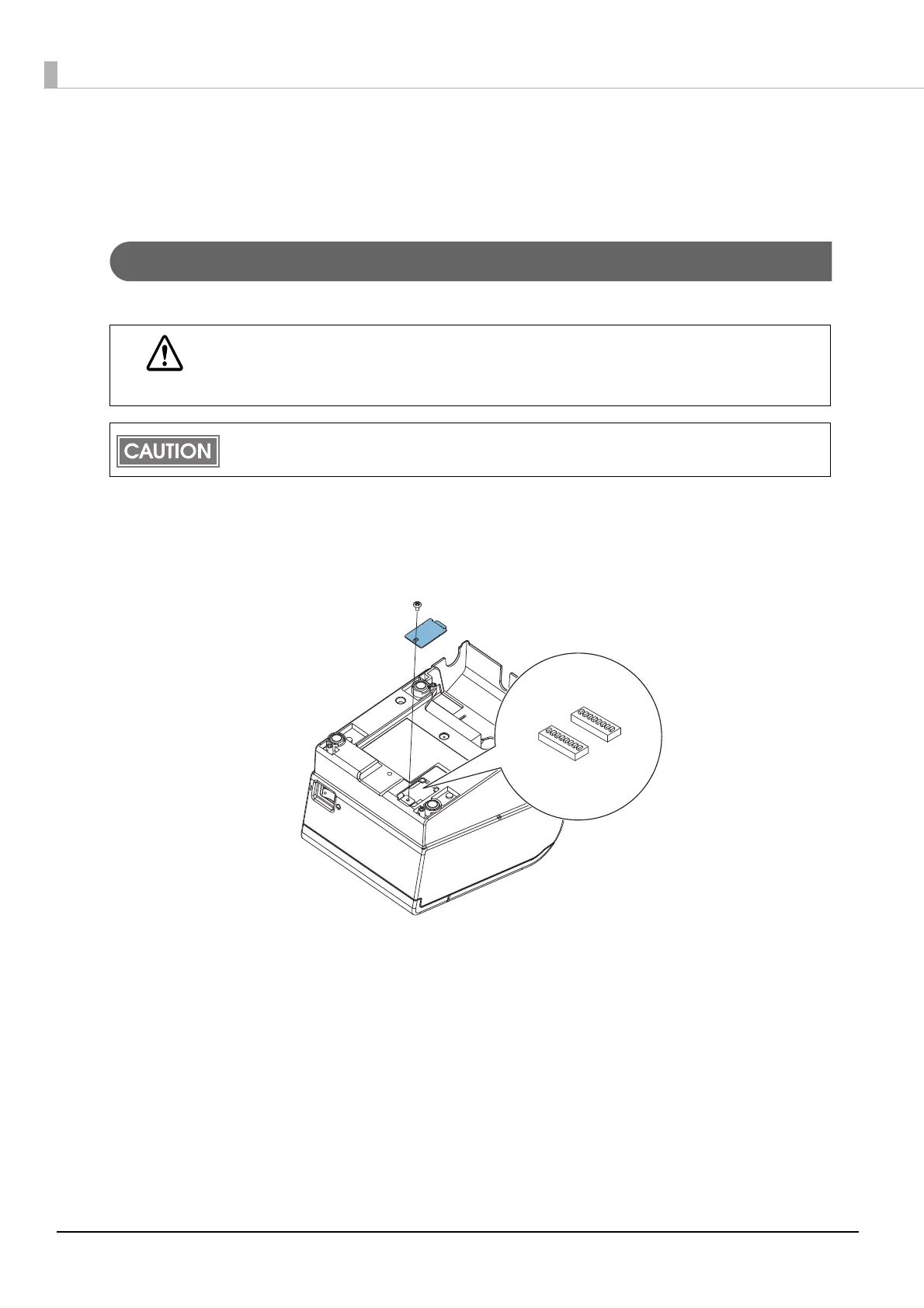

Unscrew the screw to remove the DIP switch cover from the base of the
product.
3
Set the DIP switches, using the tip of a tool, such as a small screwdriver.
4
Replace the DIP switch cover, and screw it in place.
CAUTION
Before you remove the DIP switch cover, turn the product off.
Otherwise, a short-circuit may cause the product to malfunction.
DIP switch settings are enabled only when the power is turned on or the product is reset via the
interface. If the settings are changed after that, the functions will not change.
DIP switch bank 1
DIP switch bank 2
