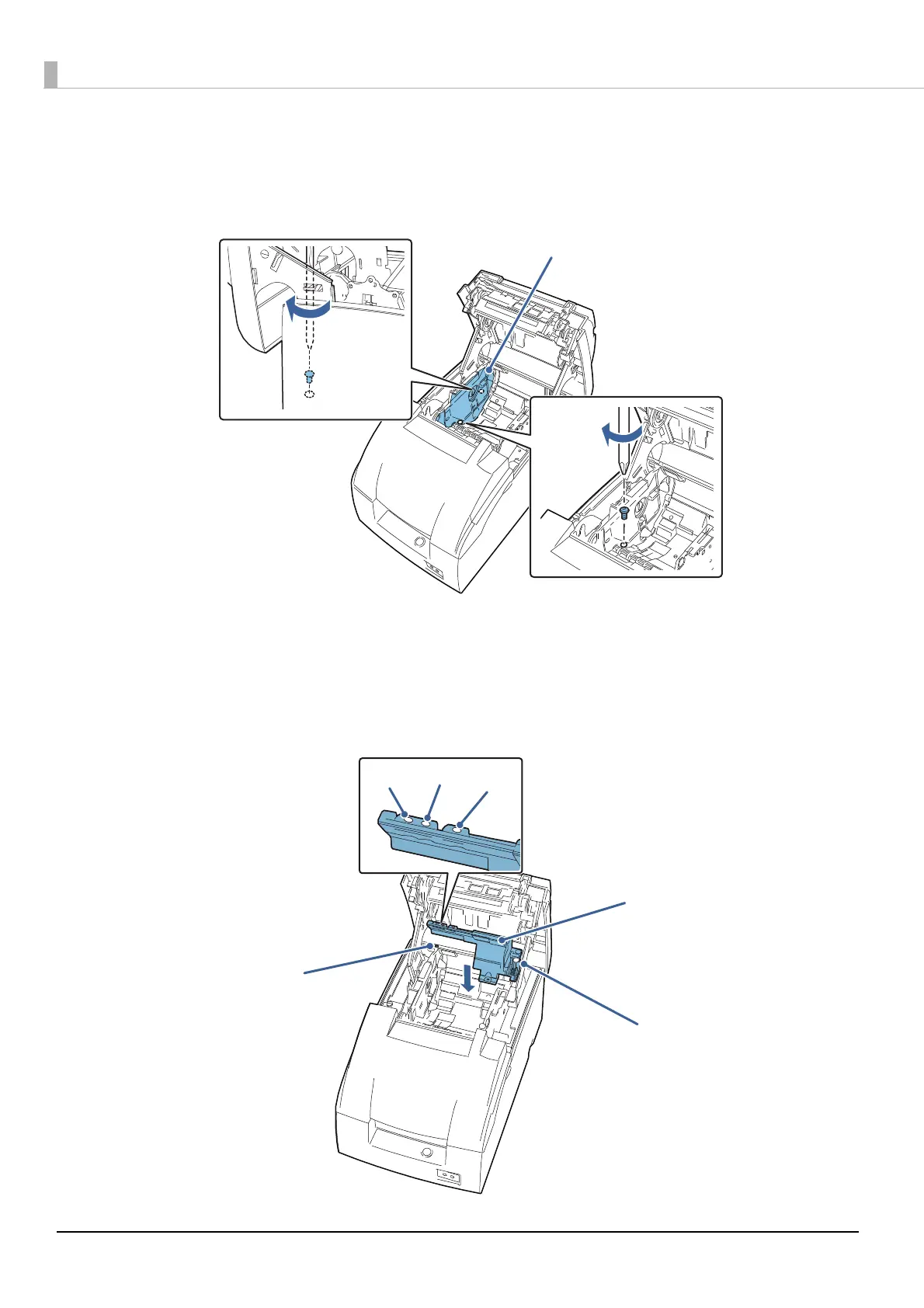

Align the hole on the roll paper guide with the hole on the roll paper holder
to match your roll paper width and then tighten the screw (3×10).
You will not use one of the two screws that have been removed when the roll paper guide is
removed. Please store it as an extra screw in case you need it.
7
Align the hole on the roll paper holder for hanging bracket with the dowel
on the roll paper guide. (For a model that needs a change of paper width,
the hole to be used will be different to match your roll paper width.)
Putting the screw (3×6) in the hole on the roll paper holder for hanging bracket makes it easier
for you to tighten the screw in the next step.
76mm
70mm
58mm
Dowel
Roll paper holder for
hanging bracket
Hole
To Next Page
