Installing the wall-mount

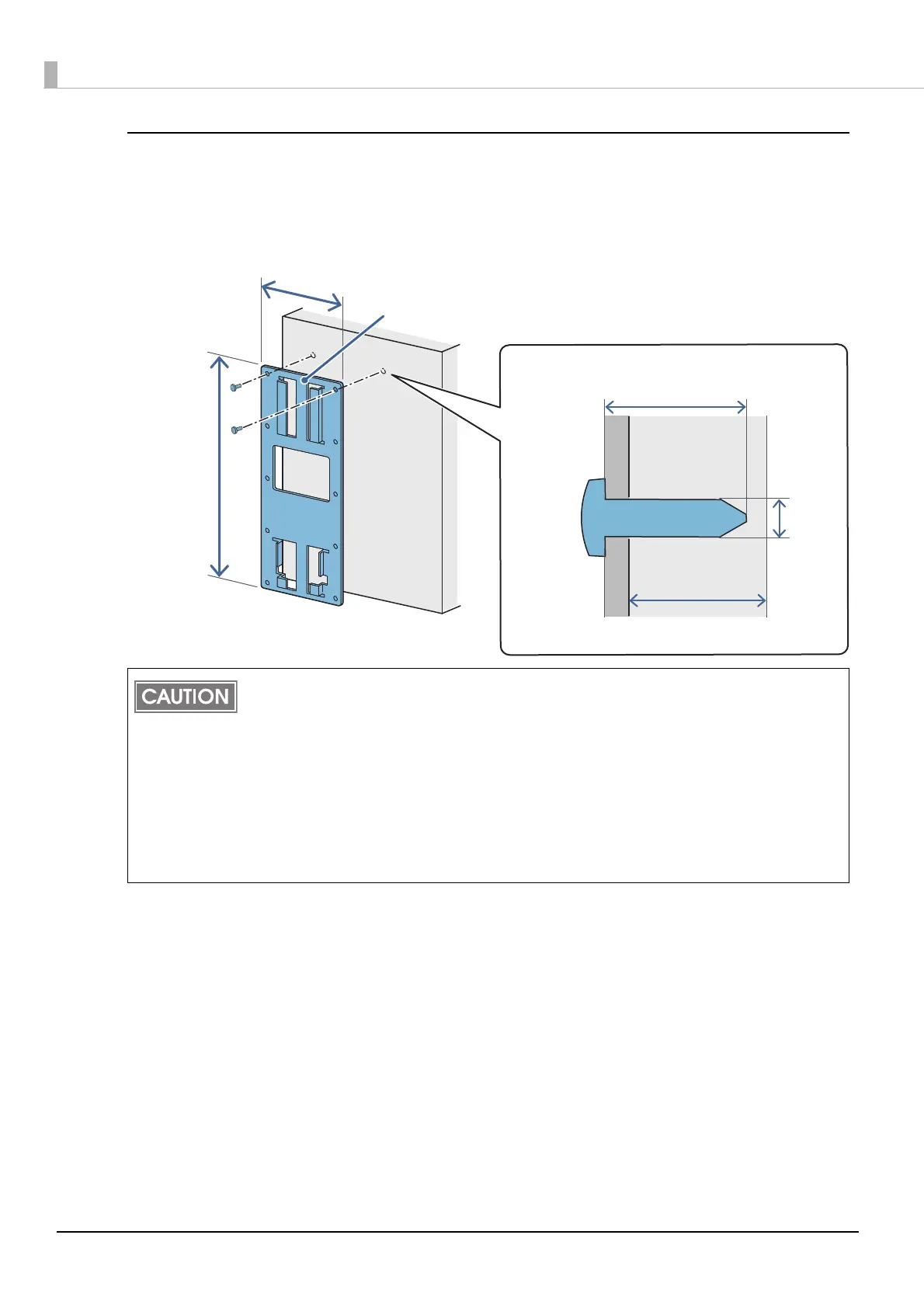

Attach the wall-mount to the wall in the position illustrated to the right (with the area marked A at
the top), and fasten securely with ten screws. These screws are not included; please use screws
appropriate to the type of wall being used.
Before attaching the wall-mount, make sure enough space remains around the printer.
To fix the printer securely, install the wall hanging bracket on a wall made of wood, concrete,
or metal. The thickness of the wall should be 10 mm {0.4"} or more.
In order to insure that the wall-mount can properly support the weight of the printer, please
secure it with screws appropriate to the type of wall the wall-mount is installed on.
A screw with 4 mm diameter and length of 12 mm or more is recommended. The thickness
of the wall should be 10 mm or more.
Be sure to use metallic screws.
The screws on the wall side must have a pull-out strength of 150 N (15.3 kgf) or more.
Be sure to fasten the wall-mount securely to the wall with a screw in each of the ten holes.
A
48 mm
4 mm
12 mm or more
10 mm or more
84 mm
