12
SECTION 2 INSTALLATION
2.1 MOUNTING
Select a mounting location where there is
minimum vibration and the ambient
temperature must be between 0 and
50 °C.
The instrument can be mounted on a
panel up to 15 mm thick with a cut out of
45 x 92 mm
+0.8 mm
Remove the two mounting brackets from
both sides of the
instrument, and insert the instrument
through the panel cut-out.
While holding the instrument against the
panel, insert the mounting brackets and
lock them by using a screwdriver until the
instrument is held against the panel (see
Fig. 2.1).

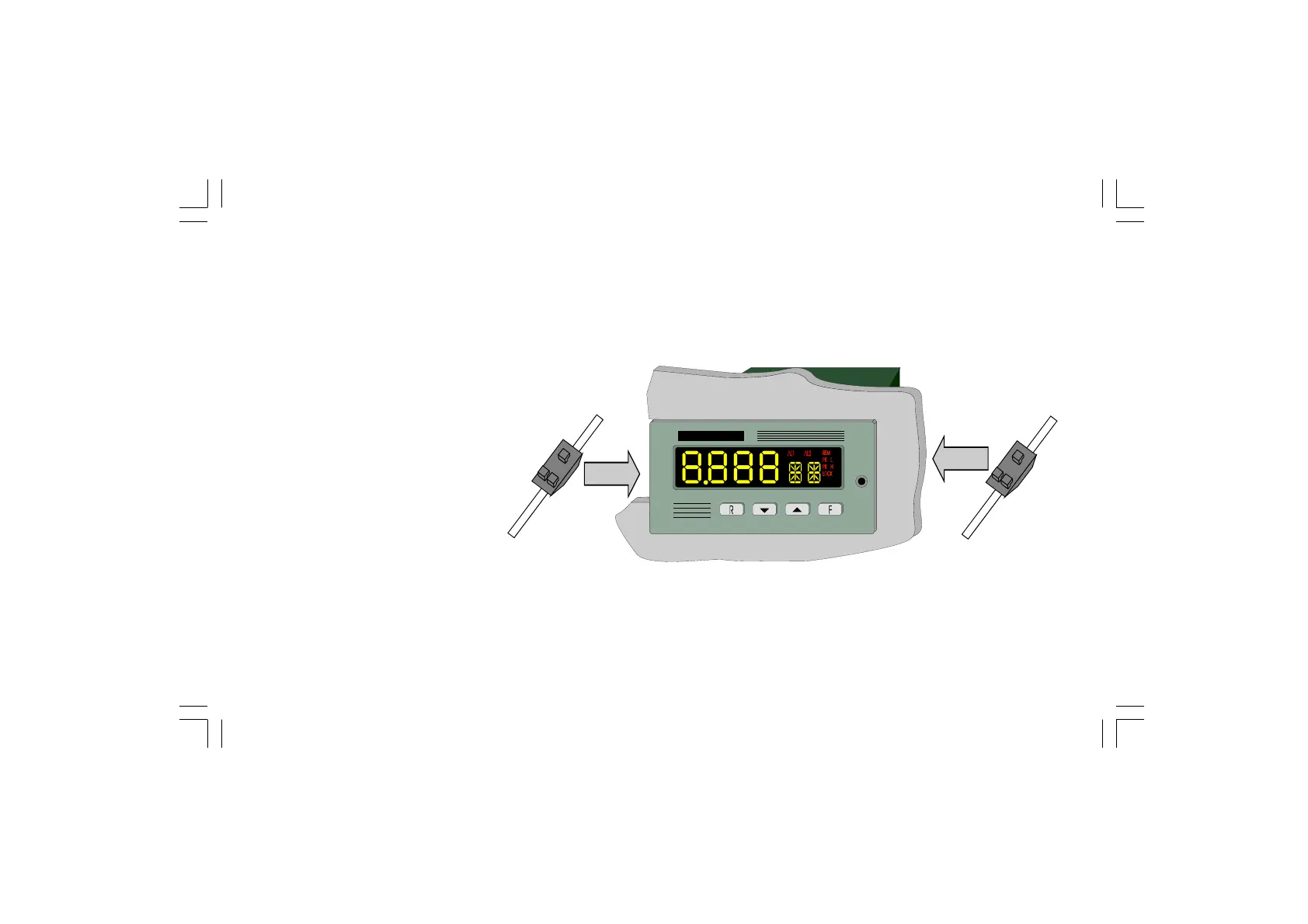

Fig. 2.1 HOW TO INSERT THE INSTRUMENT
-0 mm
