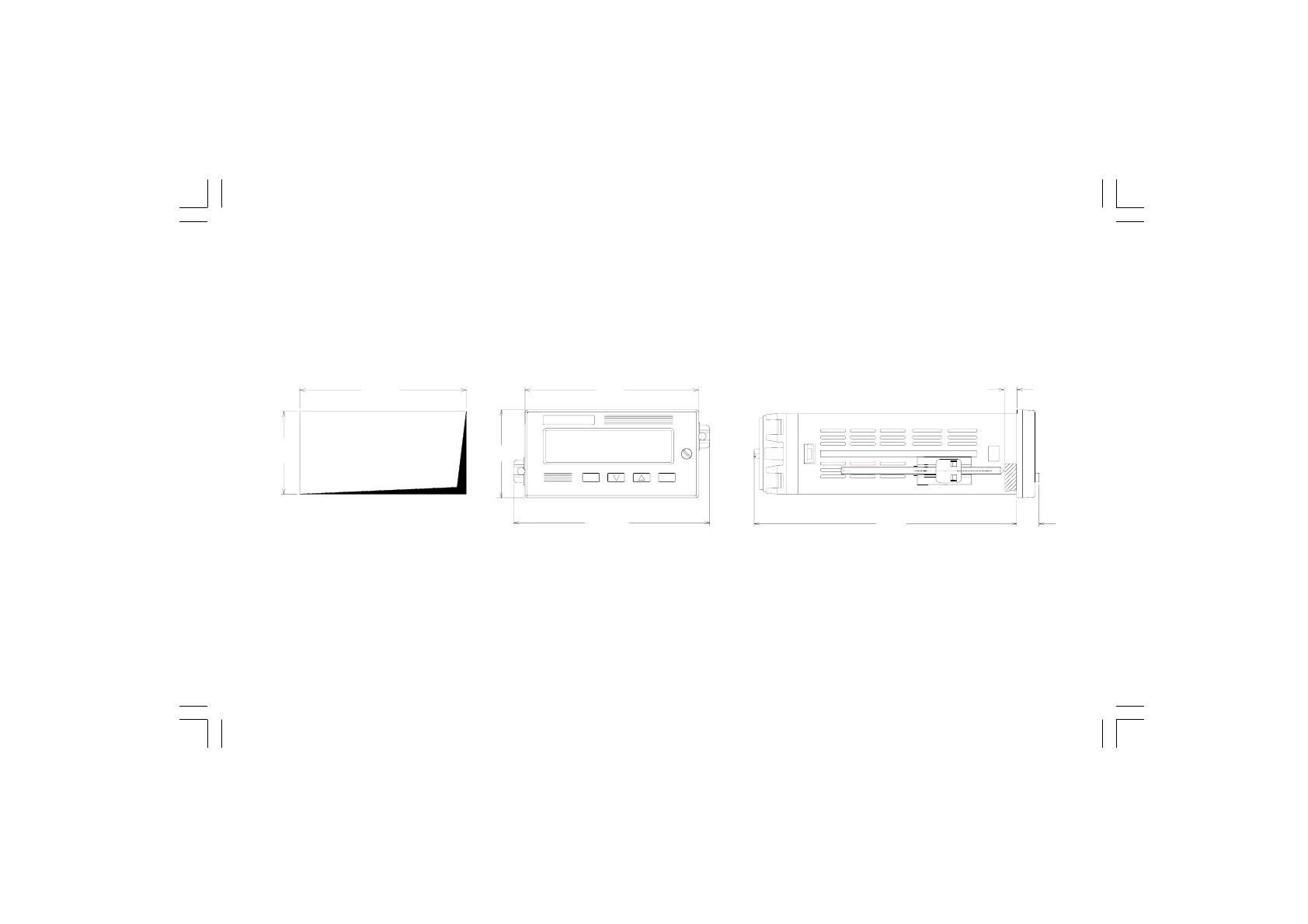

DIMENSIONS AND PANEL CUT-OUT
HORIZONTAL MOUNTINGHORIZONTAL MOUNTING
HORIZONTAL MOUNTINGHORIZONTAL MOUNTING
HORIZONTAL MOUNTING : Min distance between cut outs : 20 mm
PACKING OF MORE INSTRUMENT IN A SINGLE CUT OUTPACKING OF MORE INSTRUMENT IN A SINGLE CUT OUT
PACKING OF MORE INSTRUMENT IN A SINGLE CUT OUTPACKING OF MORE INSTRUMENT IN A SINGLE CUT OUT
PACKING OF MORE INSTRUMENT IN A SINGLE CUT OUT (max 10 instruments): The total dimension of the cut out is the addition of the
front dimensions minus 3 mm. Vertical dimension of the cut out = ( n x 48 ) - 3 mm where n is the number of instruments to be packed.
+ 0.8 mm
- 0.0 mm
+ 0.8 mm
- 0.0 mm
