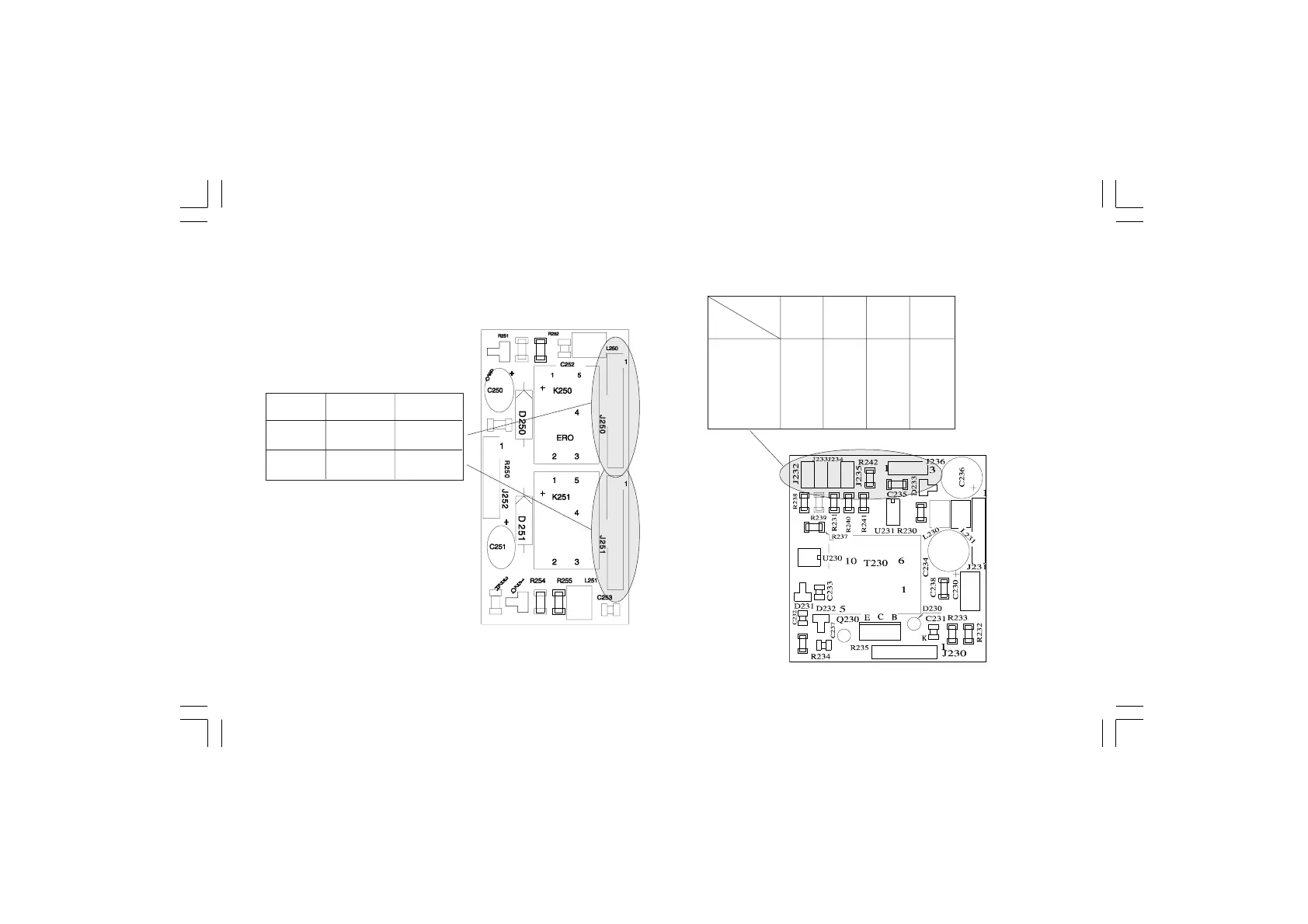

For alarms output, J250 and J251 must be setted as follows:
Contact NC NO
AL 1 J250 = 1-2 J250 = 2-3
AL 2 J251= 1-2 J251 = 2-3
NOTE : the alarm relays are
energized in no alarm condition.
For auxiliary power supply set the jumpers J232, J233, J234, J235
and J236 as follows:
OUT
Pos.
J232
J233
J234
J235
J236
5 V
output
close
open
open
open
2 - 3
10 V
output
open
close
open
open
2 - 3
12 V
output
open
open
close
open
2 - 3
24 V
output
open
open
open
close
1 - 2
