ESAB DTG 405 - MODULE A6; A6 COMPONENT POSITIONS; A6 OPERATION AND SUB-FUNCTIONS

- 33 -

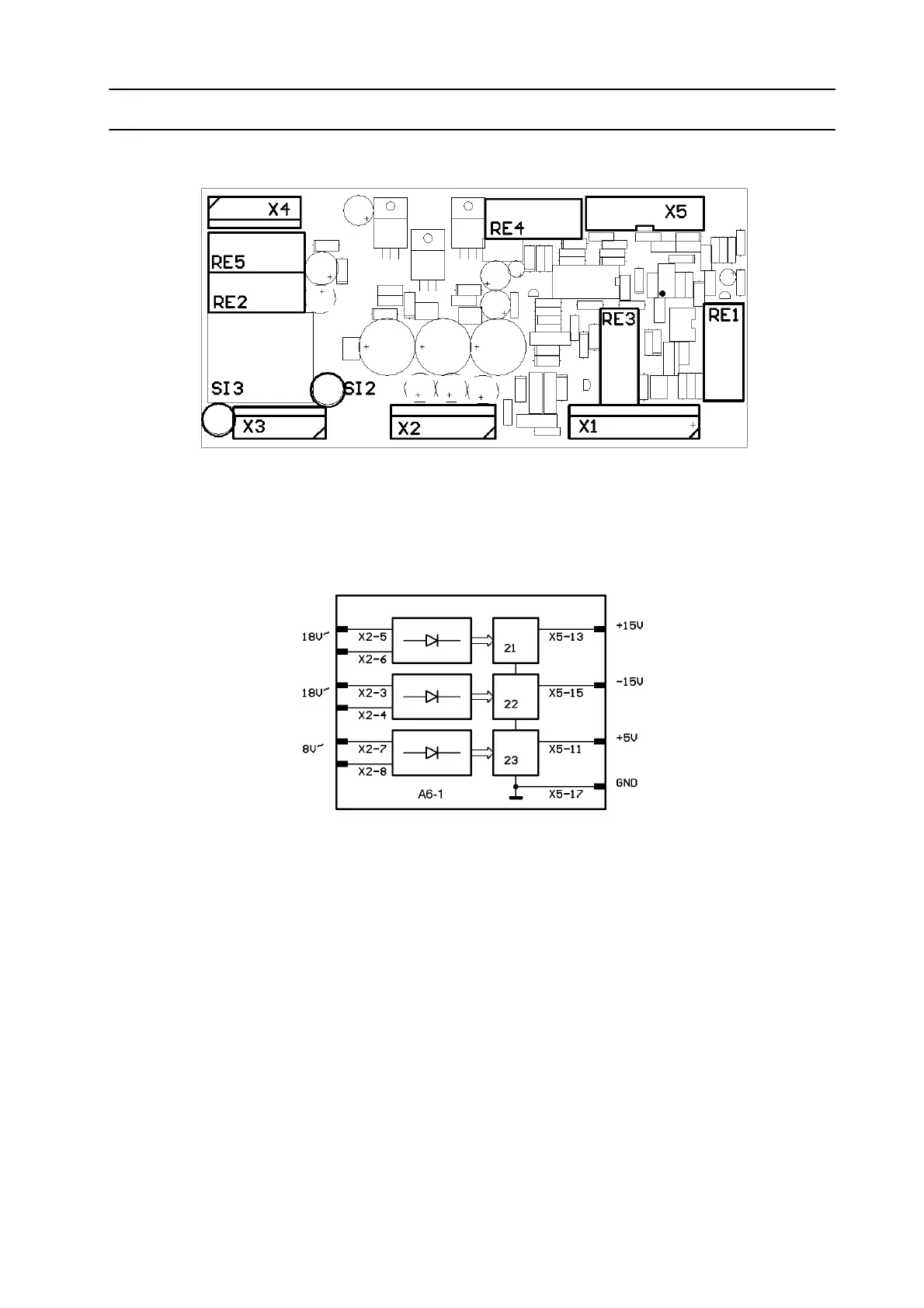

A6 COMPONENT POSITIONS
A6 DESCRIPTION OF OPERATION
A6-1 SUPPLY A2, A6
Transformer T4 supplies AC voltages to X2. When rectified, they are stabilised in voltage regula-
tors 21, 22, 23 and transferred to A2 via X5. The power supply to A2 and A6 is independent of the
supply to A1 and A8.
a6b.pcx
a6-1.pcx
