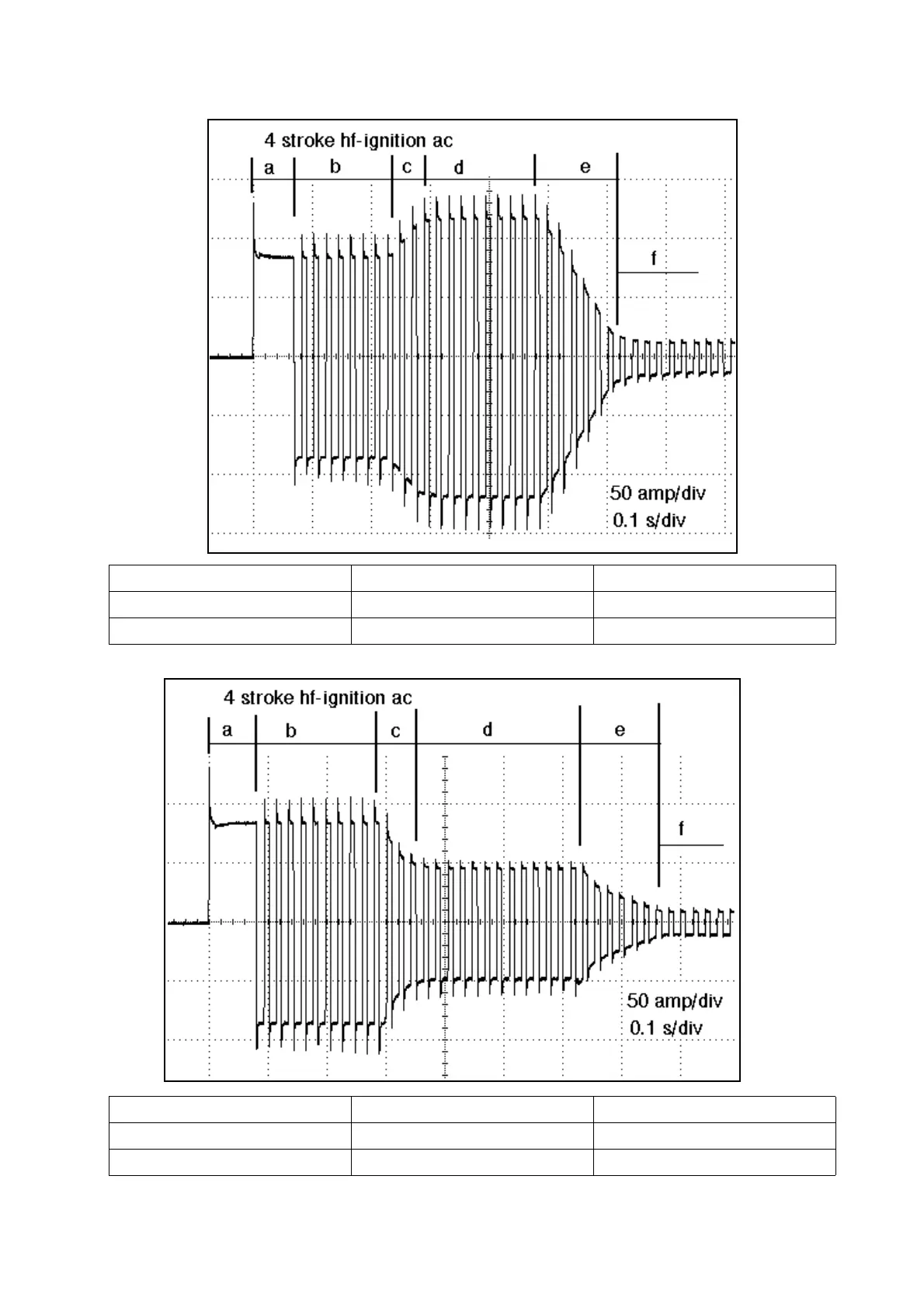

3 FOUR STROKE HF-IGNITION AC
a: Positive pole time a+b: I1=20 % Imax = 80 A c: slope1=20 %
d: I2=120 A e: slope2=10 %
f: I3=10 % I2 = 12 A 50 Hz, 40 %
a: Positive pole time a+b: I1=20 % Imax = 80 A c: slope1=20 %
d: I2=50 A e: slope2=10 % f: I3=10 % I2 = 5 A
50 Hz, 40 %
