OPERATION
1 GENERALLY
Generaly safety instructions for the operation of the welding device are found on page 6. Read
the instructions before using the welding device.
2 CONTROL INSTALLATIONS AND CONNECTIONS
CAUTION! The Positions F and G are omitted in versions with a central connection.
3 REMOTE CONTROL
The welding current during the TIG- and electrode welding can be adjusted using the remote reg-
ulator.
With the remote regulator, any current between 3 A and the preset welding current I2 of the unit
can be selected.

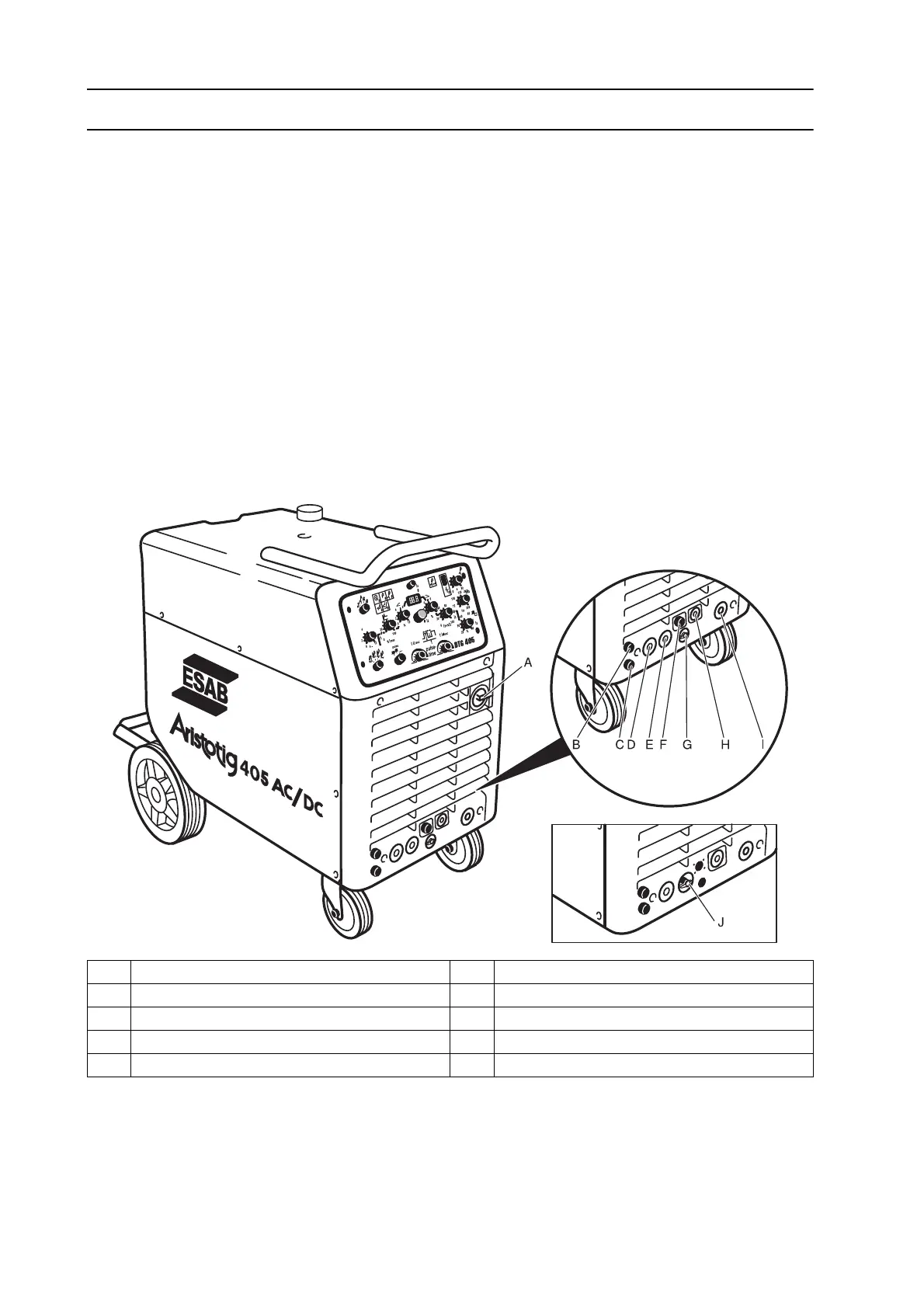

A Mains switch F TIG torch control cable connection
B Cooling water-return (red) G Gas connection for TIG torch
C Cooling water-outlet (blue) H Remote control input
D Bayonet-connection of the TIG torch I Welding current socket positive terminal
E Welding current socket negative terminal J TIG torch central connection
