False Cavity Installation Requirements
For floor-mounted installations, allow for fascia clearance, see B9 on page 15.
WARNING: DF700, DF960, and DF990: the top standos must be adjusted to the upright position
before the fireplace installation. All standos must remain in place for fireplace installation.
NOTE: Wall lining should hang below the lintel to meet the appliance edge.
Additional DF990 Specifications
B2 Floor Clearances
If the appliance is mounted above a “heat resistant floor” (including but not necessarily limited to:
ceramic tiles, concrete, and stone) then it may be positioned with the bottom of the fascia level with
the finished floor if desired.(30mm or 55mm spacer required under the fire in this case depending on
the fascia type.)
If the appliance is mounted above a “heat sensitive floor” (including but not necessarily limited to:
carpets, vinyl, carpet tiles, rugs and mats, timber, joinery, wooden flooring - see materials guide.) then
we recommend a distance of 100mm from the bottom of the fascia to the finished floor.
NOTE: “A gas appliance shall be installed such that the surface temperature of any nearby
combustible surface will not exceed 65C above ambient.” Excerpt from AS/NZS 5601.1-2013 Sec.
6.2.5.
Refer to section B4 on page 12 for hearths.
*Top
Standos
The fireplace is
inserted into the
cavity
Lintel:
Must sit above the
top standos
Wall lining thickness is
maximum 19mm

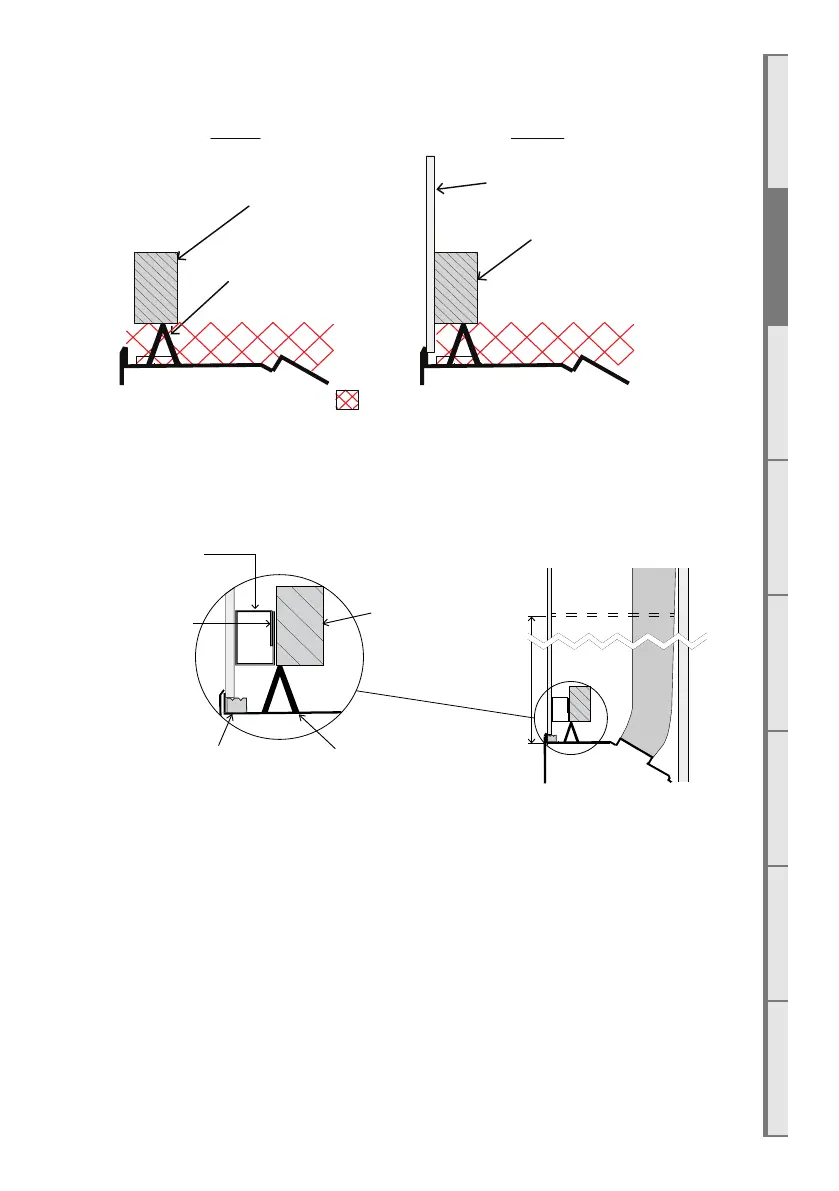

STEP 2
Lintel:
Must sit above the
top standos
Clearances; must cover
the full width of the appliance
=
STEP 1
1200mm
Cavity not to be
sealed within this
distance
20mm stando
to wall linings
Dwang/nogging/lintel MUST
be spaced 40mm away from
wall lining using provided
spacer bracket
40mm Spacer bracket
provided with DF990
Overlapping join to face
lintel/dwang/nogging
60mm Stando to
dwang/nogging/lintel
