E10 Checking the Operating Pressure
WARNING: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the
regulator, or replacing it with one not intended for use with an Escea fire, will void the limited appliance
warranty.
□ Check the inlet pressure to the appliance. Attach manometer tube to the first test point
upstream of the appliance (typically at the gas utility meter or auto change device for a
propane bottle station)
□ Run the heater on full (both burners running) and measure inlet pressure with all the
other gas appliances in the building running. If pressure does not fall within the maximum
or minimum pressures listed on the specification sheet at the start of this manual then
reassess installation pipe size or upstream regulator settings.
□ Loosen the operating pressure test point screw. Connect the manometer tube and measure
the operating pressure with the fireplace running on full (both burners running) and
with all the other gas appliances in the building running. The manometer tube can be
applied to the test point by removing the access hatch and feeding the tube through
the front (as shown in the diagram below).
□ Adjust the operating pressure by feeding a screw driver through the front face of the
fireplace and turning the regulator adjustment screw.
□ Tighten the operating test point screw and leak test both test points using a soapy water
solution.
□ Replace the test point hatch

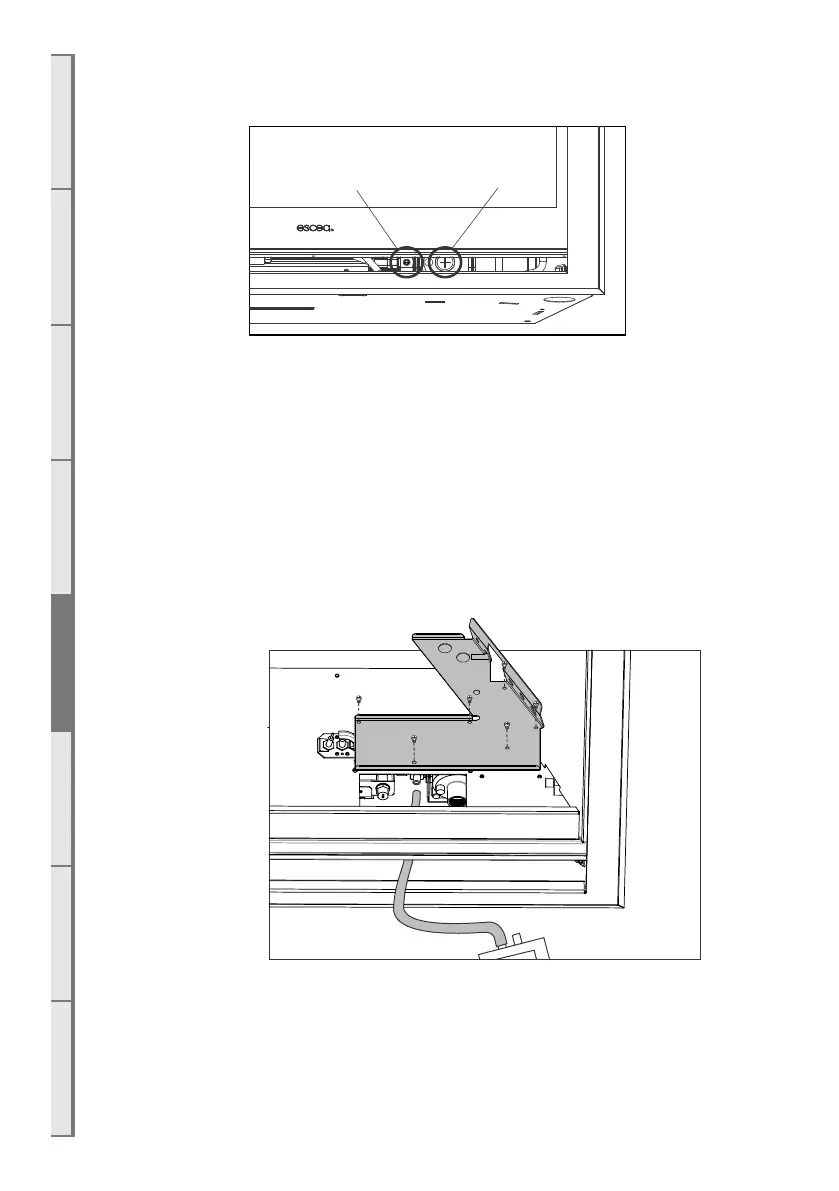

Operating
Pressure
Test Point
Regulator
Adjustment
screw
