C2 Flue Configuration (If more than 4m flue length is required)

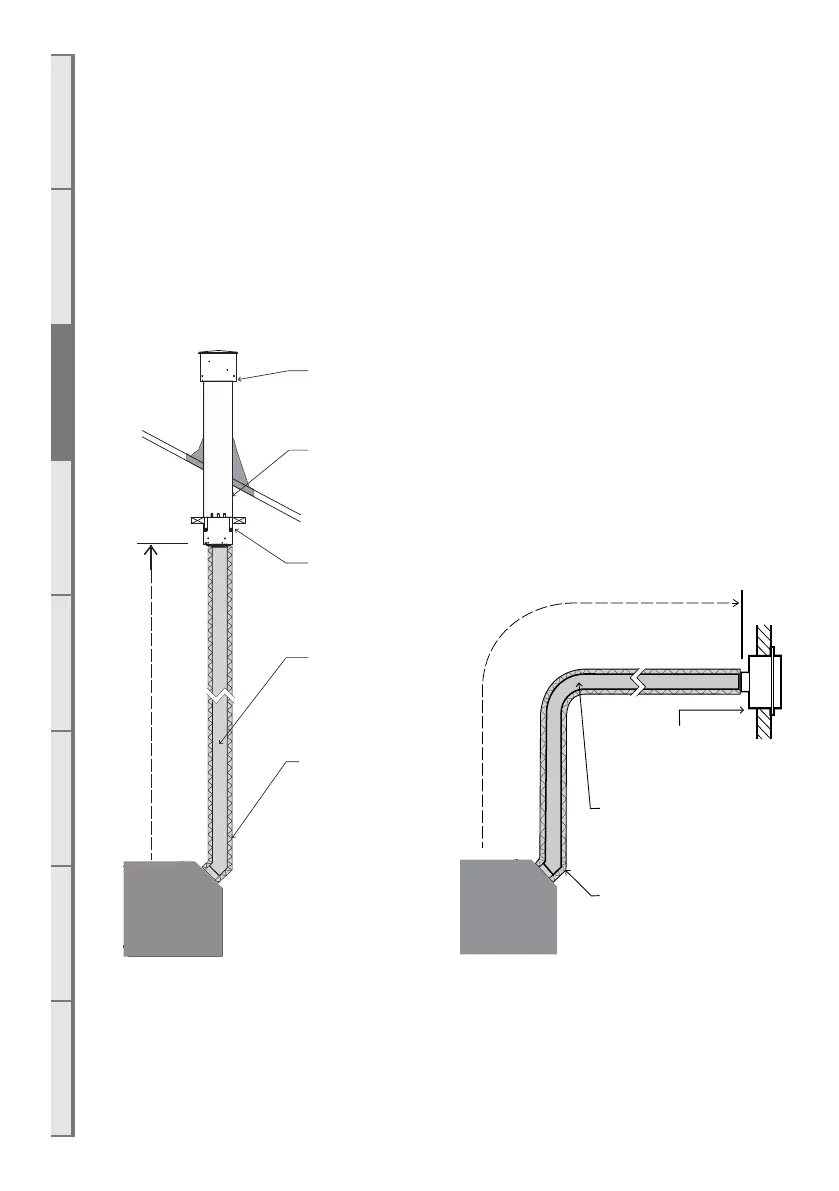

If your flue system is greater than 4m long (as shown in diagrams below), then there are the following
options:
• DFS Only: Flexible flue with condensate trap and rigid PolyPro tube lengths (see diagrams
below).
• DF: For flue run installations beyond 4m and up to 12m, flexi flue must be used for the entire
flue run and must be fully insulated from appliance connection to fan unit. For information on the
insulation installation see section C10 on page 29. Beyond 12m (up to 40m) please contact
the Escea Advisory Team at aa@escea.com.
Up to 12m MAX
Escea Wall
Terminal
Ø75mm / Ø100mm
Flexible flue
Insulation
Covering entire flue length
Fireplace
Up to 12m MAX
UVP Fan Unit
1.2m F-F Liner
UVP Cowl
Ø75mm / Ø100mm
Flexible flue
Insulation
Covering entire
flue length
Fireplace
