C D E F G SERVICE
32

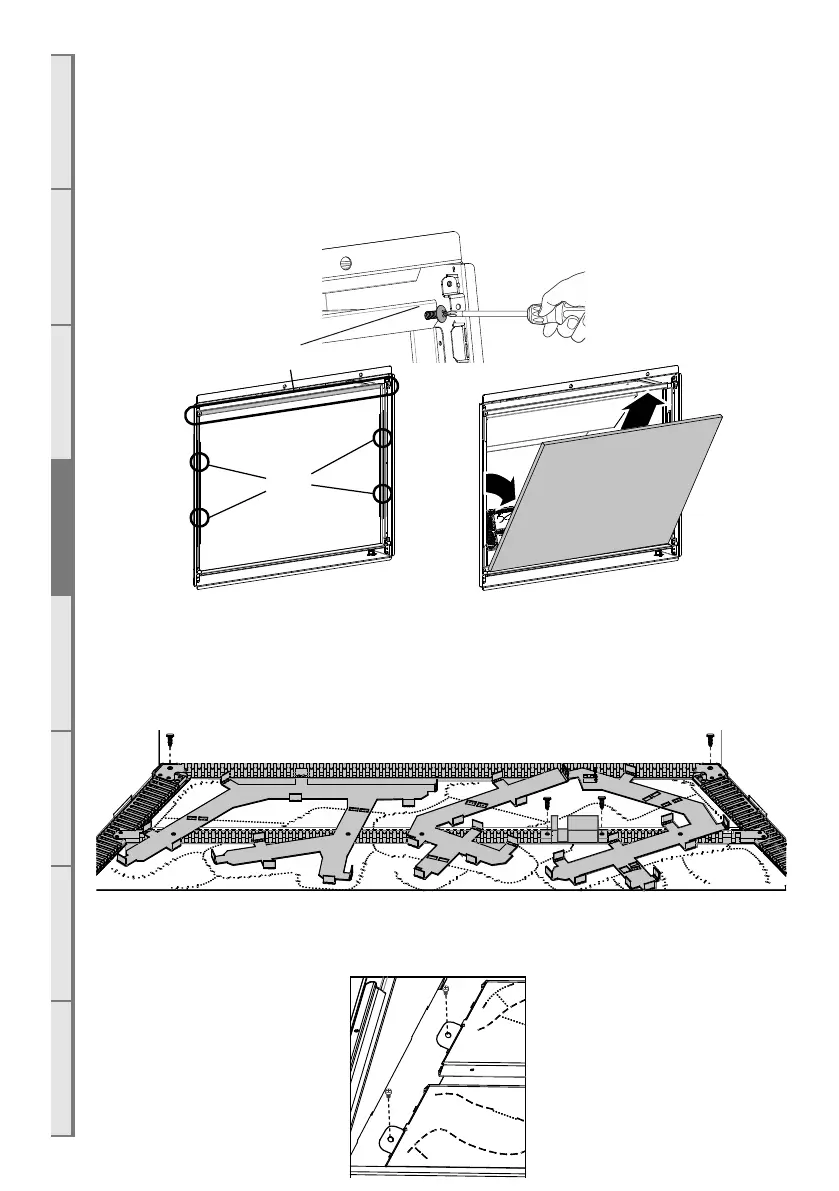

Primary Glass
1. Remove both machine screws holding in the top bracket and slide forward.
NOTE: some fireplaces may have an aluminium extrusion instead which is not fixed with
screws, that needs to be lifted up to remove.
2. Remove the two screws in each of the two side brackets.
3. Pull the top of the glass toward you slightly, lift the glass out of the bottom glass
retainer and carefully set glass aside. Note that the fiberglass tape around the glass can mark
carpet and furnishings - use a dropcloth to protect furniture.
D3 Removing the Burners
Remove the 2 screws in the rear corners of the infill assembly and the 2 screws either side of the pilot
guard (shown in diagram below). Lift the infill assembly up and out of the firebox; place it carefully
aside.
Remove the 2 machine screws at the left hand end of each burner. The burner can now be carefully
moved left to detach the burner tube from the burner jets and lifted out of the firebox.
4
5
