C10 Insulation Specification and Installation
Type of Insulation to use
Insulation R-value to be R1.5 and of malleable/flexible construction (rock wool or glass wool) and
certified to withstand 230°C.
Insulation Installation
Tape must be used for all overlapping joints and the entire flue must be wrapped. Care must be taken
not to compress insulation.
C11 Running the Power Flue Electrical Cable
Note: The Power Flue Terminal is powered from the appliance, and must be connected to the appliance with
the supplied electrical cable only.
Note: Ensure that the appliance power supply is disconnected before making the connection to the terminal.
The supplied electrical cable is 7m long, flue extension kits also include a Power Flue electrical cable
extension.

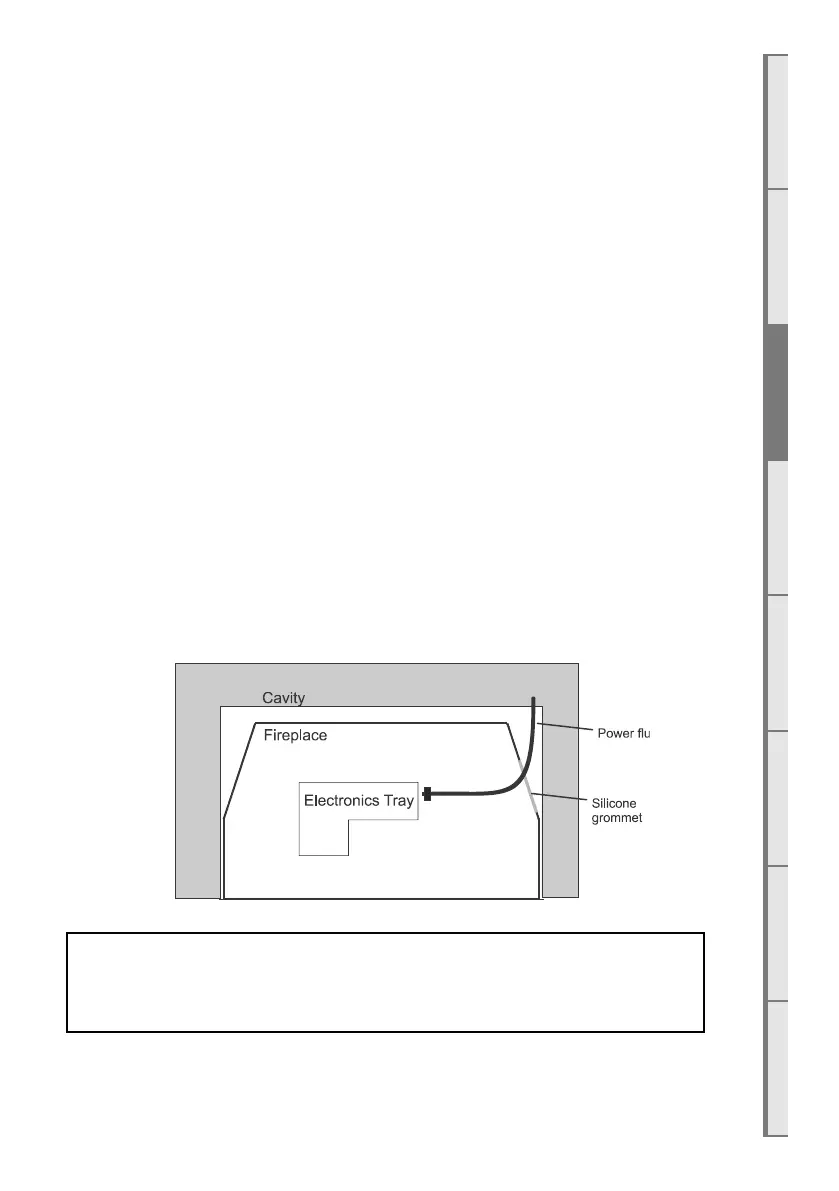

Run the electrical cable from the cavity where the appliance will be installed to the hole in the outside
wall. Ensure it is not draped over, or in contact with, the outer shell of the appliance or the exhaust flue
and kept clear from any other possible heat sources, sharp edges, or moisture. Fix it appropriately and
allow enough cable looped to be able to pull both the appliance and the Horizontal Power Flue Wall
Terminal out from their installed positions.
If you do not connect the power flue electrical cable to both the fireplace and
the Powerflue, this will result in an error when the fireplace is turned on.
Test the fan before continuing with the rest of the installation.
