E6 Network Cable
If the appliance is to be wired to a home automation system or internet router/network being installed
then provision must be made for the network cable to get to the electronics tray. An opening in a
silicone sheet in the rear bottom right hand corner is provided for the gas supply, Power Flue cable,
and network cable to pass through the chassis.

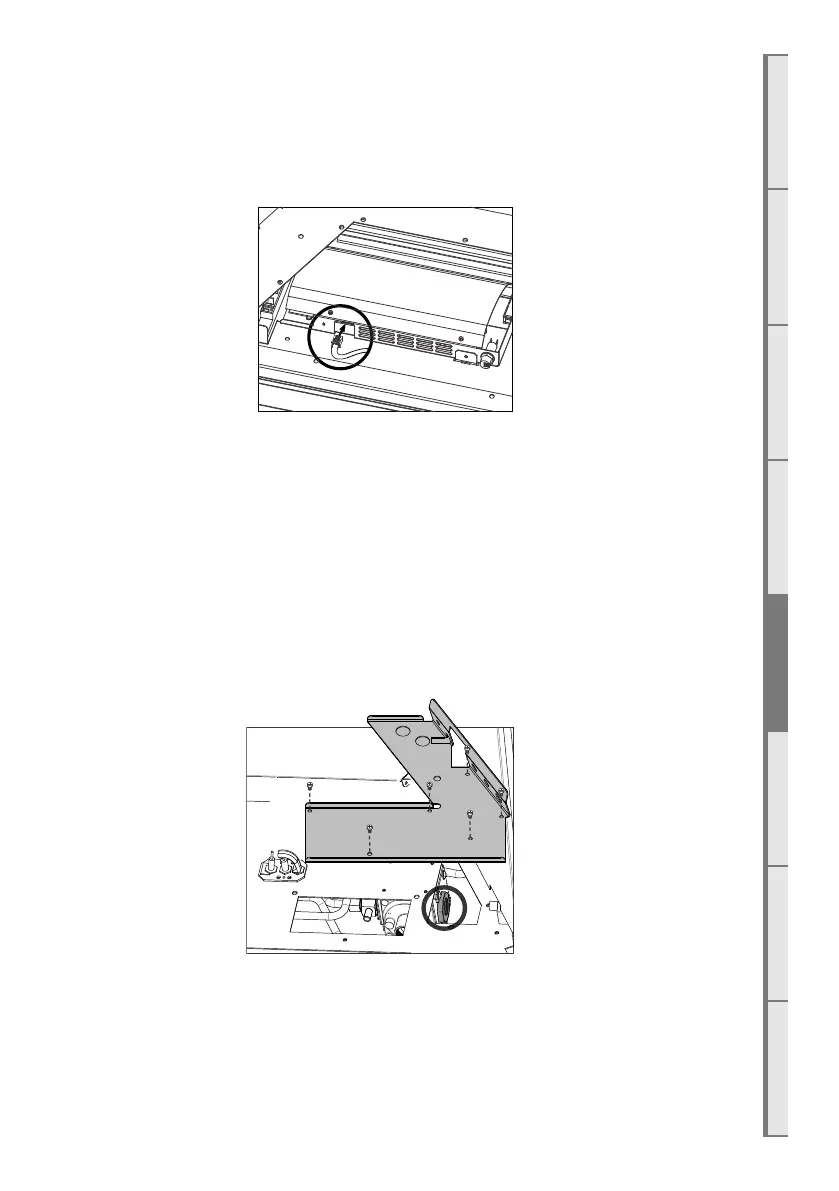

Plug the network cable into the electronics tray using the location below as a guide.
E7 Connecting the Gas Pipe to the Regulator
NOTE: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the regulator,
or replacing it with one not intended for use with an Escea fire, will void the limited appliance warranty.
The gas connection on the appliance regulator is a ½” female BSPP at the front right of the appliance;
the regulator is located on the underside of the main burner tray (circled below). The gas supply
section of the piping will need to be flexible inside the chassis to allow for pipe disconnection and
burner tray removal.
With the burner tray out, the flexible gas supply pipe may be bent into position to align with the
regulator connection point when the burner tray is replaced.
The gas supply can be tightened onto the regulator through the access hatch shaded in the diagram
below.
E8 Gas Isolating Valve
It is recommended that a gas isolating valve be installed as close to the regulator on the gas inlet side as
possible with easy access if the fascia is removed. This will allow for easier servicing in the future.
E9 Pressure Test Point
As per AS/NZS 5601, a pressure test point shall be provided by the installer prior to the inlet of the
appliance.
