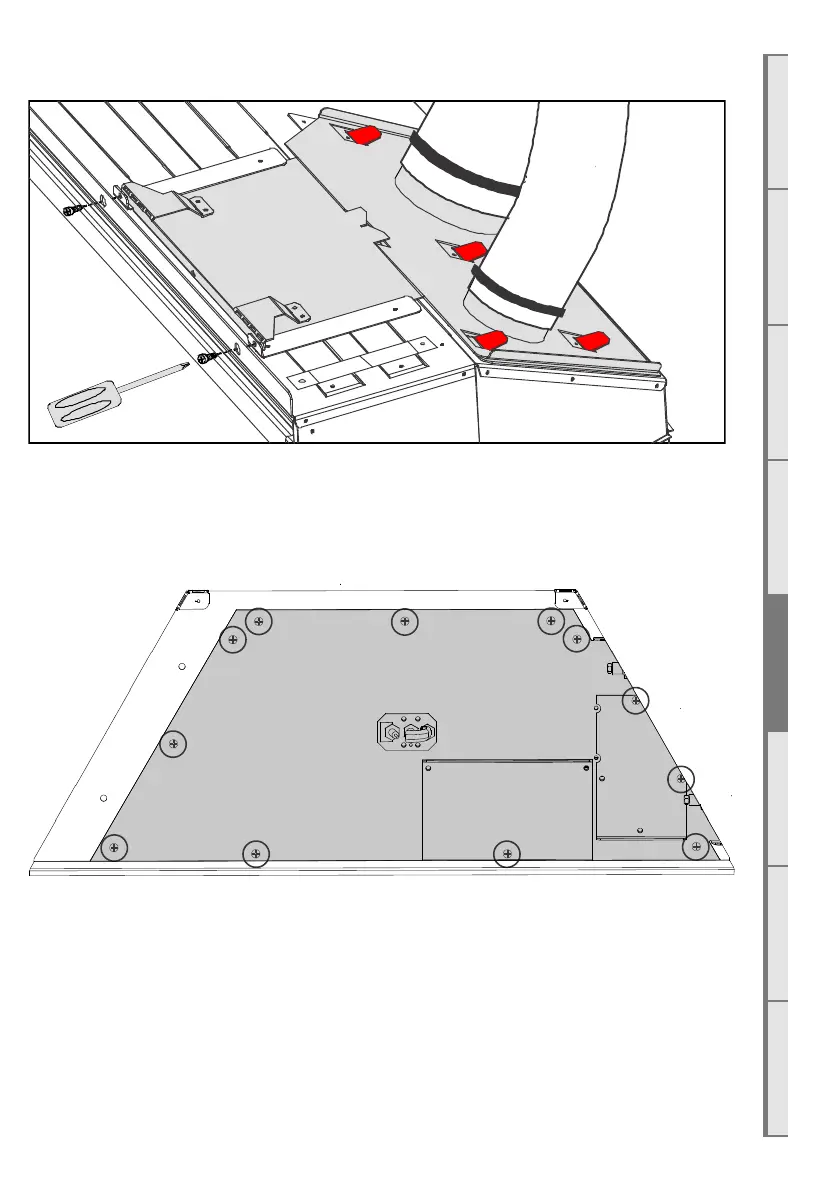

Make sure that all six of the fold up tabs (shaded in the diagram below) used for locating the flue spigot
plate onto the chassis are poking through the flue spigot plate.
Insert the 2 long self tapping screws into the location shown in the diagram above to secure the flue
spigot plate to the chassis.
E3 Removing the Burner Tray
Remove the screws circled in the diagram below.
The left hand side of the burner tray can now be carefully tilted and lifted out of the firebox slightly to
detach the 2 ignition leads, 8-way teddington valve connector and the earth lead.
To Next Page
