Installing the Flue
C1 Flue Configuration (If less than 4m flue length is required)

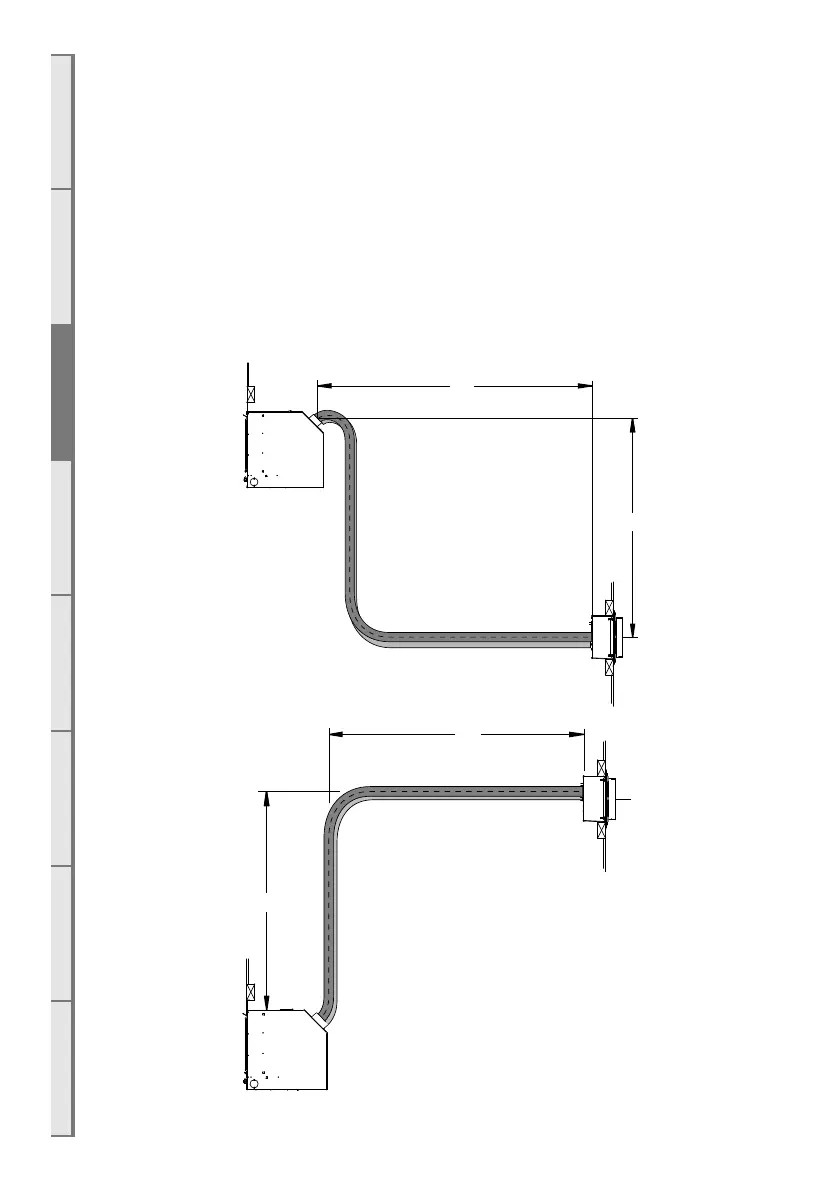

If your flue system is less than 4m long (as shown in diagrams below), then a simple aluminium flexible
flue is required. If you wish to install a longer flue run, see either section C2 on page 18 or C3 on
page 19.
Horizontally Terminated: Utilizes the Escea Horizontal Power Flue enclosure kit.
The horizontal oset of the terminal can be any amount up to the total flue length listed below. Please
consult with Escea’s technical sta if your intended flue configuration steps outside of the bounds of
the flue configurations shown below.
X
Y
X + Y Maximum = 4m
Y Maximum = 4m
Y Minimum = 0m
X Maximum = 4m
X Minimum = 0m
X + Y Minimum = 0.4m
X
Y
X + Y Maximum = 4m
Y Maximum = 1.5m
Y Minimum = 0m
X Maximum = 4m
X Minimum = 0m
X + Y Minimum = 0.4m
