Escea DF960 - G5 Flue Installation

B
ACDEFGSERVICE
49
G5 Flue Installation
The freestanding unit and flue system should be
installed prior to the DF-Series fireplace being installed
(for horizontal termination for DFS730: see G6 on page
50).
□ Place the freestanding unit in the correct location,
complying with the clearances specified in the previous
section.
□ Remove 2 screws on each side of the fascia just below
the top panel and pull towards you to remove the fascia.
□ Fix the DFS730 unit to the floor using the four
securing holes in each corner of the unit.
□ Refer to Section B3 on page 12 for flexi flue
clearances.
□ Refer to section C on page 16 of this installation
manual for minimum and maximum flue lengths,
restrictor settings for your installation, and all other flue
information.
□ Run the black Ø230mm flue liner lengths from
the top of the freestanding unit until it penetrates the
Ø265mm ceiling hole.
□ Use the supplied ceiling plate for tidying the internal
termination point of the Ø230mm flue liner.
□ Run the 2x flexible flues down through the Ø230mm
flue liner and attach it to the Flue Spigot Plate as per
section C on page 16 of this manual.
□ Run the Power Flue cable down through the
Ø230mm flue liner while tying it onto the Ø75mm Air
Flexi Flue as shown on the bottom right corner. It must be kept
away from the Ø100mm Exhaust Flexi Flue.
□ Open the flue liner rodent guard and close around the flexi flue
and Power Flue cable. Rivet, screw or cable tie the open end to
prevent it from opening. Bend the two perpendicular tabs down and
screw into the flue liner using a short self tapping screw. NOTE: Take
care when installing the rodent guard to not cause damage to the flexi
flue or Power Flue cable.
□ Install flue termination as per section C on page 16 of this manual
NOTE: Ensure a power supply is within 1m of the rear of the appliance.

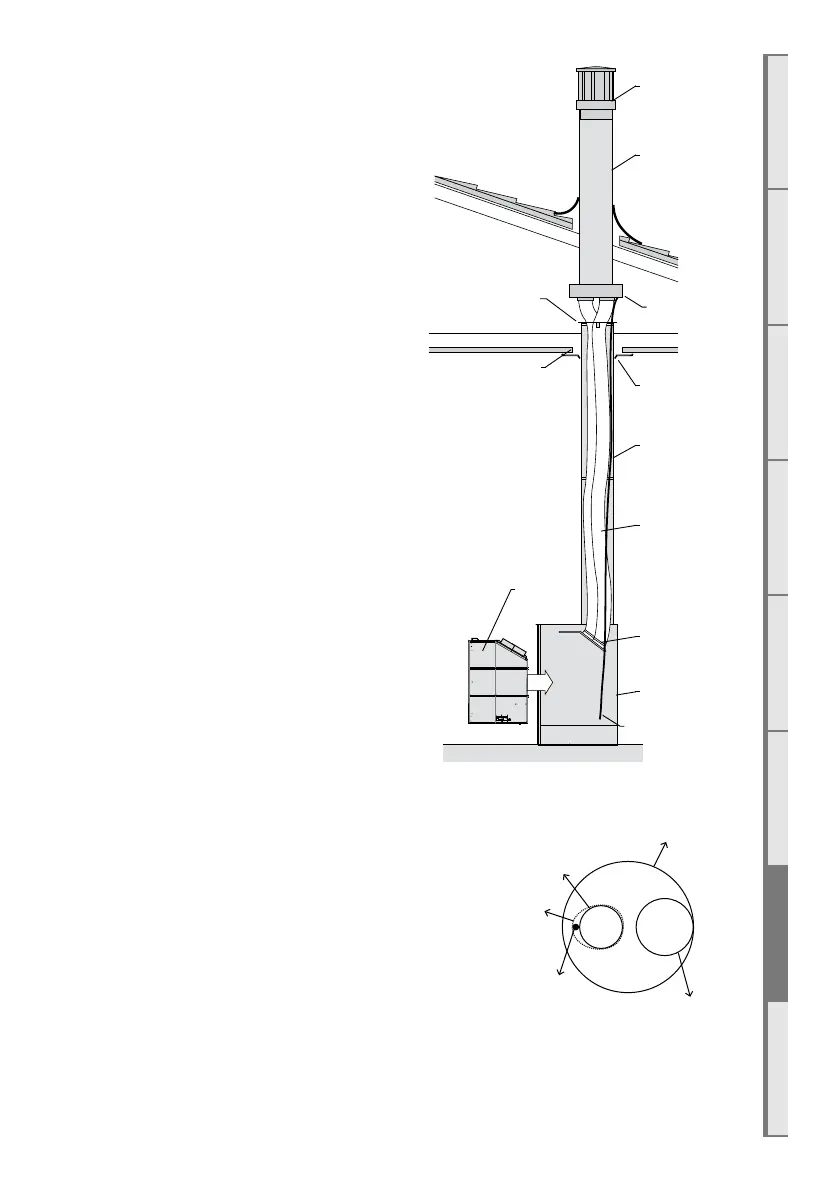

Ceiling Ring
230mm
Flue liner
2x Flexible
ue
Duravent 5x8”
Rigid Direct-vent
ue
Rigid ue
Flexible ue clamped
to Flue Spigot Plate
DFS730
Fireplace
FS730 Freestanding
Unit
Flue Liner
Rodent Guard
Ø265 mm
Ceiling hole
Vertical Power Flue
Power Flue Cable
Ø230mm Flue Liner
Ø75mm Air
Flexi Flue
Ø100mm Exhaust
Flexi Flue
Powerflue
Cable
IN OUT
Cable
Tie
