Escea DF960 - S12 Wiring Diagram

B
ACDEFGSERVICE
61

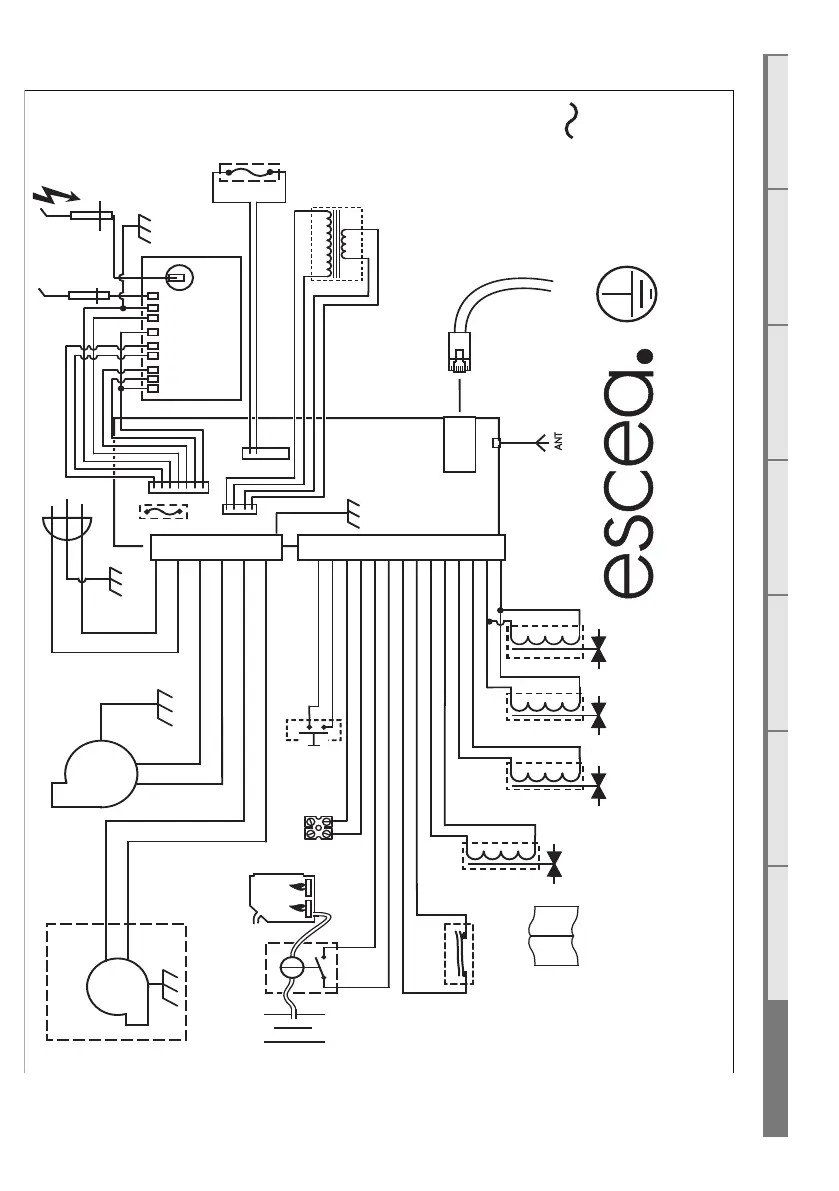

S12 Wiring Diagram
230V-240V AC
50Hz 2A FUSE
140W

CON6
CON10
CON9
ANT
TRANSFORMER
ISOLATING VALVE
PILOT
OVER TEMP
CUT OUT (N/C)
BACK
BURNER
FRONT
BURNER
FLAME SAFETY CONTROLLER
FENWAL 35-615-200-201
Read the user
instructions
before use.
FLUE
FAN
REMOTE WALL
TERMINAL
DIFFERENTIAL
PRESSURE
SWITCH (N/O)
www.escea.com
ROOM
FAN
DF-Series
Manufactured by: Escea Ltd. PO Box 5277 Dunedin, NZ. MADE IN NEW ZEALAND
Part No. 620436
W
V2
L1
R
IND
PSW
V1
GND
SPARK
ELECTRODE
ESCEA
CONTROLLER
AUXILIARY
ON / OFF (N/O)
MAINS FUSE (2A)
FLUE
OUTLET
(LP)
FIREBOX
(HP)
NETWORK
(RJ45)
NETWORK CABLE
FLUE FAN
FUSE (1.5A)
“CLOSE TO WAKE”
TERMINAL BLOCK
The Escea horizontal wall terminal
offers weather protection to IPX3
ELECTRICAL SCHEMATIC
SENSE
ELECTRODE
S1
