C3 Masonry Vertical Power Flue Kit (up to 6m)
The following kit enables the installation of the aluminium flexi into vertical masonry chimneys for
extending the flue system from the appliance spigot to 6.0 meters while providing the masonry
flashing.
Including, but not limited to, installations into: a complete masonry chimney, a flue liner, or a combustible
sealed false chimney.
If your flue system is to be run vertically through a purpose-built sealed flue cavity (the cavity must
remain sealed up to the terminal); PolyPro and a condensate drain is not required. An extension kit
can be purchased to extend the maximum length to 12m, see section C4 on page 20. Only the
Universal Vertical Power Flue (UVP-External) kit can be used for this installation type.
NOTE: 225mm wide x 240mm long 906624-Masonry flue liner extension kit can be purchased to add extra
protection for the high snow and rainfall areas.
NOTE: If any gap occurs in between the 400mm x 400mm masonry flashing and the chimney due to the
chimney dimensions, the suitable chimney cap flashing can be built as keeping the spigot diameter 225mm.

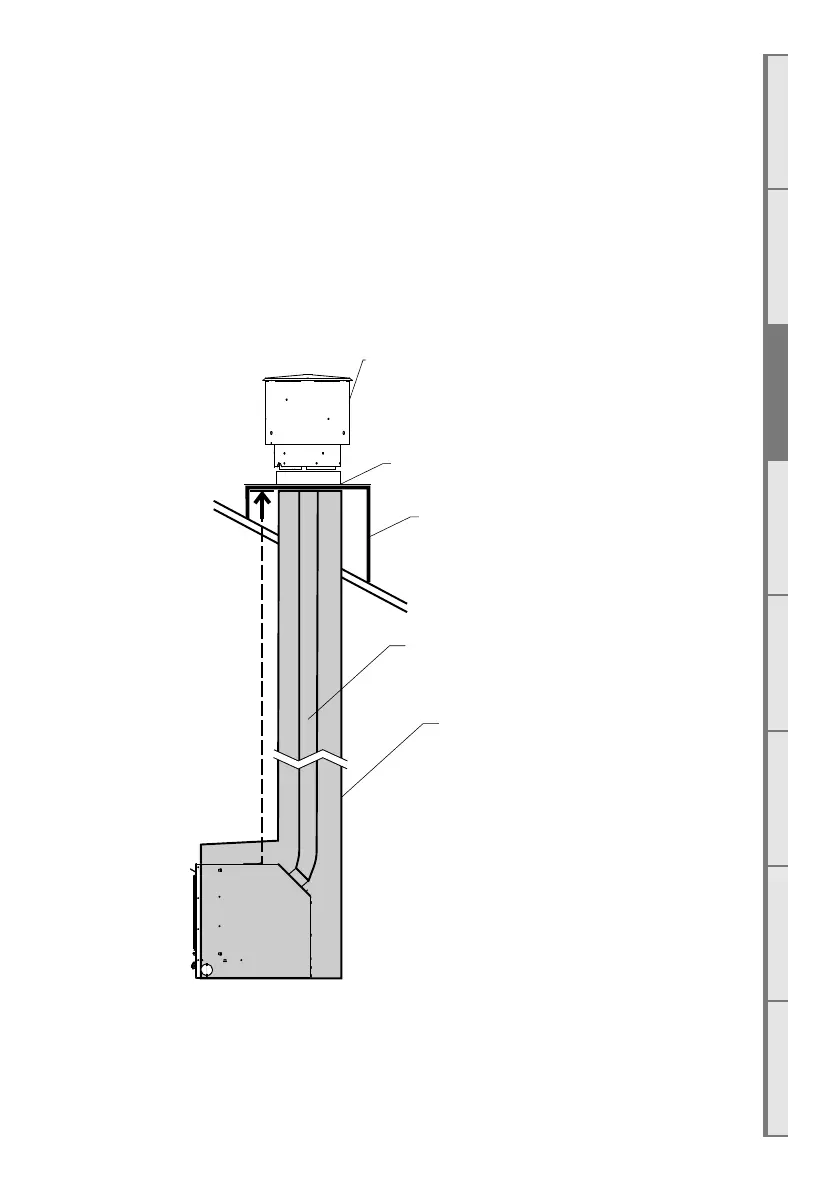

6m Max
Ø75mm ID / Ø100mm ID
Flexible Flue
Purpose-built Sealed
Flue Cavity
Universal Vertical
Power Flue (External)
Masonry
Flashing
Chimney
