Escea DF960 - A3 Product Dimensions

B
ACDEFGSERVICE
9
Important: Installations that are not specifically outlined in this manual
should be referred to the Escea Architectural Advisory Team.
Please email aa@escea.com
i.e. Hutch, under bench, recessed, and joinery enclosed installations.
i.e. Use of heat sensitive materials such as resin stone or laminated timber.
i.e. DF flue installations over 4 metres.
To ensure that your installation is fully complete, please use the “Installation Checklist” on page 51.

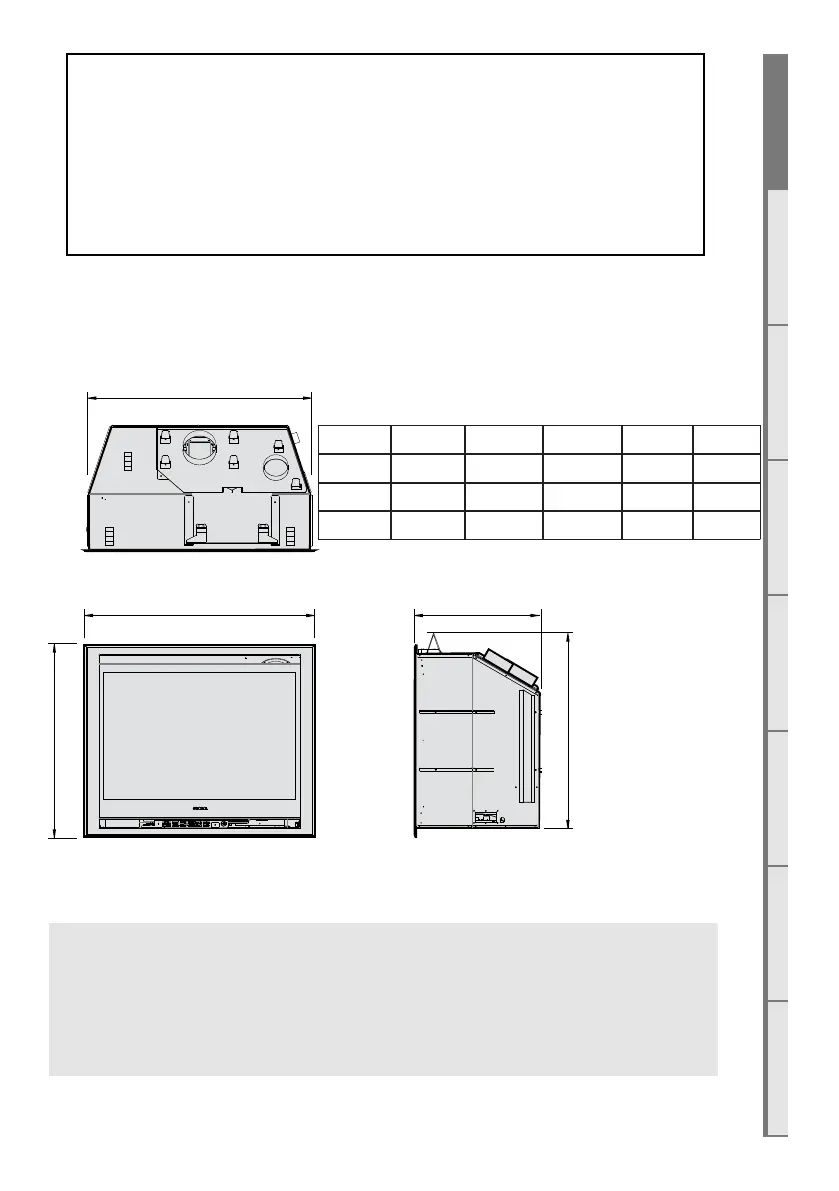

A3 Product Dimensions
NOTE: All outside dimensions taken from the appliance are with the standos attached
*Slim Fascia Dimensions.
A
E*
D*
C
B
A B C D* E*
DF700 693mm 387mm 596mm 711mm 593mm
DF960 943mm 402mm 596mm 961mm 593mm
DF990 943mm 402mm 884mm 961mm 881mm
END OF SECTION A
By the end of this section, you should have:
□ A framed false cavity
OR
□ A masonry cavity sized to suit the appliance
