Product Description and Installation Process
A1 Product Description
The Escea DF-Series gas fire is a room sealed gas appliance designed to be built into a masonry cavity
or a false chimney cavity. DF-series products are provided with stando rails to ensure adequate
clearances to combustible materials. DF990 is provided with an additional lintel spacer (see section;
creating the cavity). These appliances are flued using co-linear flexible aluminum flue (with PolyPro
flue extensions for some models) connected to a Power Flue. The user will control their fire with the
Radio Frequency (RF) remote that will normally be located in it’s wall mount cradle. In addition to the
RF remote the appliance has a single auxiliary On/O button on the unit. When not in operation it is
in a standby mode unless it is physically isolated from the mains supply.
A2 Recommended Install Process

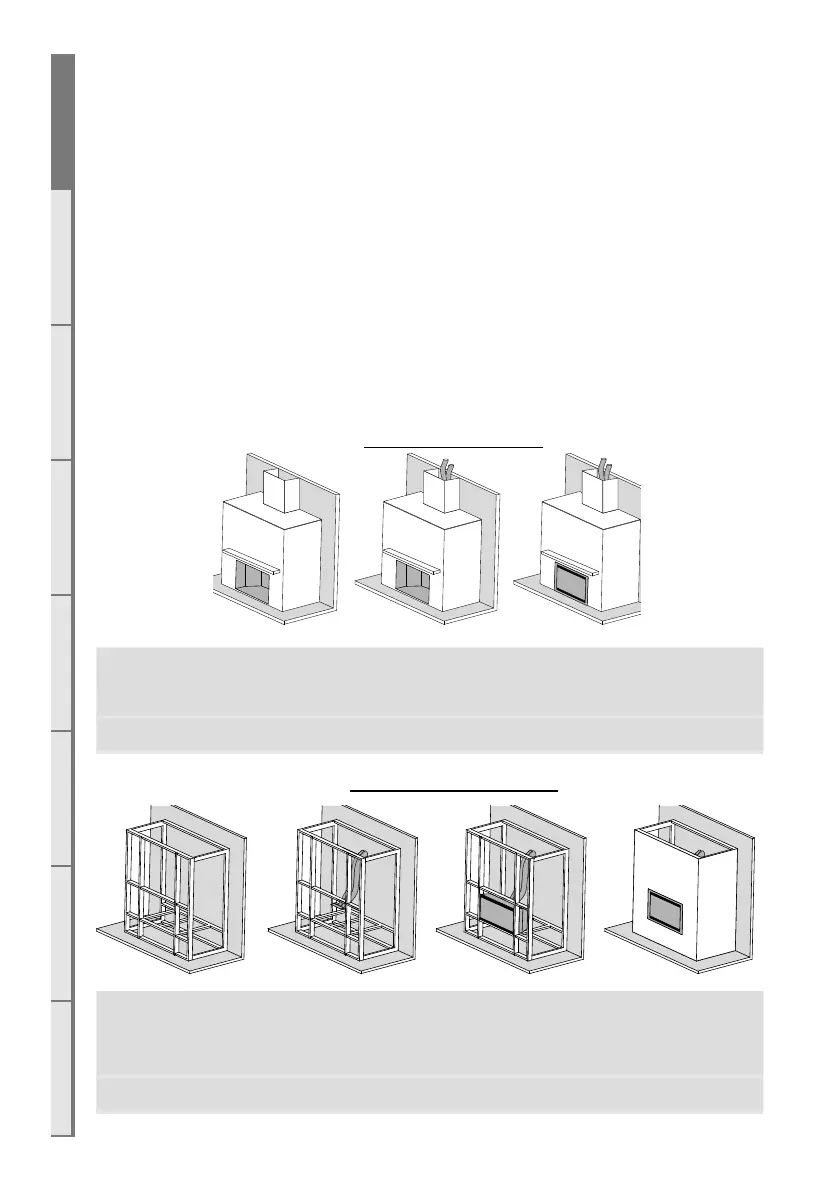

The following diagram illustrates the steps required to install your gas fire. The sequence in which you
choose to do these tasks will vary depending on your individual scenario. Please read these instructions
fully before proceeding with the installation.
Masonry Installation
Modifying the
cavity to suit
Install electrical / gas
connections and ue
system
Install appliance and
nish cavity
Finish installation,
t fascia and test
appliance
Section B Section C, D Section E Section F
False Cavity Installation
Create The Framed-
Cavity
Install electrical / gas
connections and ue
system
Install appliance and
nish cavity
Finish installation,
t fascia, test appli-
ance and clad the
cavity
Section B Section C, D Section E Section F
