B7 Television & Mantel Clearances
Television

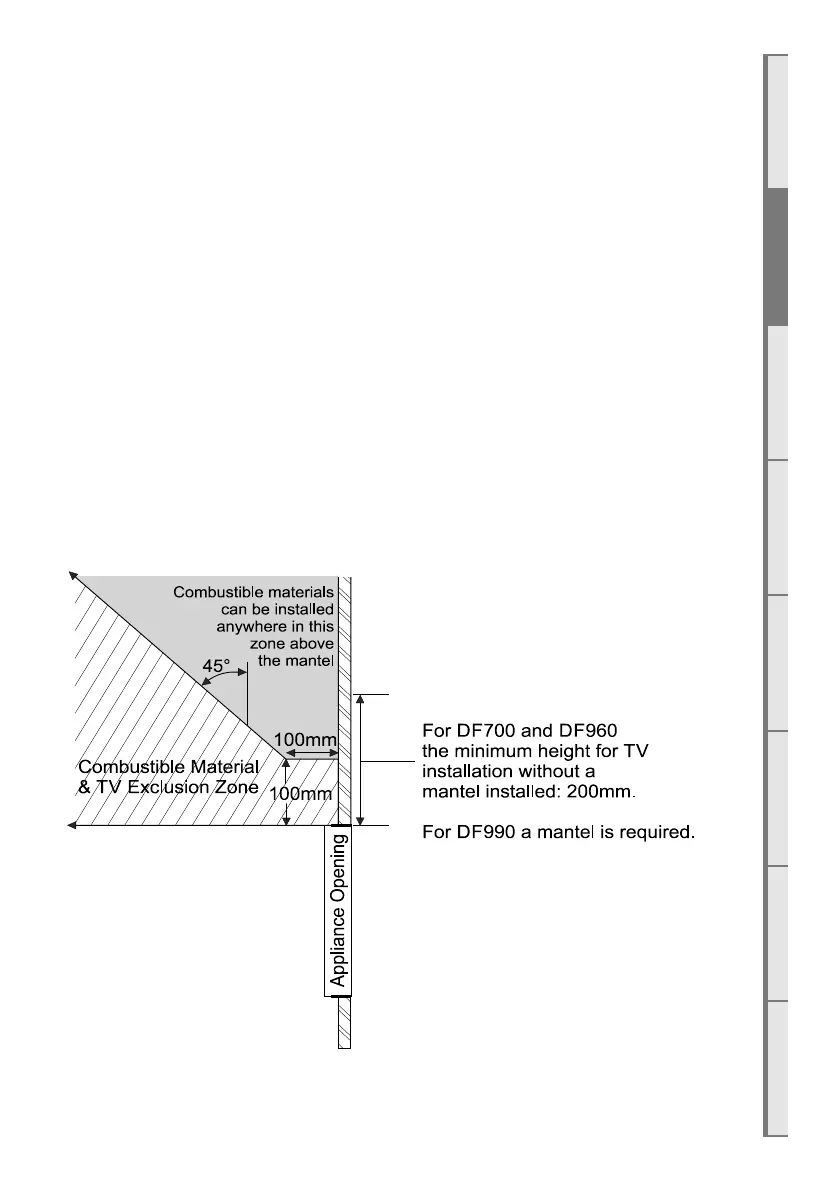

The diagram (shown below) shows the recommended minimum clearances for the location of any
electrical equipment (such as Plasma TV, LCD TV or home theatre) above a DF-Series gas fire.
For DF990 a mantel/recess is required to comply with our recommendation of TV installation.
Contact architectural advisory at aa@escea.com if you wish to install electrical equipment without a
mantel/with a recess.
NOTE: Dimensions from the top edge of the air opening.
NOTE: The television clearance recommendations are to be treated as a suggestion of a suitable installation
only. It is the responsibility of the end user to check the installation instructions of their electrical
appliances to ensure that the location in relation to the gas fire is suitable. Escea in no way guarantees or
takes responsibility that the recommended installation suggestion will be suitable for all electrical or home
entertainment appliances.
Mantel
Mantels or protruding ledges above the heater must not be installed lower than the dimension shown
to the right.
NOTE: Dimensions are from the top edge of the air opening.
