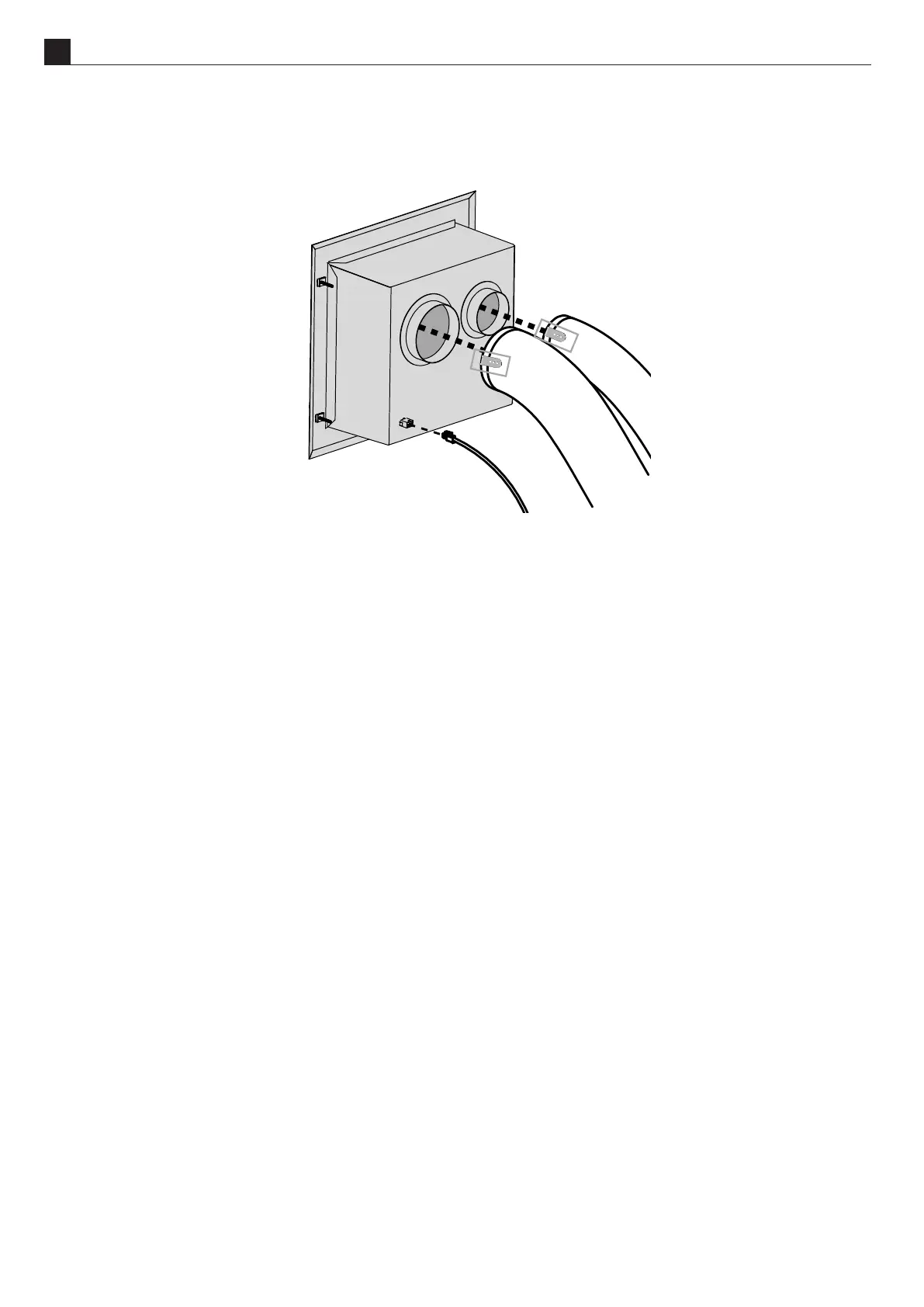

Aach the 100 mm and 75 mm exible aluminium ues to the spigots on the rear of the horizontal powerue
wall terminal using the hose band clamps supplied. Plug the powerue electrical cable into the back of the
horizontal powerue wall terminal.
Ensure that the electrical cable is rmly secured to the wall terminal or building to prevent damage or
disconnecon if pulled.
Fit the horizontal powerue wall terminal into the hole and x it in place, making sure the installaon is sealed
appropriately to prevent the ingress of water from outside the wall cladding.
NOTE: It is the responsibility of the installer to ensure the horizontal powerue wall terminal is installed
to all relevant building codes to ensure weather ghtness. This may necessitate the use of appropriate
ashing material where appropriate.


The following diagrams are excerpts from the Escea architect drawings and are available in full on our website.
These diagrams are recommendaons, and your installaon must comply with any local or naonal building
codes.
