Espressif ESP32-S2 User Manual

Chapter 1. Get Started

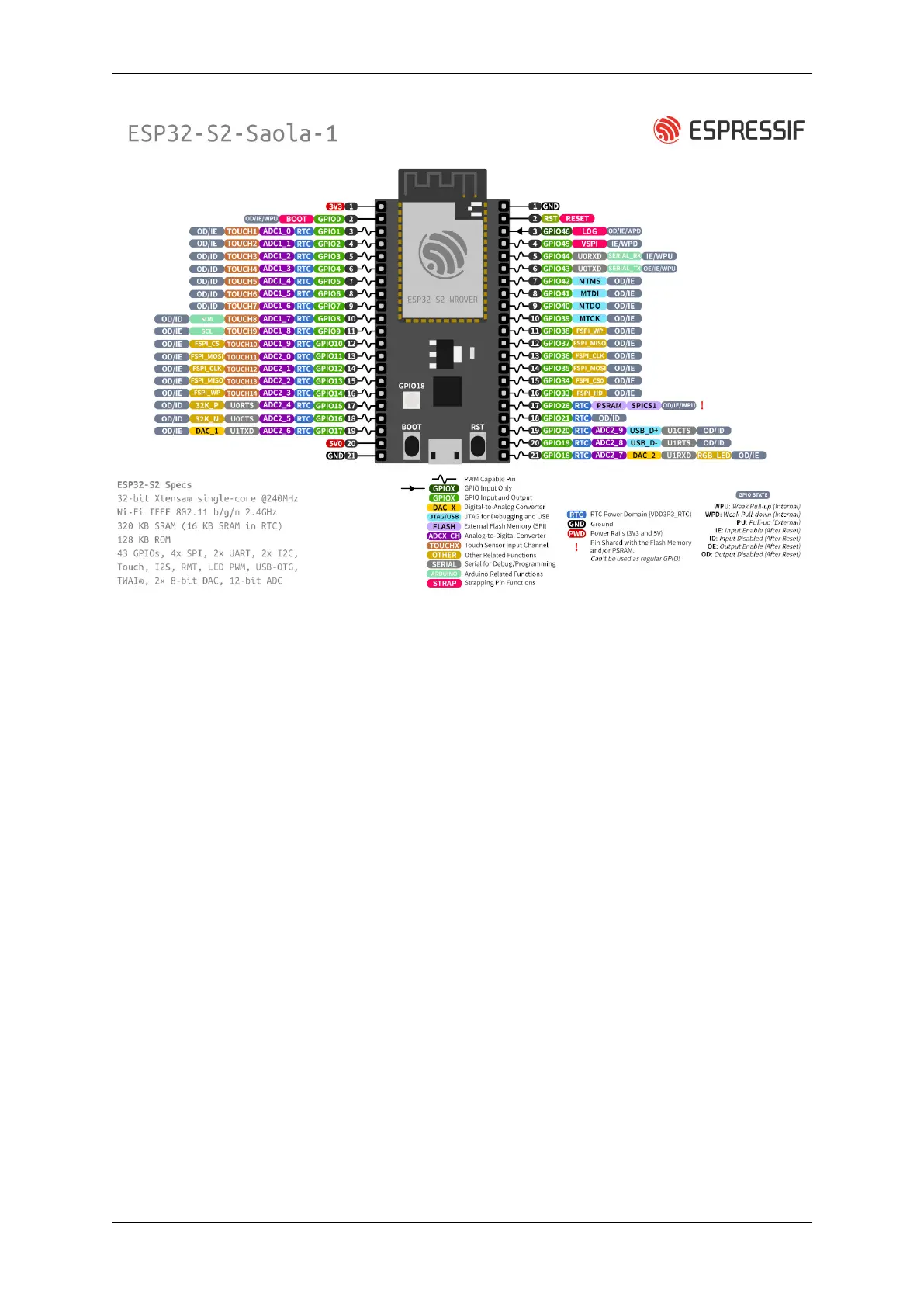

Fig. 5: ESP32-S2 Saola-1 Pin Layout (click to enlarge)
Related Documents
• ESP32-S2-Saola-1 Schematics (PDF)
• ESP32-S2-Saola-1 Dimensions (PDF)
• ESP32-S2 Datasheet (PDF)
• ESP32-S2-WROVER and ESP32-S2-WROVER-I Datasheet (PDF)
• ESP32-S2-WROOM and ESP32-S2-WROOM-I Datasheet (PDF)
• ESP Product Selector
For other design documentation for the board, please contact us at sales@espressif.com.
1.3.2 ESP32-S2-DevKitM-1(U)
This user guide provides information on Espressif’s small-sized development board ESP32-S2-DevKitM-1(U).
ESP32-S2-DevKitM-1(U) is a general-purpose development board based on ESP32-S2FH4 chip, which falls into
ESP32-S2 chip series. With a rich peripheral set and optimized pinout, this board allows rapid prototyping.
ESP32-S2-DevKitM-1 is embedded with ESP32-S2-MINI-1 module (on-board PCB antenna), while ESP32-S2-
DevKitM-1U with ESP32-S2-MINI-1U module (external antenna connector).
