Chapter 1. Get Started
Hardware Revision Details
This is the first revision of this board released.
Related Documents
• ESP32-S2 Series Chip Datasheet (PDF)
• ESP32-S2-SOLO & ESP32-S2-SOLO-U Module Datasheet (PDF)
• ESP32-S2-DevKitC-1 Schematic (PDF)
• ESP32-S2-DevKitC-1 PCB Layout (PDF)
• ESP32-S2-DevKitC-1 Dimensions (PDF)
• ESP32-S2-DevKitC-1 Dimensions source file (DXF) - You can view it with Autodesk Viewer online
For further design documentation for the board, please contact us at sales@espressif.com.
1.3.4 ESP32-S2-Kaluga-1 Kit v1.3
Older version: ESP32-S2-Kaluga-1 Kit v1.2
The ESP32-S2-Kaluga-1 kit v1.3 is a development kit by Espressif that is mainly created to:
• Demonstrate the ESP32-S2’s human-computer interaction functionalities
• Provide the users with the tools for development of human-computer interaction applications based on the
ESP32-S2
There are many ways of how the ESP32-S2’s abundant functionalities can be used. For starters, the possible use
cases may include:
• Smart home: From simplest smart lighting, smart door locks, smart sockets, to video streaming devices,
security cameras, OTT devices, and home appliances
• Battery-powered equipment: Wi-Fi mesh sensor networks, Wi-Fi-networked toys, wearable devices, health
management equipment
• Industrial automation equipment: Wireless control and robot technology, intelligent lighting, HVAC control
equipment, etc.
• Retail and catering industry: POS machines and service robots

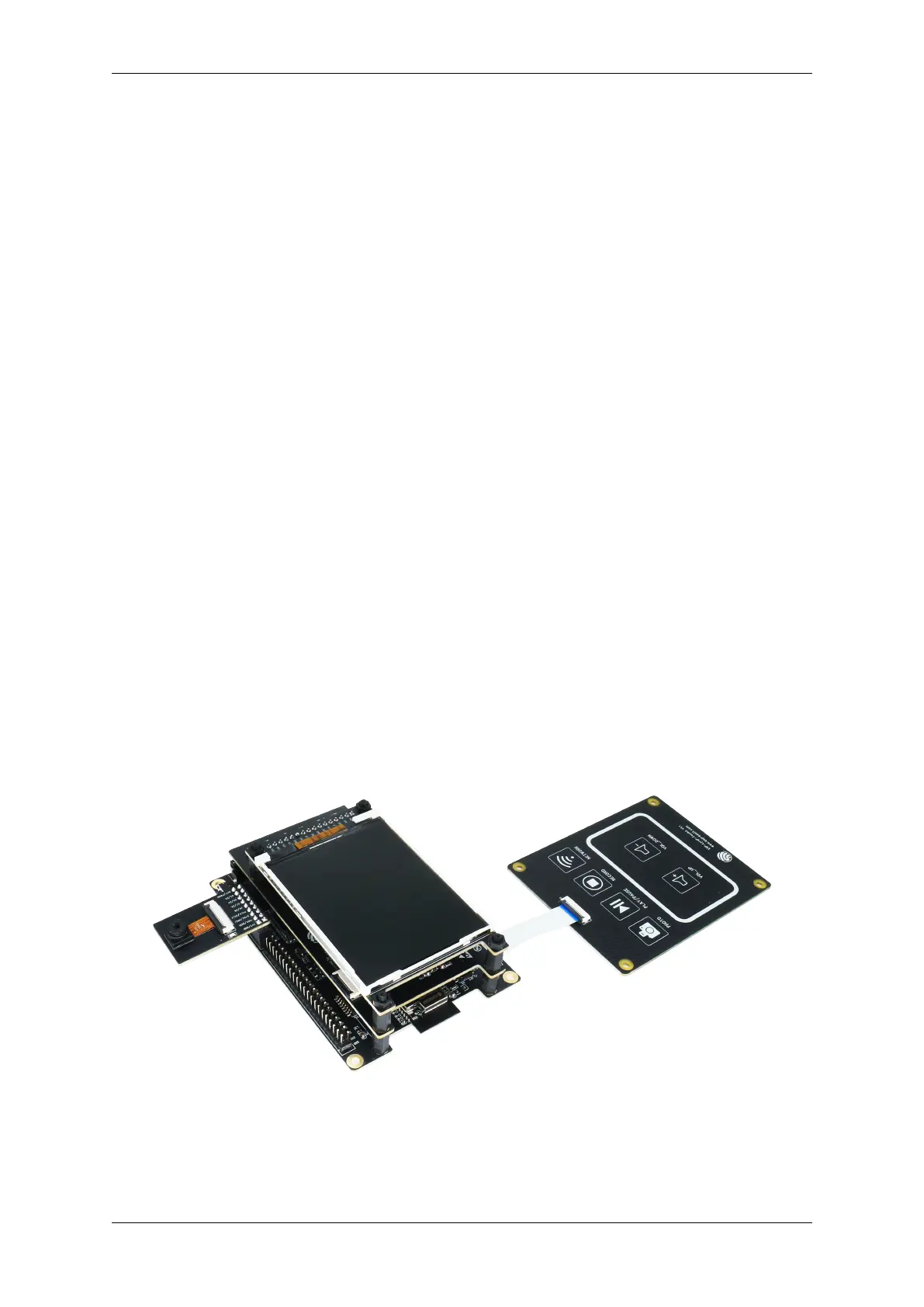

Fig. 14: ESP32-S2-Kaluga-1-Kit Overview (click to enlarge)
The ESP32-S2-Kaluga-1 kit consists of the following boards:
• Main board: ESP32-S2-Kaluga-1
Espressif Systems 20
Submit Document Feedback
Release v4.4
To Next Page
