Chapter 1. Get Started
Hardware Revision Details
This is the first revision of this board released.
Related Documents
• ESP32-S2-DevKitM-1(U) Schematics (PDF)
• ESP32-S2-DevKitM-1(U) PCB Layout (PDF)
• ESP32-S2-DevKitM-1(U) Dimensions (PDF)
• ESP32-S2 Series Datasheet (PDF)
• ESP32-S2-MINI-1 & ESP32-S2-MINI-1U Datasheet (PDF)
• ESP Product Selector
For other design documentation for the board, please contact us at sales@espressif.com.
1.3.3 ESP32-S2-DevKitC-1
This user guide will help you get started with ESP32-S2-DevKitC-1 and will also provide more in-depth information.
ESP32-S2-DevKitC-1 is an entry-level development board based on ESP32-S2-SOLO (on-board PCB antenna) or
ESP32-S2-SOLO-U (external antenna connector), which are two general-purpose modules with a 4 MB SPI flash.
This board integrates complete Wi-Fi functions.
Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either
connect peripherals with jumper wires or mount ESP32-S2-DevKitC-1 on a breadboard.

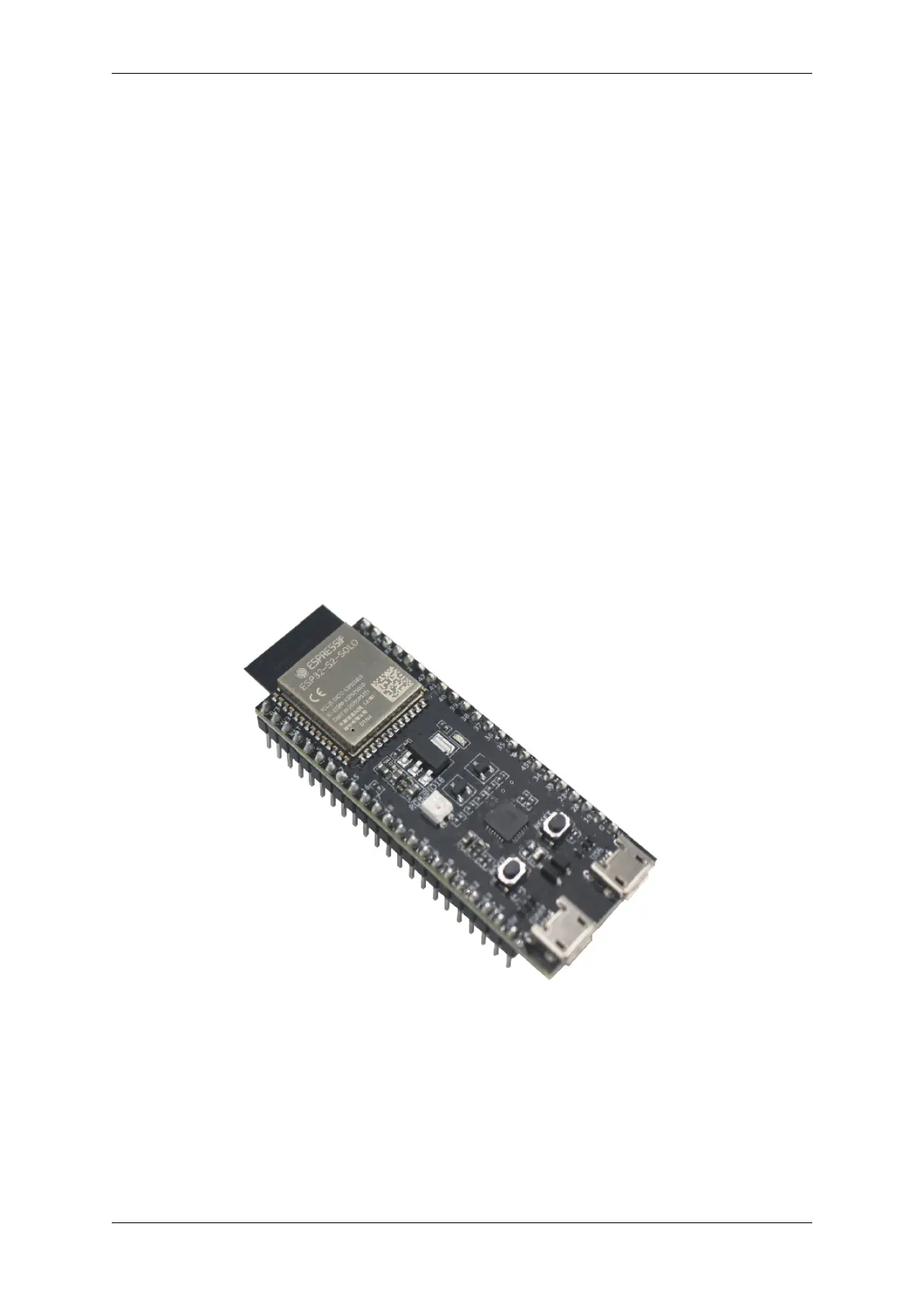

Fig. 10: ESP32-S2-DevKitC-1 with the ESP32-S2-SOLO Module
The document consists of the following major sections:
• Getting Started: Overview of ESP32-S2-DevKitC-1 and hardware/software setup instructions to get started.
• Hardware Reference: More detailed information about the ESP32-S2-DevKitC-1’s hardware.
• Hardware Revision Details: Revision history, known issues, and links to user guides for previous versions (if
any) of ESP32-S2-DevKitC-1.
• Related Documents: Links to related documentation.
