8.4.4 CBN42x.1 Sensor Cable

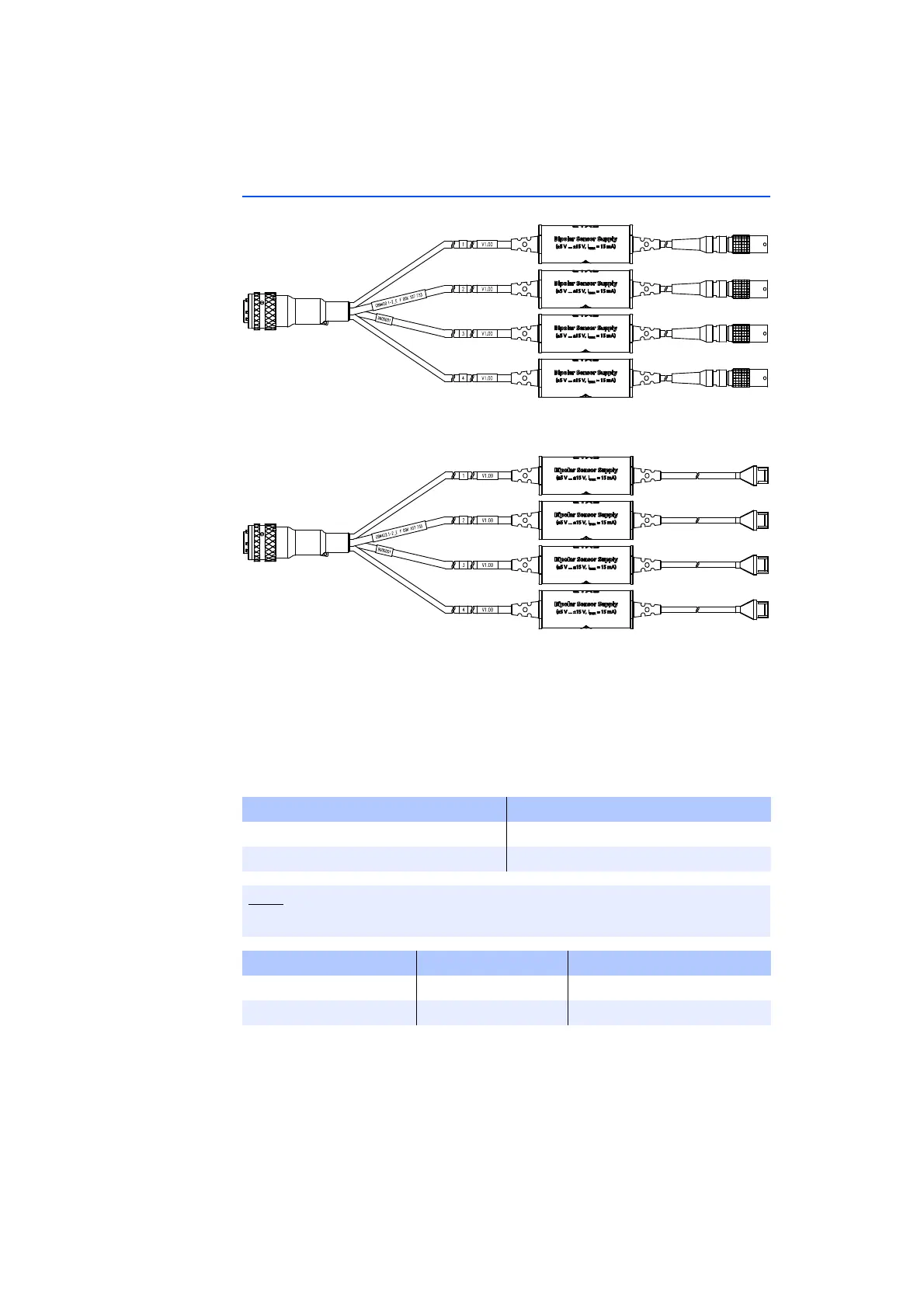

Fig. 8-27 CBN420.1 Sensor Cable
Fig. 8-28 CBN422.1 Sensor Cable
The CBN42x.1 Sensor Cable Providing Bipolar Sensor Supply consists of four
identical active current measuring channels that are integrated in a splitter cable
and designed for the combined use with the ES411.1 / ES415.1 A/D module.
Application area: potential-free measuring of high currents with current trans-
formers from LEM (series HTR) or comparable current transformers and with
other sensors with bipolar supply voltage.
Product Sensor connection
CBN420.1 LEMO 1B PHG
CBN422.1 Molex 51191
For additional information, see the user's guide of the product.
Product Length Order number
CBN420.1-2m 2 m F 00K 107 564
CBN422.1-2m 2m F 00K 107 566
