ETAS ES415.1 - Wiring Examples

ES415.1 - User’s Guide 53
ETAS
5.5 Wiring Examples
5.5.1 ES400 Modules with additional ETAS Modules (Measurement and Calibration)

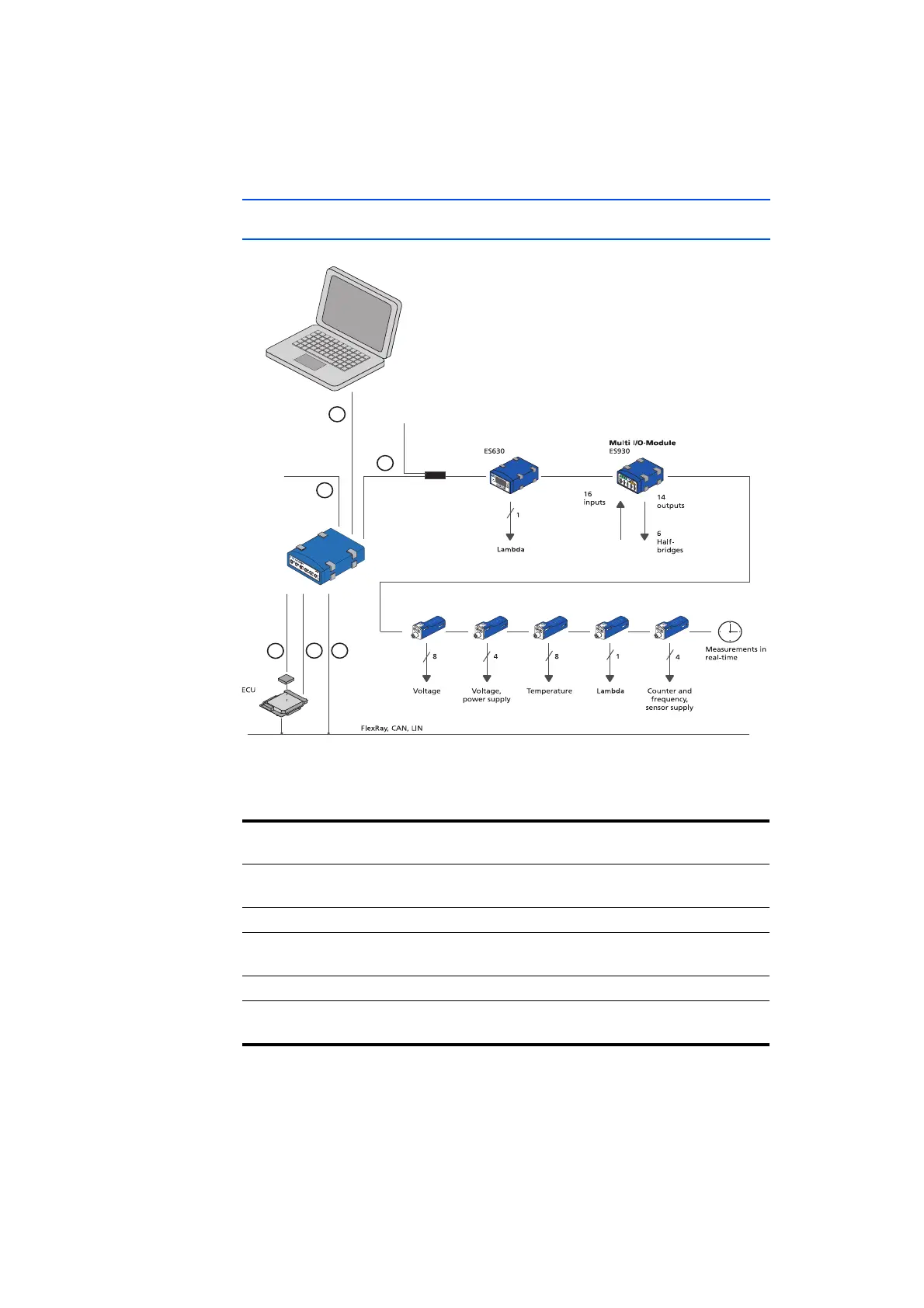

Fig. 5-16 ES400 Modules with add. ETAS Modules (Measurement and Calibra-
tion)
Cable in
Fig. 5-16
Function Order name
1 Power supply cable CBP120,
CBP1205
2 Host connection cable CBE100
3 Power supply and Ethernet cable Daisy Chain
modules
CBEP430,
CBEP4305
4 ETK connection cable CBM150
5, 6 CAN/LIN/FLX connection cable (CAN/LIN/FLX
combined)
CBCFI100
Power Supply
Daisy Chain Modules
4
3
5
2
1
ETK
CAN
FLX
6
ES411
ES413
ES415
ES595
ETH
Power Supply
ES410
ES420
ES421
ES430
ES432
ES441
