7.9.3 “Sensor” Connector

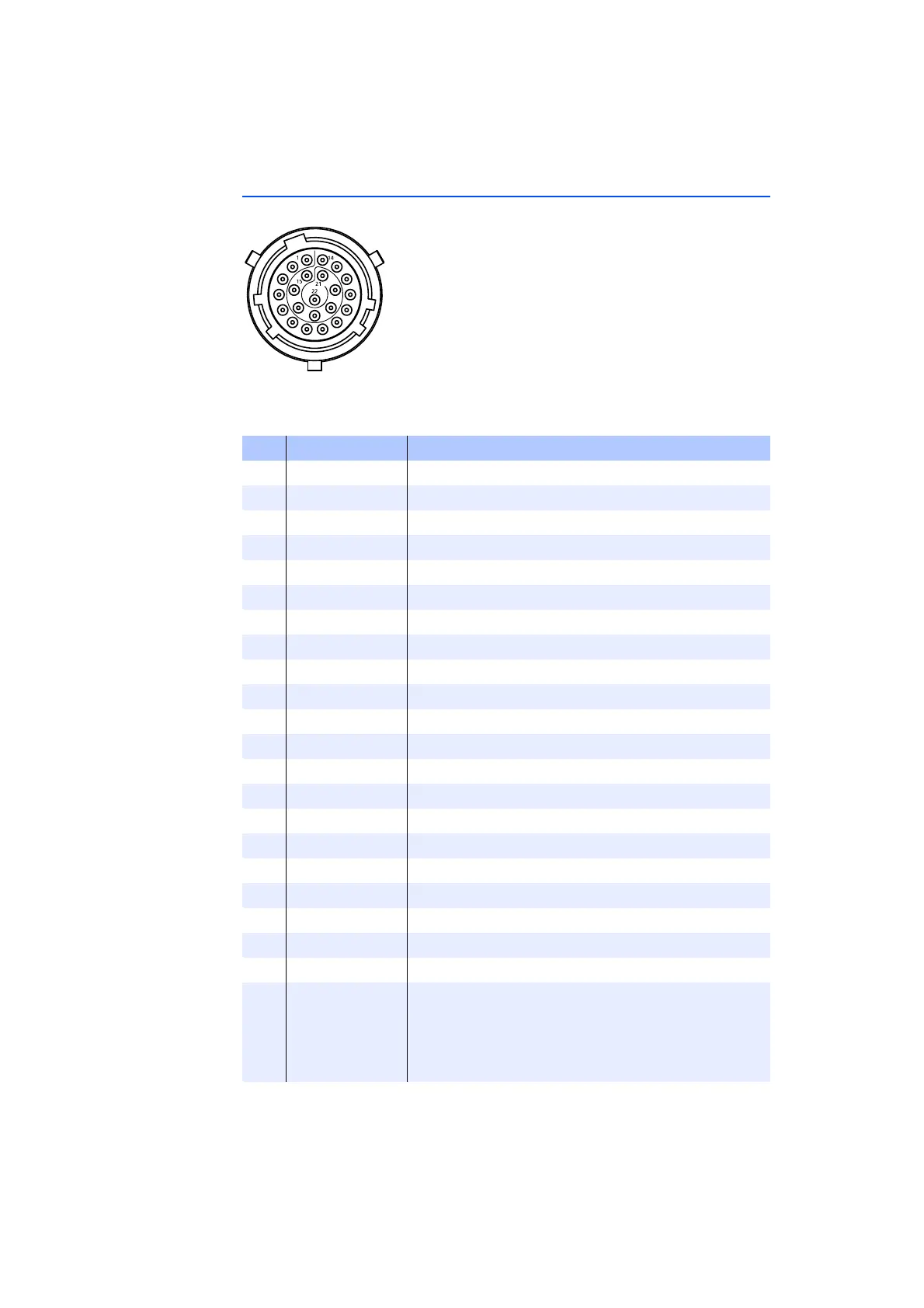

Fig. 7-4 “Sensor” Connector
Pin Signal Meaning
1 CH2 In+ Sensor channel 2, input plus
2 CH2 SGND Sensor channel 2, Sensor supply voltage, GND
*)
3 CH2 S+ Sensor channel 2, Sensor supply voltage, plus
4 CH3 SGND Sensor channel 3, Sensor supply voltage, GND
*)
5 CH3 S+ Sensor channel 3, Sensor supply voltage, plus
6 CH3 In- Sensor channel 3, input minus
7 CH3 In+ Sensor channel 3, input plus
8 CH4 In+ Sensor channel 4, input plus
9 CH4 In- Sensor channel 4, input minus
10 CH4 S+ Sensor channel 4, Sensor supply voltage, plus
11 CH4 SGND Sensor channel 4, Sensor supply voltage, GND
*)
12 CH1 S+ Sensor channel 1, Sensor supply voltage, plus
13 CH1 SGND Sensor channel 1, Sensor supply voltage, GND
*)
14 CH1 In+ Sensor channel 1, input plus
15 CH2 In- Sensor channel 2, input minus
16 CH2 TEDS+ Sensor channel 2, TEDS+
17 CH3 TEDS+ Sensor channel 3, TEDS+
18 TEDS+ Cable, TEDS+
19 CH4 TEDS+ Sensor channel 4, TEDS+
20 CH1 TEDS+ Sensor channel 1, TEDS+
21 CH1 In- Sensor channel 1, input -
22 CH1 TEDS-
CH2 TEDS-
CH3 TEDS-
CH4 TEDS-
TEDS-
Sensor channel 1, TEDS-
Sensor channel 2, TEDS-
Sensor channel 3, TEDS-
Sensor channel 4, TEDS-
Cable, TEDS-
*): connected with operating voltage ground
