ES415.1 - User’s Guide 19
ETAS Hardware Description
4 Hardware Description
This chapter contains information on the following topics:
• "Features of the ES415.1" on page 19
• "Block Diagram" on page 20
• "Sensor Channels" on page 21
• "Data Transfer" on page 26
• "Power Supply" on page 31
• "Configuration" on page 33
• "Tool Integration" on page 33
• "Firmware Update" on page 33
• "Calibration" on page 33
4.1 Features of the ES415.1

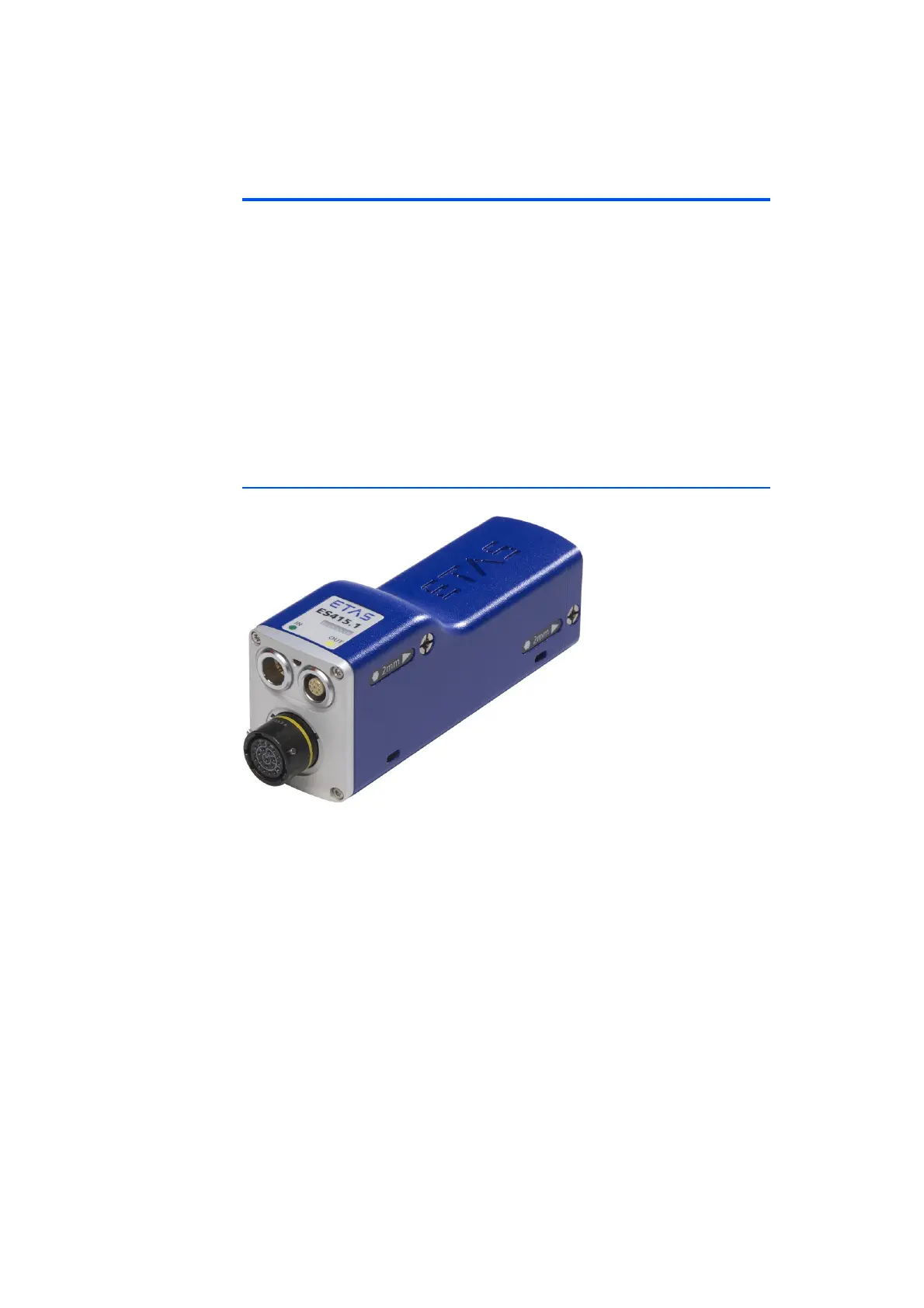

Fig. 4-1 ES415.1 Housing
The ES415.1 High Definition A/D Module with Sensor Supply is a member of the
family of ES400-Modules. The ES415.1 can acquire analog voltages at four input
channels. There is a sensor supply for every channel.
• 4 electrically isolated A/D channels, separately configurable
• Measure range 100 mV to 60 V
• Signal conditioning cable available for expanded measure ranges
• Sample rate 0.5 Hz to 100 kHz (measuring and calibrating)
• Adjustable short circuit-proof sensor supply voltage (5 V to 15 V)
• Auto detect and configuration of sensors possible with TEDS (Transducer
Electronic Data Sheet)
For the complete technical data of the ES415.1, refer to the chapter "Technical
Data" on page 70.
