7.9 Pin Assignment
This chapter contains information on the following topics:
• "“IN” Connector" on page 82
• "“OUT” Connector" on page 83
• "“Sensor” Connector" on page 84
7.9.1 “IN” Connector

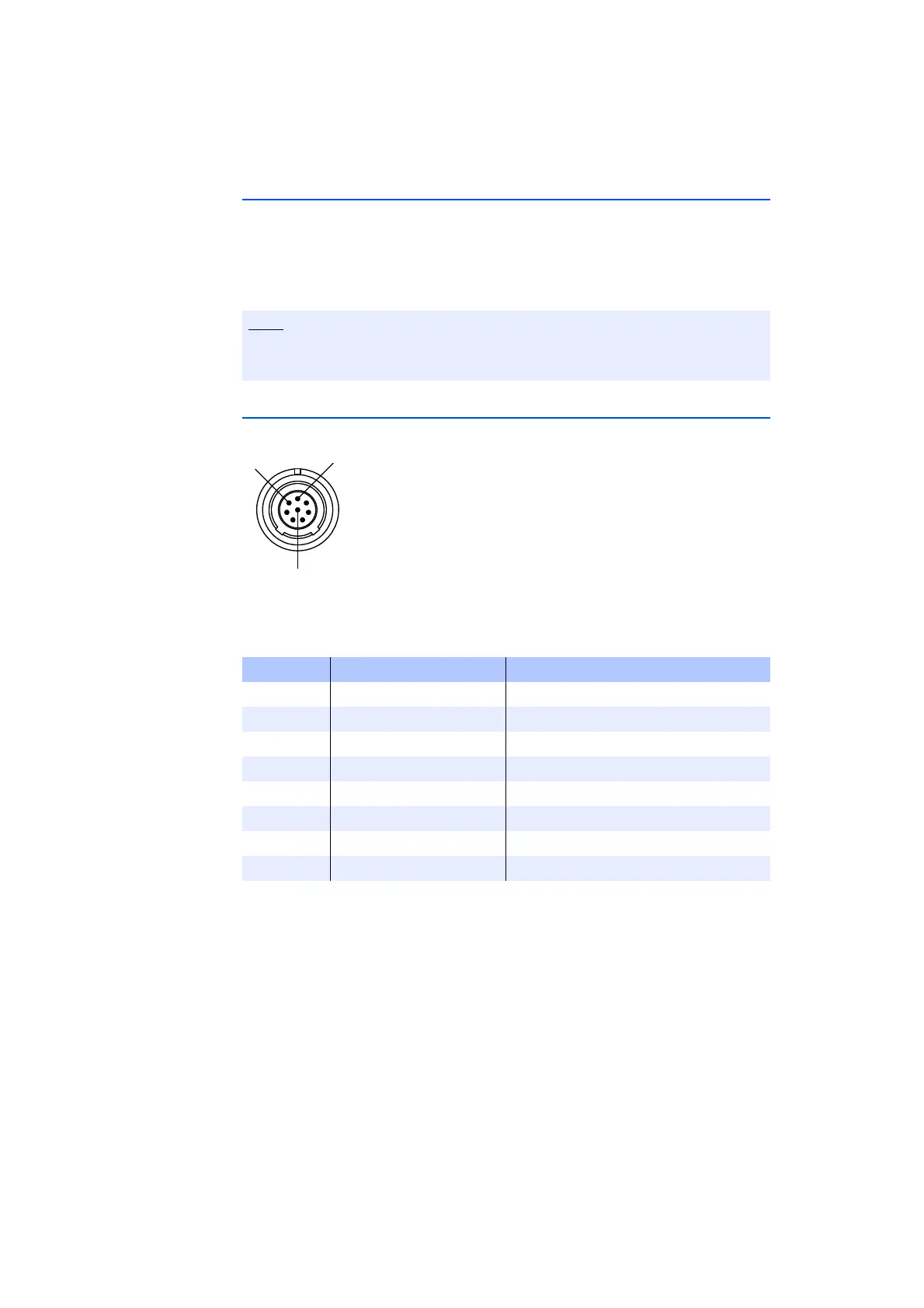

Fig. 7-2 “IN” Connector
The following plug is mounted on "IN" connector:
LEMO 1B 8-pin L-coding (connection identified in green)
All connectors are shown with a view of the front of the ES415.1.
All shields are at case potential.
Pin Signal Meaning
1 UBatt Operating voltage
2 Ground Ground
3 RX- Received data, minus
4 TX- Send data, minus
5 RX+ Received data, plus
6 Ground Ground
7 UBatt Operating voltage
8 TX+ Send data, plus
