8.1.2 CBEP410.1 Cable

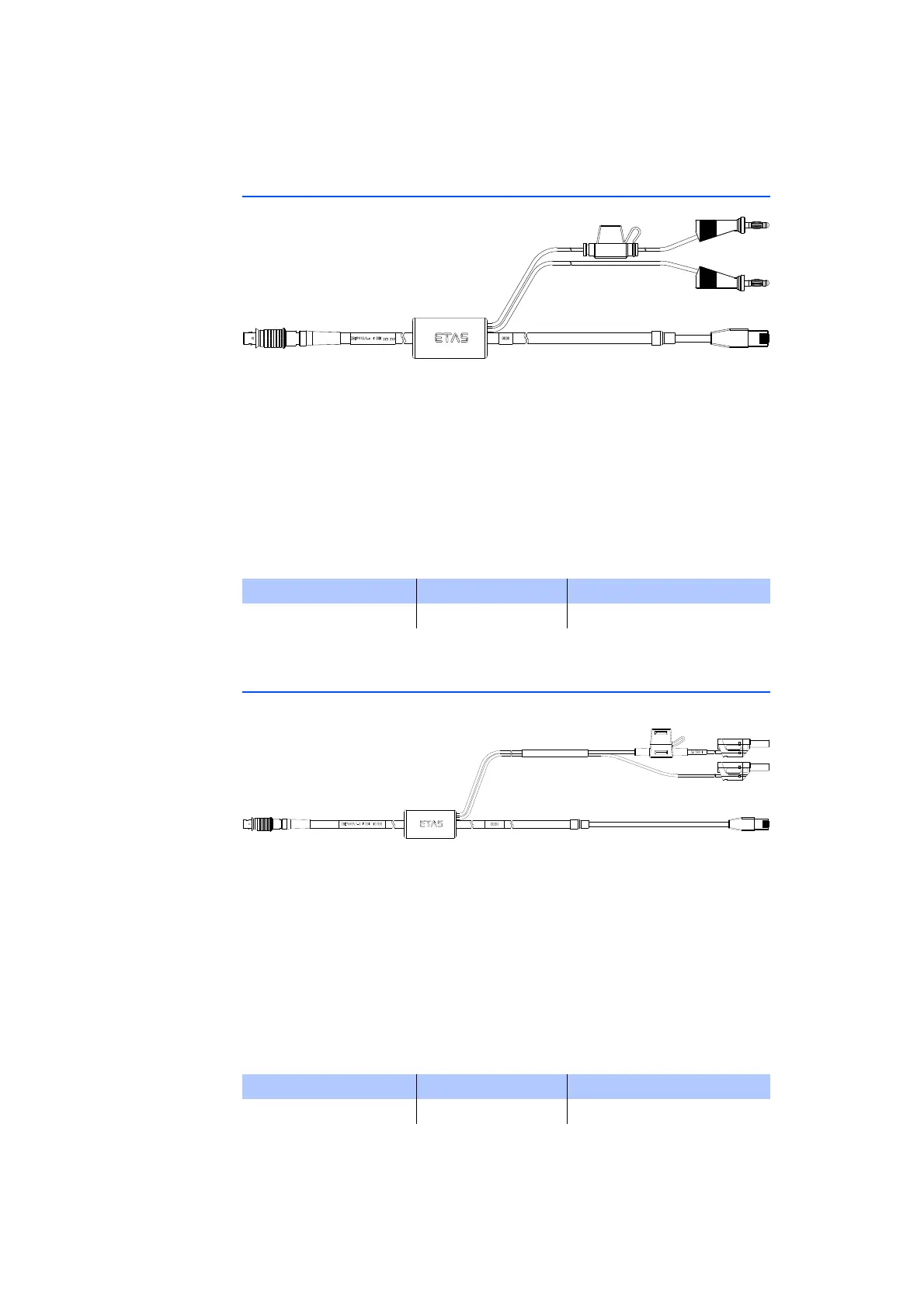

Fig. 8-1 CBEP410.1 Cable
Connection of an ES4xx/ES63x/ES93x module to PC and power supply (stand-
alone operation). Supply battery in the vicinity of the module.
Not compatible with ES610, ES611, ES620 and ES650. For connecting this mod-
ules use CBEP120 cable.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C / -40 °F to +257 °F
8.1.3 CBEP4105.1 Cable
Fig. 8-2 CBEP4105.1 Cable
Connection of an ES4xx/ES63x/ES93x module to PC and power supply (stand-
alone operation). Supply battery in the vicinity of the module.
Not compatible with ES610, ES611, ES620 and ES650. For connecting this mod-
ules use CBEP120 cable.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C / -40 °F to +257 °F
Product Length Order number
CBEP410.1-3 3 m F 00K 104 927
Product Length Order number
CBEP4105.1-3 3 m F 00K 110 026
