8.1.6 CBEP420.1 Cable

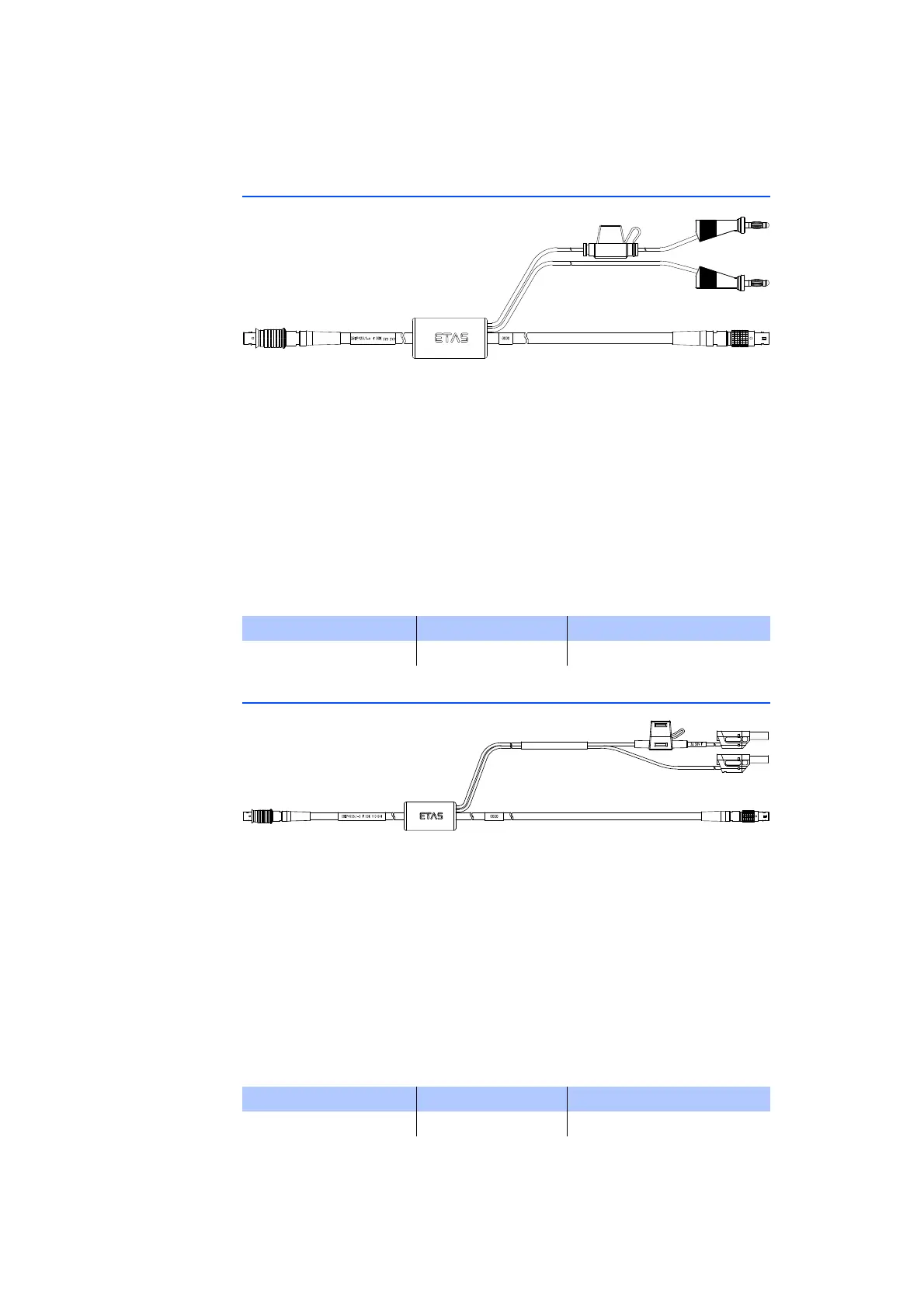

Fig. 8-5 CBEP420.1 Cable
Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x measurement
module with an ES600 network module or ES592/ES593-D/ES595 interface
module (if the current consumption of the connected ES4xx/ES63x chain exceeds
2.5 A), an ES1135 simulation/system controller card or an ES720 Drive Recorder.
Not compatible with ES610, ES611, ES620 and ES650. For connecting this mod-
ules use CBEP120 cable.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C / -40 °F to +257 °F
8.1.7 CBEP4205.1 Cable
Fig. 8-6 CBEP4205.1 Cable
Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x measurement
module with an ES600 network module or ES592/ES593-D/ES595 interface
module (if the current consumption of the connected ES4xx/ES63x chain exceeds
2.5 A), an ES1135 simulation/system controller card or an ES720 Drive Recorder.
Not compatible with ES610, ES611, ES620 and ES650. For connecting this mod-
ules use CBEP120 cable.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F
Product Length Order number
CBEP420.1-3 3 m F 00K 105 292
Product Length Order number
CBEP4205.1-3 3 m F 00K 110 041
