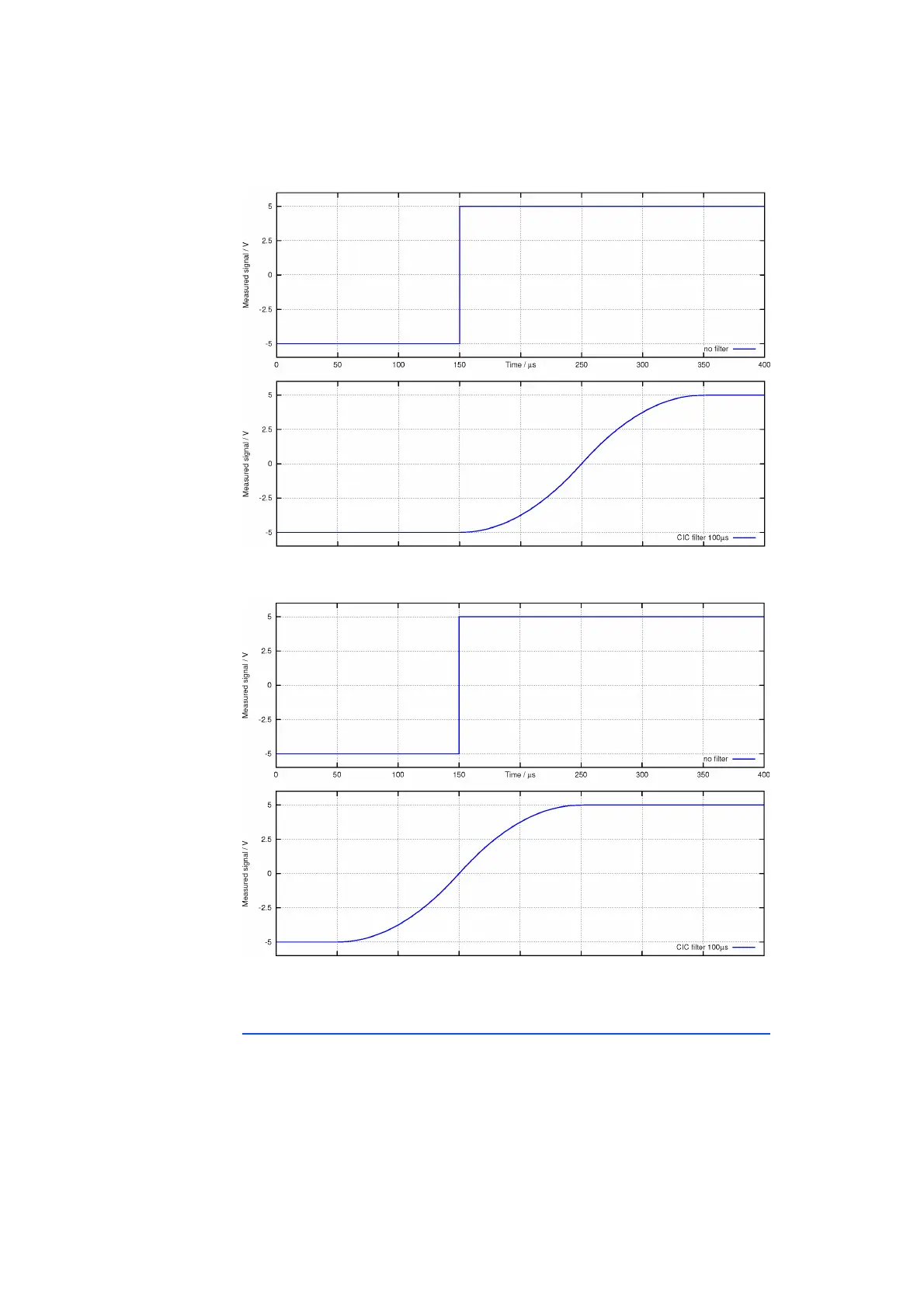

ETAS ES415.1 - Maximum Input and Common-Mode Voltages; Fig. 4-4 Filter A: F C,CIC = 10 Khz (Without Compensation of the Group Delay); Fig. 4-5 ES415.1 Filter B: F C,CIC = 10 Khz (with Compensation of the Group Delay)

ES415.1 - User’s Guide 23
ETAS Hardware Description
Fig. 4-4 Filter A: f
C,CIC
= 10 kHz (without compensation of the group delay)
Fig. 4-5 ES415.1 Filter B: f
C,CIC
= 10 kHz (with compensation of the group
delay)
4.3.5 Maximum Input and Common-Mode Voltages
The maximum input voltage between two inputs and the maximum voltage
between an input and the case ground is 60 V DC/ 30 V AC. For an explanation
of the maximum input and common-mode voltages, see Fig. 4-6 on page 24 and
the example.
