8.1.10 CBEP430.1 Cable

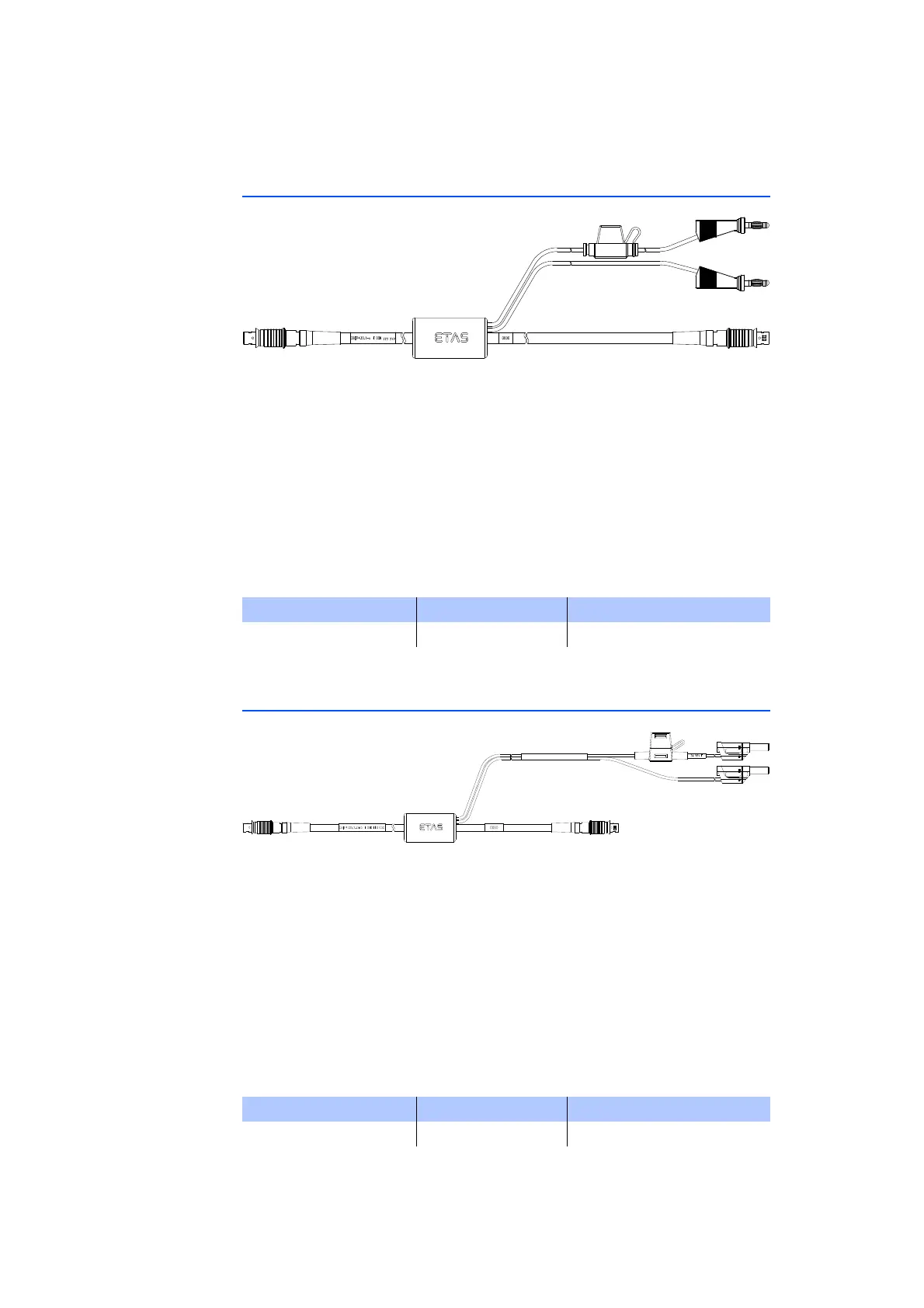

Fig. 8-9 CBEP430.1 Cable
To chain ES4xx/ES63x/ES93x modules and connect an ES4xx/ES63x/ES93x chain
to an ES910.3 Rapid Prototyping module. Additional connection to the power
supply to compensate for voltage losses in long chains.
Not compatible with ES59x, ES6xx, ES11xx. For connecting this modules use
CBE130 or CBE140 cable.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C / -40 °F to +257 °F
8.1.11 CBEP4305.1 Cable
Fig. 8-10 CBEP4305.1 Cable
To chain ES4xx/ES63x/ES93x modules and connect an ES4xx/ES63x/ES93x chain
to an ES910.3 Rapid Prototyping module. Additional connection to the power
supply to compensate for voltage losses in long chains.
Not compatible with ES59x, ES6xx, ES11xx. For connecting this modules use
CBE130 or CBE140 cable.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C / -40 °F to +257 °F
Product Length Order number
CBEP430.1-0m5 0.5 m F 00K 104 928
Product Length Order number
CBEP4305.1-0m5 0.5 m F 00K 110 030
