7.9.2 “OUT” Connector

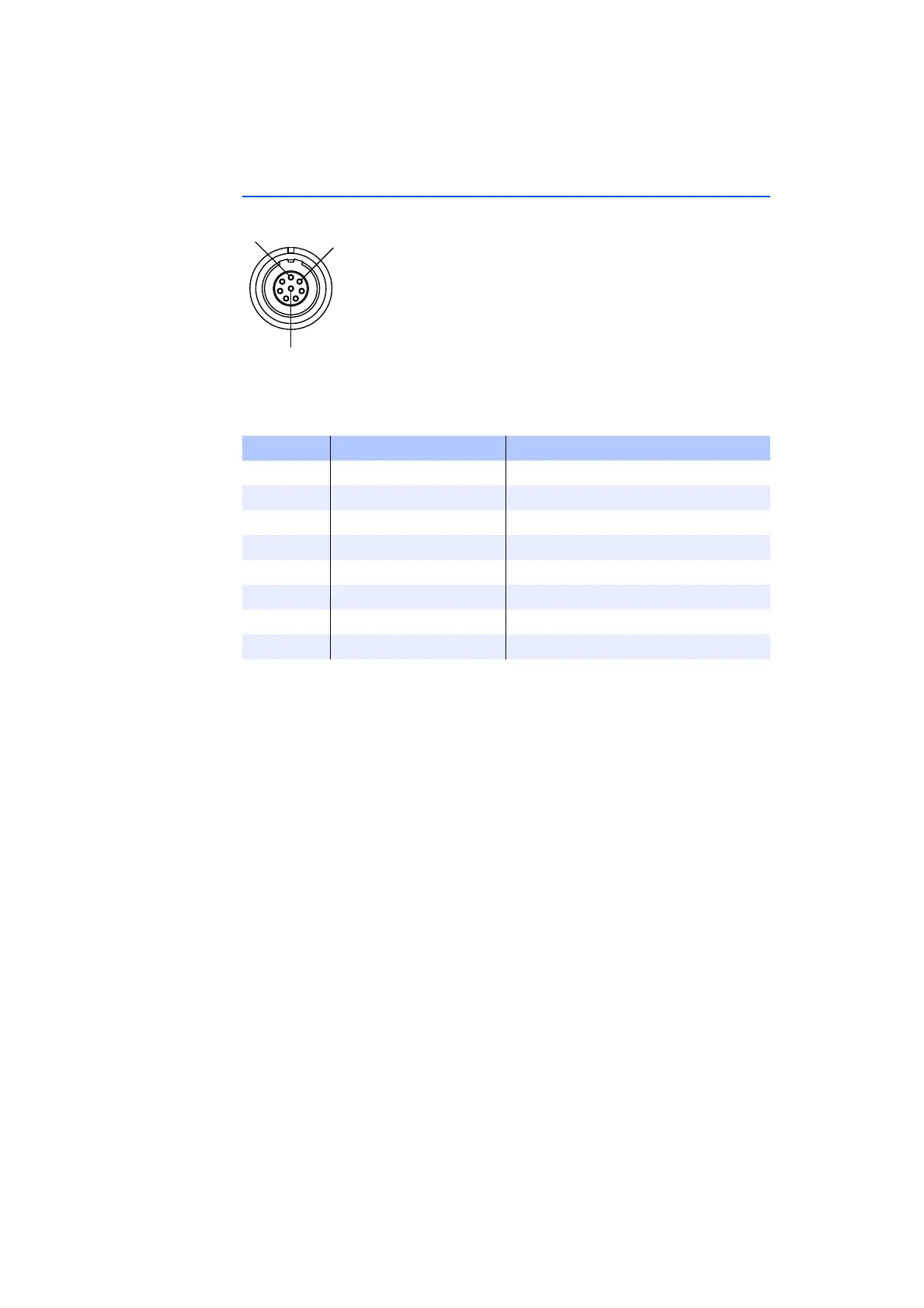

Fig. 7-3 “OUT” Connector
The following socket is mounted on "OUT" connector:
LEMO 1B 8-pin A-coding (connection identified in yellow)
Pin Signal Meaning
1 UBatt Operating voltage
2 UBatt Operating voltage
3 Ground Ground
4 RX+ Received data, plus
5 TX- Send data, minus
6 RX- Received data, minus
7 Ground Ground
8 TX+ Send data, plus
