ETAS ES415.1 - ES400 Modules with ES910.3 (Rapid Prototyping); Fig. 5-18 ES400 Modules with ES910.3 (Rapid Prototyping)

ES415.1 - User’s Guide 55
ETAS
5.5.3 ES400 Modules with ES910.3 (Rapid Prototyping)

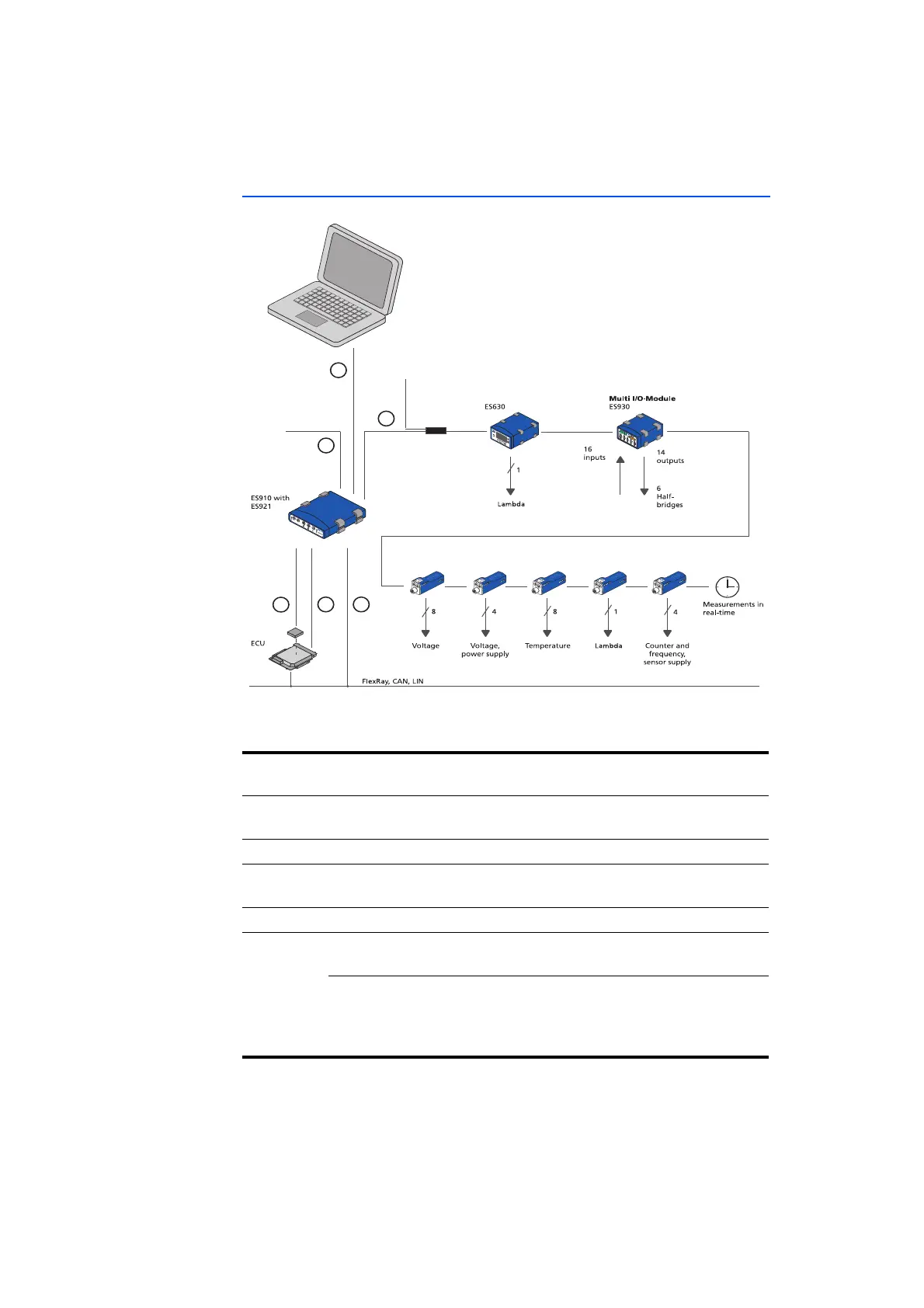

Fig. 5-18 ES400 Modules with ES910.3 (Rapid Prototyping)
Cable in
Fig. 5-18
Function Order name
1 Power supply cable CBP120,
CBP1205
2 PC connection cable CBE200
3 Power supply and Ethernet cable Daisy Chain
modules
CBEP430,
CBEP4305
4 ETK connection cable CBM150
5, 6 CAN/LIN/FLX connection cable (CAN/LIN/FLX
combined) at ES910.3, at ES921.1
CBCFI100
CAN connection cable (CAN only), at ES910.3,
at ES921.1
CBAC130,
CBAC140,
CBAC150,
CBCX130
Power Supply
Daisy Chain Modules
4
3
5
Power Supply
2
1
ETK
CAN
CAN
6
ES411
ES413
ES415
ES410
ES420
ES421
ES430
ES432
ES441
