8.4.3 CBN41x.1 Current Probe

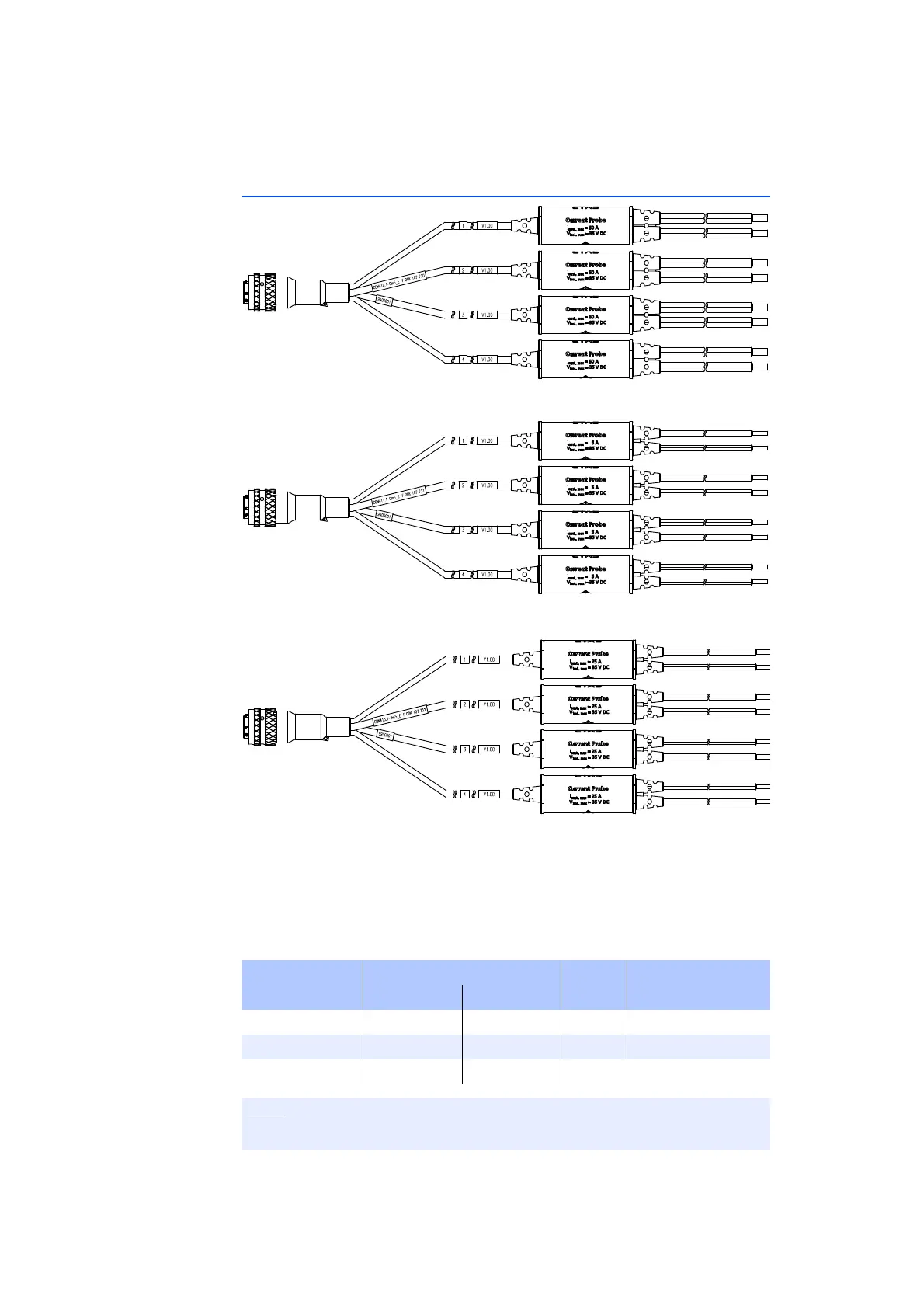

Fig. 8-24 CBN410.1 Current Probe
Fig. 8-25 CBN411.1 Current Probe
Fig. 8-26 CBN413.1 Current Probe
The CBN41x.1 Current Probe consists of four identical active current measuring
channels that are integrated in a splitter cable and designed for the combined
use with the ES411.1 / ES415.1 A/D module.
Application area: Measuring high currents
Temperature rated for: -40 to +85°C
Product Measurement Range Length Order number
Short-Term Continuous
CBN410.1-0m5 ±100 A ±60 A 0.5 m F 00K 107 722
CBN411.1-0m5 ±5 A ±5 A 0.5 m F 00K 107 723
CBN413.1-0m5 ±30 A ±25 A 0.5 m F 00K 107 724
Note
For additional information, see the user's guide of the product.
