8.2 Ethernet Cable
This chapter contains information on the following cables:
• "CBE400.2 Cable" on page 92
• "CBE401.1 Cable" on page 92
• "CBE430.1 Cable" on page 93
• "CBE431.1 Cable" on page 93
• "CBEX400.1 Cable" on page 94
• "ES4xx_BRIDGE" on page 94

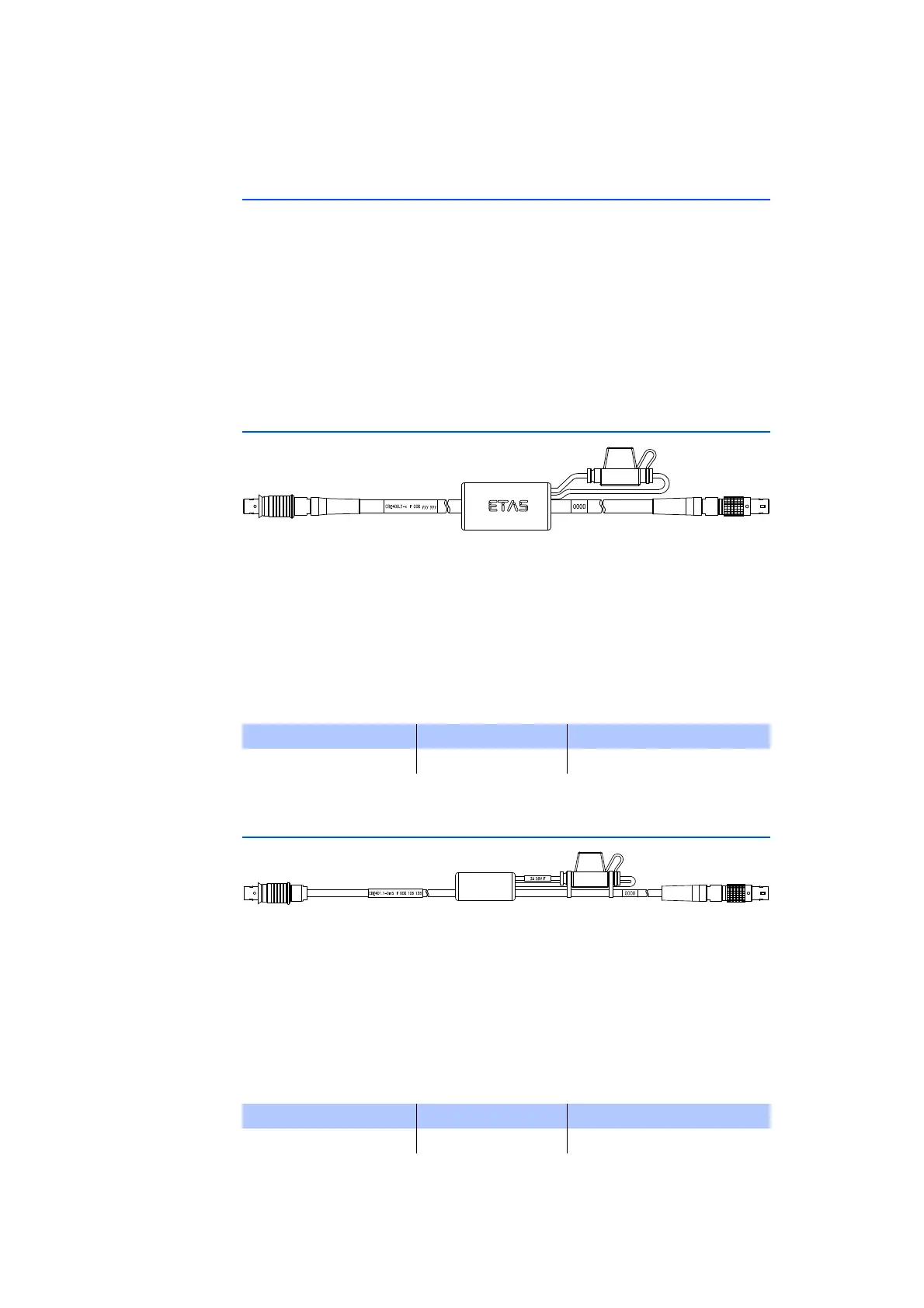

8.2.1 CBE400.2 Cable
Fig. 8-11 CBE400.2 Cable
Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x measuring
module at an ES600 network module or at an ES592/ES593-D/ES595 interface
module.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C / -40 °F to +257 °F
8.2.2 CBE401.1 Cable
Fig. 8-12 CBE401.1 Cable
Highly flexible Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x
measuring module at an ES600 network module or at an ES592/ES593-D/ES595
interface module.
Cable includes reverse-polarity, load-dump protection and replaceable standard
fuse (MINI flat automotive fuse, quick-response, 3 A, 58 V).
Robust, waterproof and dust-proof (IP67).
Temperature rated for: -40 °C to +125 °C / -40 °F to +257 °F
Product Length Order number
CBE400.2-3 3 m F 00K 104 920
Product Length Order number
CBE401.1-0m5 0.5 m F 00K 106 128
