HD Temperature:

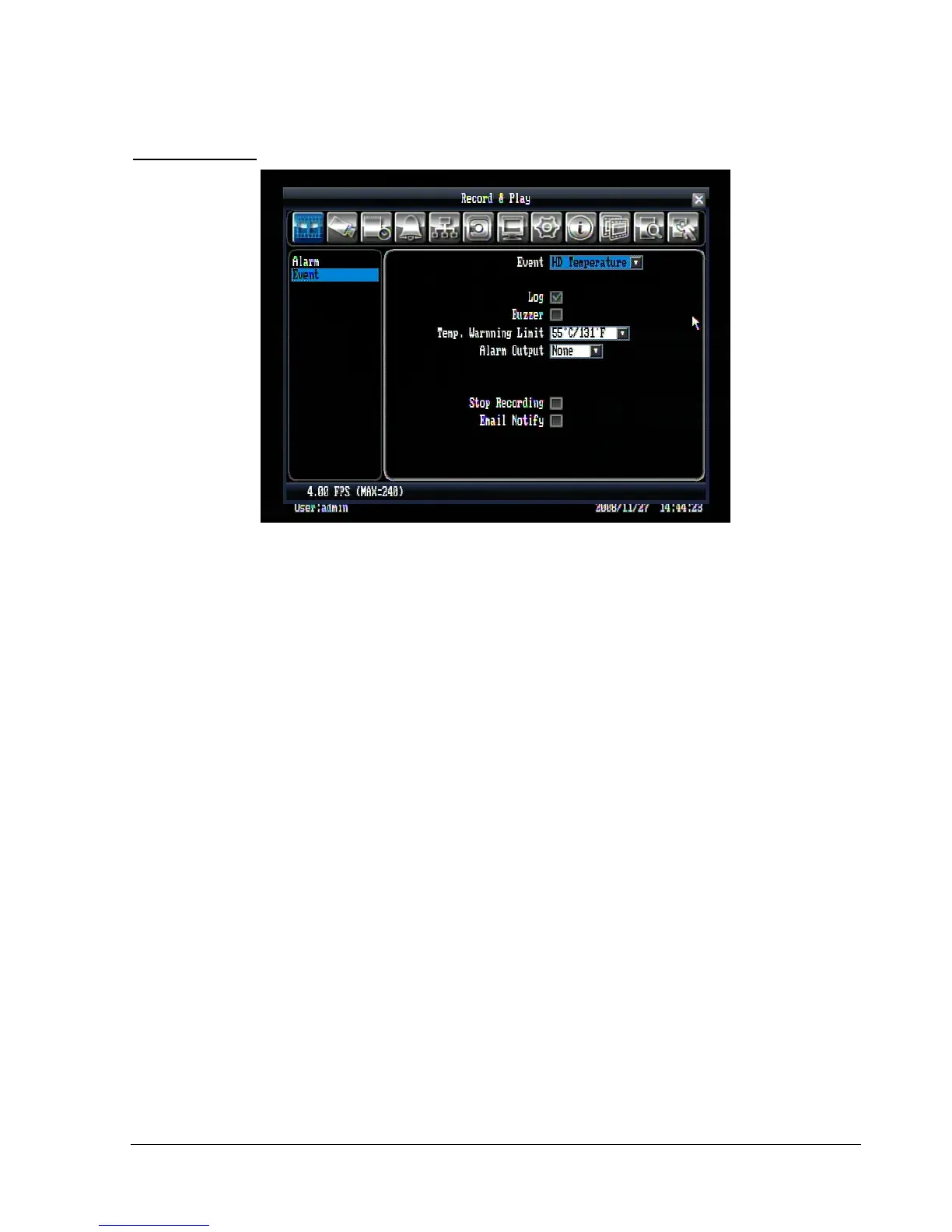

Figure 5.14 (Alarm & Event Menu – Event - HD Temperature)
Log: Check box to record events in the log.
Buzzer: Check box to enable buzzer when hard drive’s temperature is over the “Temp. Warning Limit”.
Temp. Warning Limit: Sets the trigger temperature for all other active settings in HD Temperature.
Choose from 55C /131F, 60C /140F, or 65C /149F.
Alarm Output: This will transmit a signal to another device. It can be set to either “NONE” (not activated)
or “1” (output signal 1 transmits).
Stop Recording: Check box to stop recording when HD’s temperature is over the “Temp. Warning Limit”.
Email Notify: Check box to enable email notification function when HD’s temperature is over the “Temp.
Warning Limit”.
