6.9 Router or LAN Connection
Straight Through Ethernet Cable Pin outs:

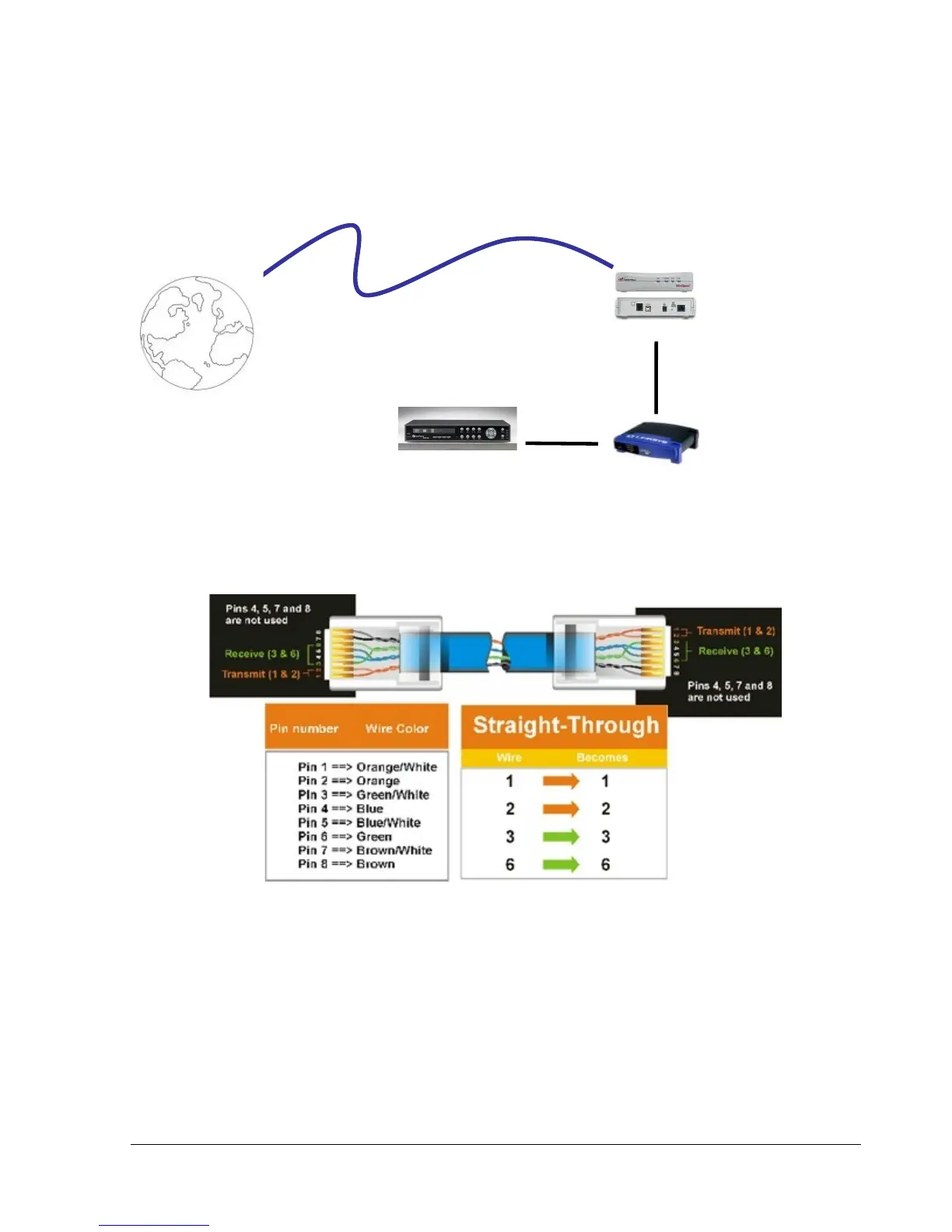

The Figure below shows the pin configurations for a straight cable.
Connection Procedure:
 The First step is to purchase or make a straight through cable. We recommend purchasing one if
you have never made a straight through cable. Please remember you can not use a cross-over
network cable for this application
 Once you have a straight through cable plug one end into the LAN port on the back of the recorder
and the other into the router.
Cat 5
Straight Through
Cable
Internet
Hi-speed modem
DVR
Router
