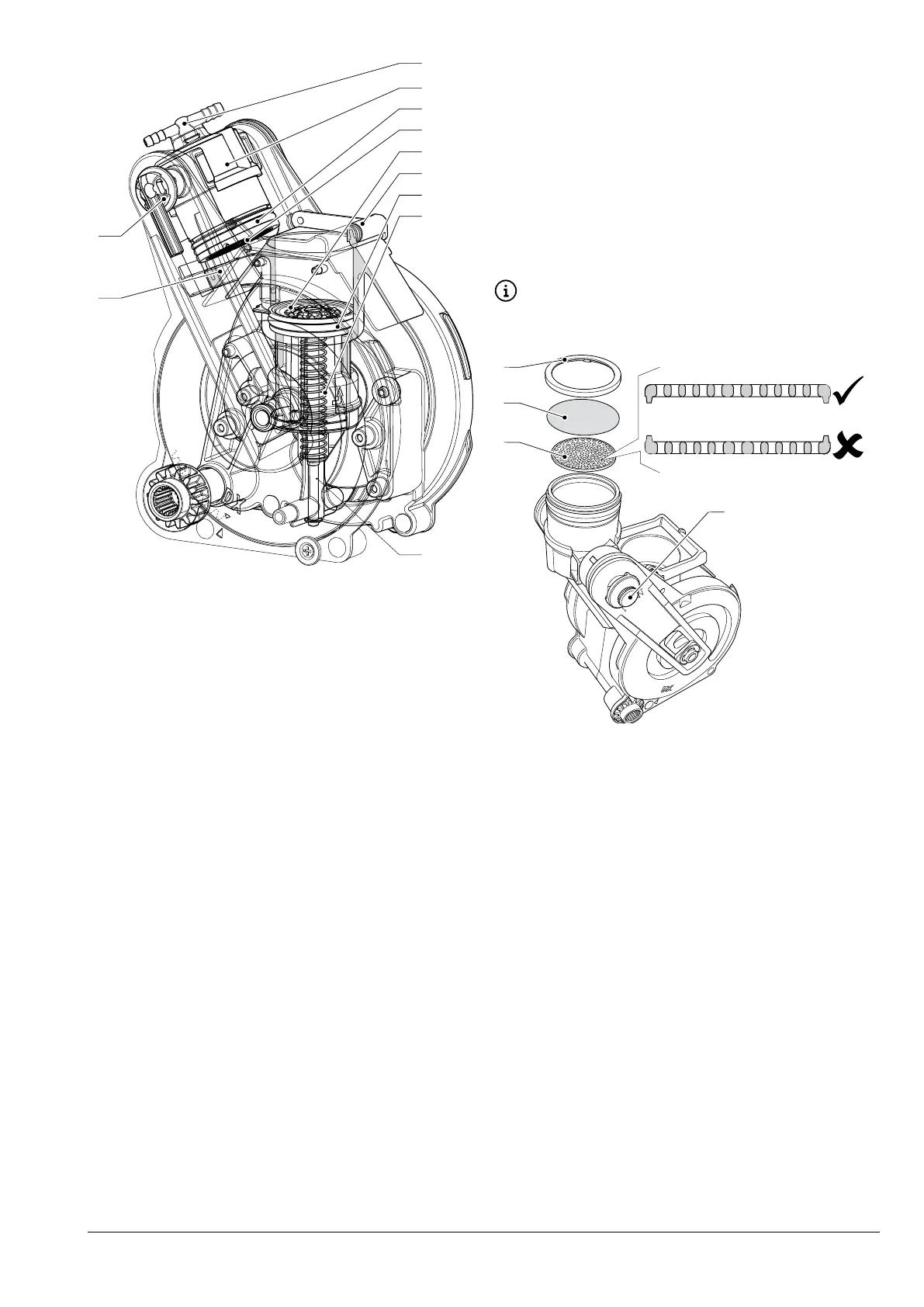

Fig. 39
1. Upper scraper
2. Espresso nozzle
3. Fresh Brew nozzle
4. Upper piston
5. Upper piston seal
6. Upper filter
7. Lower filter
8. Lower scraper
9. Lower piston seal
10. Lower piston spring
11. Piston rod
rEmoviNg/ rEplaciNg tHE uppEr filtEr
aND sEal
In order to remove or replace the upper

1. Unscrew the side key’s fixing screw.
2. Rotate the upper piston upwards.
3. Remove and replace the upper seal.
4. Unscrew the sealing ring to remove the
upper filter.
-

upwards.
1
2
3
4
Fig. 40
1. Sealing ring
2. Upper piston filter
3. Upper piston filter support
4. Correct position of the filter support
5. Side key fixing screw
