04-2017 5325 00 65

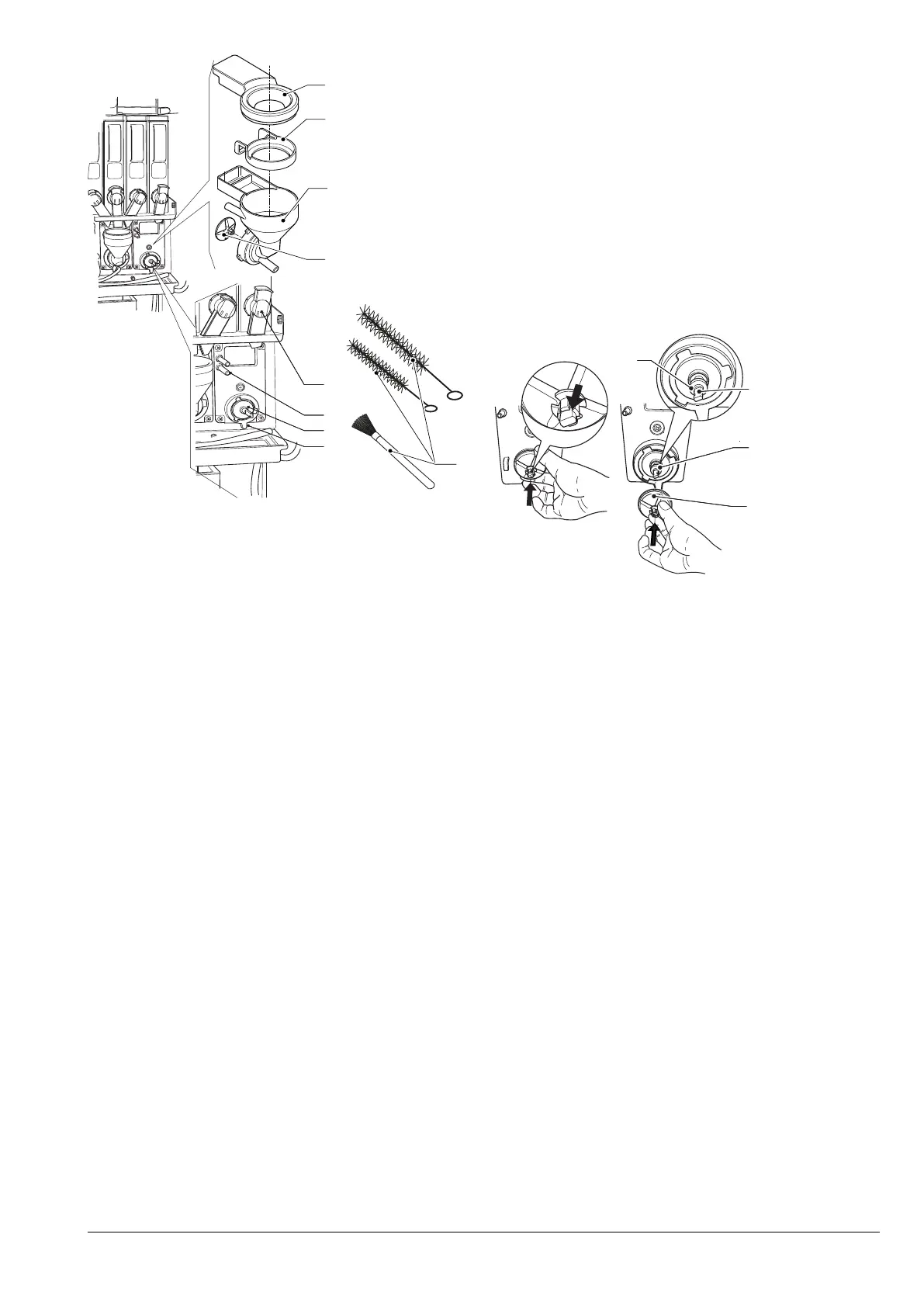

Fig. 42
1. Powder funnel
2. Splash guard ring
3. Water conveyor
4. Mixer fan
5. Powder nozzle
6. Water inlet nozzle
7. Stuffing box seal
8. Mixer fixing flange
9. Brushes for cleaning hoses and “ splash zone “
mixEr
For appliances that dispense instant bever-
ages, remove the components as follows:
1. Disconnect the hoses from the mixer
connections.
2. Turn the mixer locking ring anticlockwise
and remove the mixer.
Take special care to fully lock it when
reassembling it;
3. Separate the instant powder funnel, the
powder tray and water funnel.
4. Remove the fans; pull gently to free them.
2
Fig. 43
1. Fan
2. Stuffing box seal
3. Shaft discharge
5. Dip the parts for approximately 20 min-
utes in a recipient containing the previ-
ously-prepared sterilising solution.
Wash all the components with sterilising
products (follow the dosage indicated
by the manufacturer), being careful to
mechanically remove the residues and
visible films using brushes and swabs if
necessary.
6. Check the condition of the motor mixer
shaft’s sealing gasket.
Replace it if it is worn, torn or has lost its
elasticity.
