Exakt 312 - Right Side View

Description of the unit
Edition 10_2010 - 38891EN-900-AB
19
Right side view

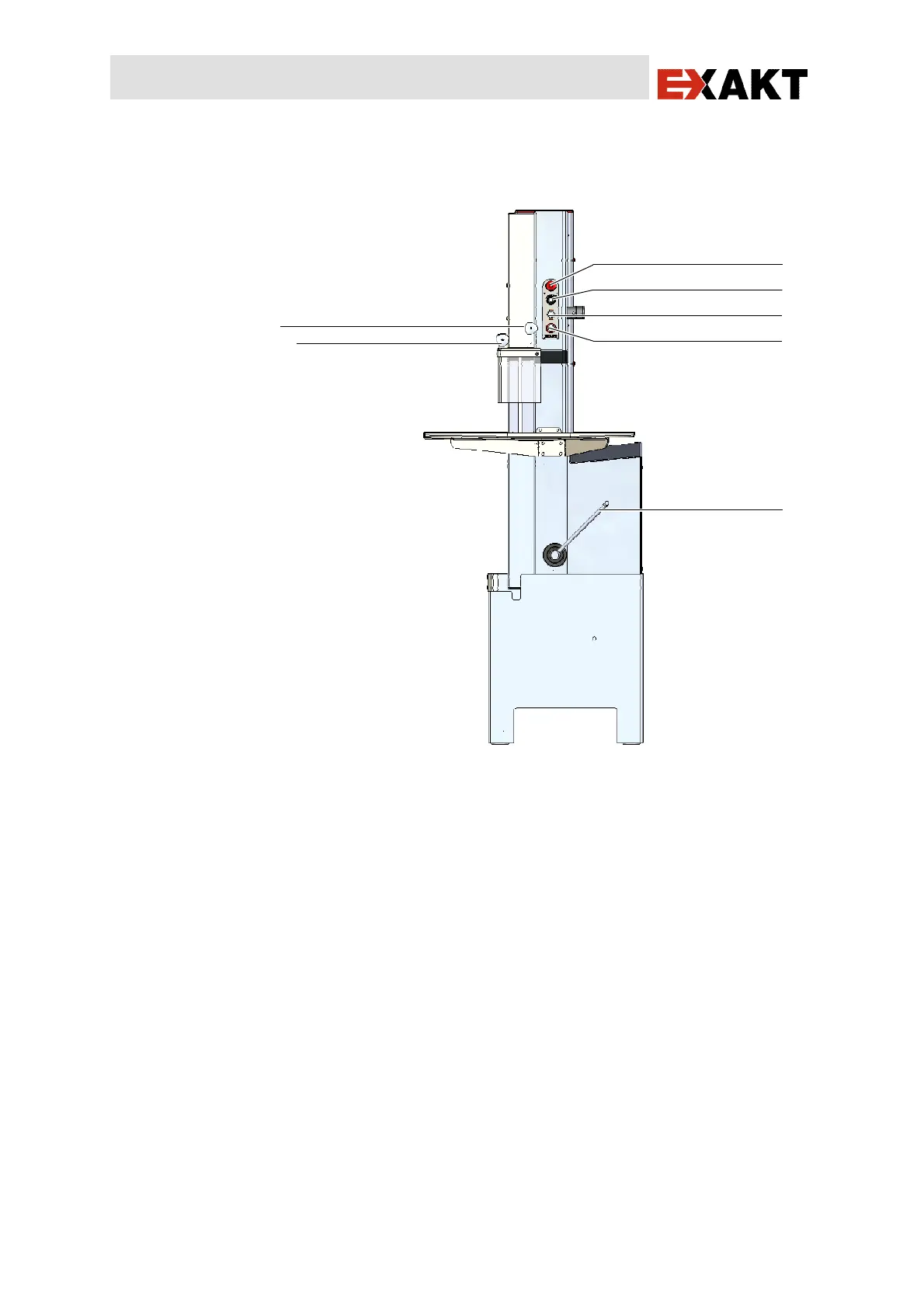

Abb. 3 Right side of unit
14 Emergency-stop pushbutton to stop the cutting band within
approx. 4 seconds
15 Cutting band speed control
16 Start button to start the cutting band
17 Stop button to stop the cutting band after 6 seconds
18 Tensioning lever for tensioning and relieving the tension on the
cutting band
19 Clamping bolt for the top cutting band guide
19a Clamping bolt for the splash guard
18
17
14
16
15
19
19a
