Installation
Edition 10_2010 - 38891EN-900-AB
30

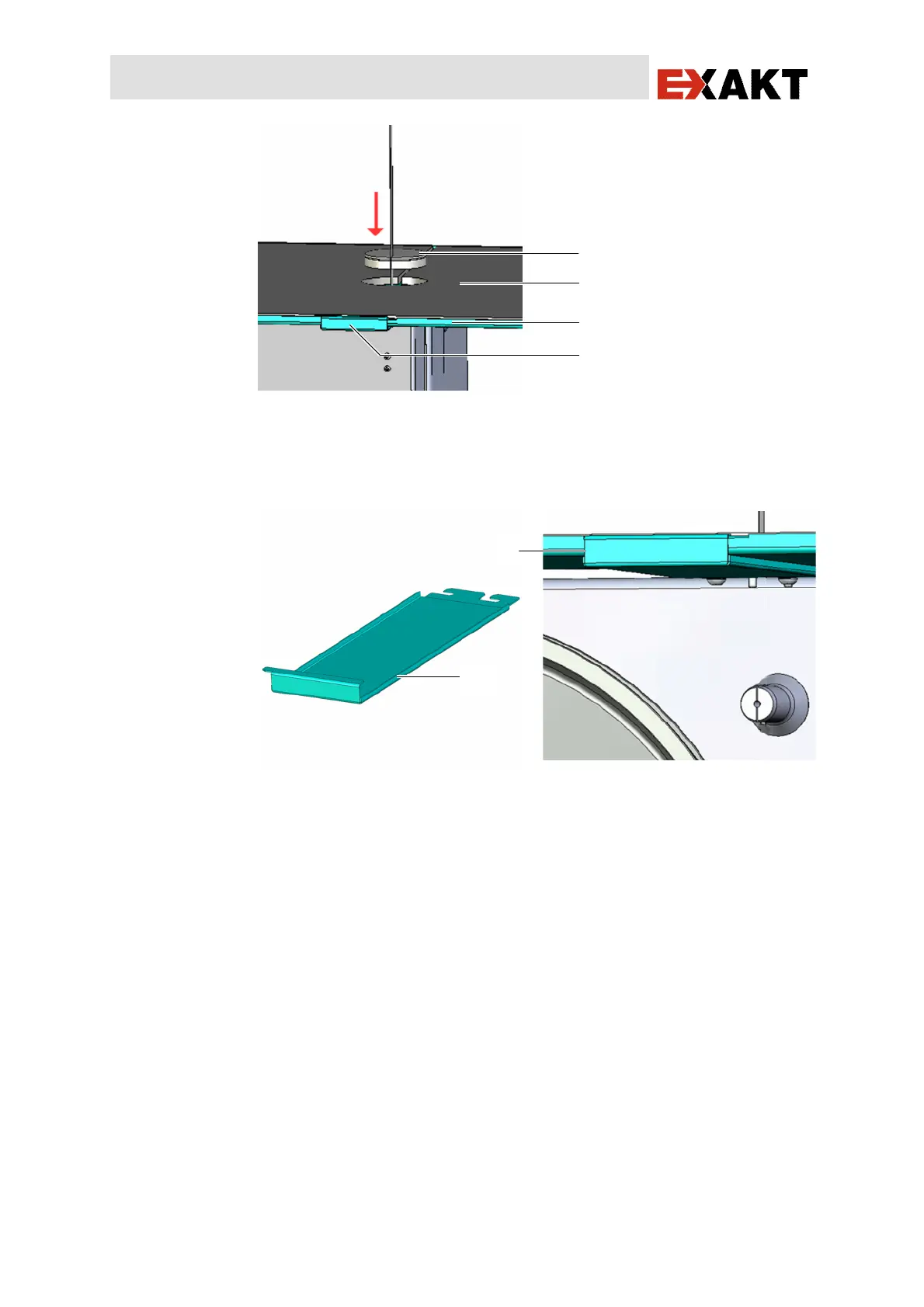

Abb. 19 Band guide, work table
u Insert the work table's cutting band guide 5 from above into the work
plate – the slot opening points to the front.
Abb. 20 Run-off plate Abb. 21 Run-off plate fitted
u Attach the run-off plate 7 under the work table tray 6. While doing so
slide the run-off plate into the guide grooves provided.
Mounting the splash guard
Note There are mounting lugs on the top door for the splash guard. A splash
guard for the front is included in the scope of delivery. The splash guard
comprises a stainless-steel bracket with a Makrolon screen:
u Fit the splash guard to the mounting lugs. Fix using the locking knob
on the splash guard.
