Installation
Edition 10_2010 - 38891EN-900-AB
23

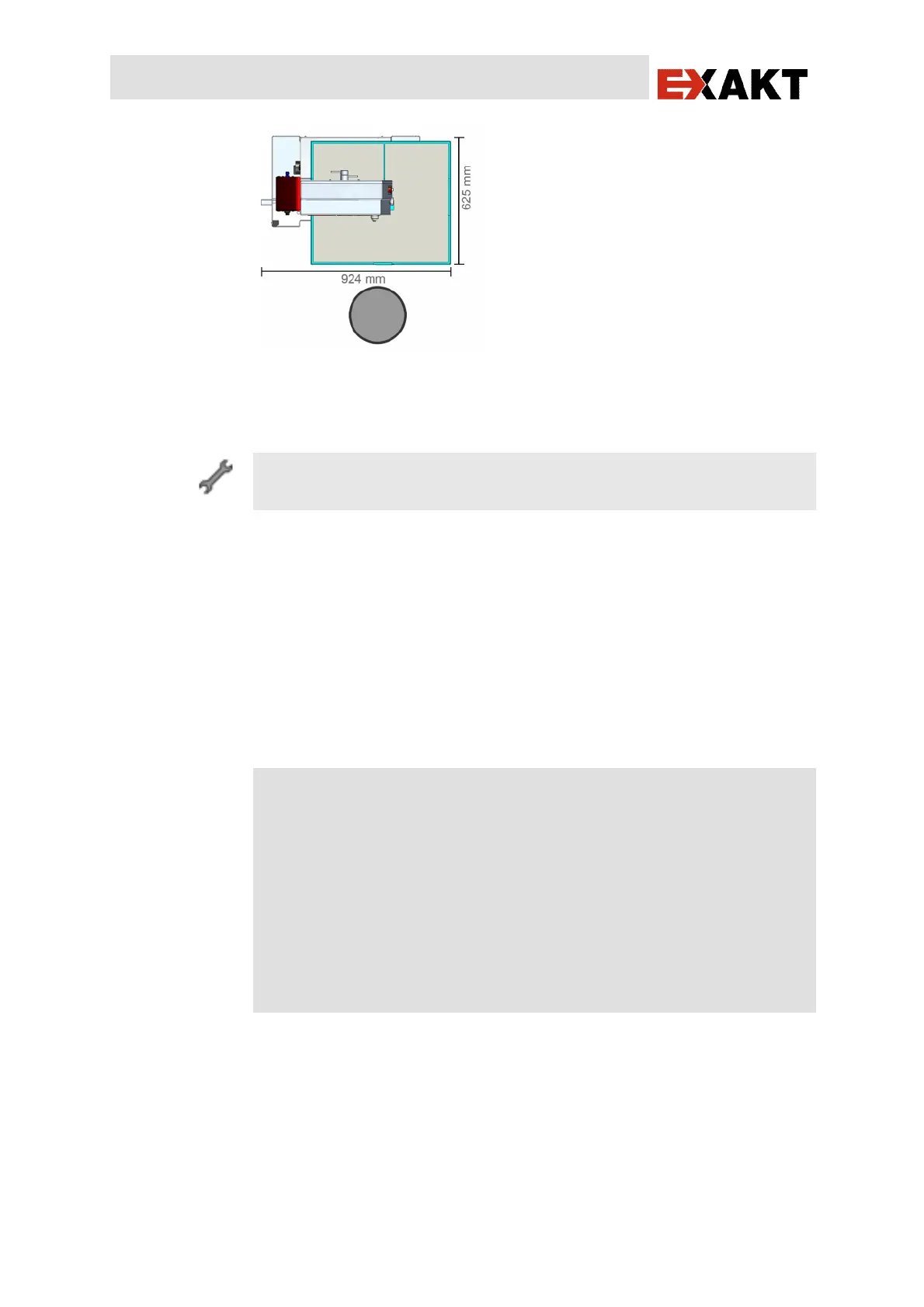

Abb. 6 Top view – dimensions and workplace EXAKT 312
5.3 Installing the EXAKT 312
You will need an open-end spanner AF 17 and the spirit level supplied to
be able to undertake this step.
The EXAKT 312 diamond pathology saw is setup as follows:
u Place the EXAKT 312 on a flat surface.
u Adjust the adjustment feet using the open-end spanner AF 17 to level
out any unevenness.
u Place the spirit level on the base plate longitudinally and cross-wi
check the EXAKT 312 is level.
u Re-adjust adjustment feet if necessary.
5.4 Assembly of the unit
The following subjects are described in this section:
• Assembly of the work table, 1st part
• Fitting the top pulley
• Fitting the cutting band
• Centring the cutting band
• Fitting the doors
• Assembly of the work table, 2nd part
• Mounting the splash guard
